Default cylinder screw torque specs.

Hello all, trying to find out the torque specs for the cylinder screws on my 2000 883 sporty. they're kind of rusty, so I figured I'd changed them. is this pretty straight forward, or not? Thanks
Reply With Quote
  #2
Old 25th August 2019
Toejam503's Avatar
Toejam503 Toejam503 is offline
Air-Cooled Forever

Join Date: May 2010
Location: Dakota Territory
Posts: 2,785
Sportster/Buell Model: XL 1200 C
Sportster/Buell Year: 2006
Sportster/Buell Model #2: (Prev.Own)XLH Milw.Spec.
Sportster/Buell Year #2: 1981
Reputation: 5081829
Toejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond repute
Default

Welcome to the forum.. Let me start off by saying that a service manual is a "must have" if you are planning to do any assembly/disassembly on your bike. There is not only torque specs in them but, most important, torque sequences.
Reply With Quote
  #3
Old 25th August 2019
bustert's Avatar
bustert bustert is offline
XL FORUM TEAM MEMBER

Join Date: Jul 2008
Posts: 9,679
Sportster/Buell Model: 1200s
Sportster/Buell Year: 2001
Sportster/Buell Model #2: xlch
Sportster/Buell Year #2: 1974
Reputation: 3007574
bustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond repute
Default

also consider that some fasteners are torque first then so many degrees rotation. this is based of stretch and not torque force which can vary for many reasons and i believe the bolts are such
FSM please

one OUCH!!!! to avoid is oil on the threads can lead to false reading and/or cracked parts
FSM please

Last edited by bustert; 28th August 2019 at 01:59.. Reason: typo
Reply With Quote
  #4
Old 30th August 2019
Scuba10jdl's Avatar
Scuba10jdl Scuba10jdl is offline
Senior Chief Harley Engineer 1st Class

Join Date: Dec 2010
Location: Columbus, Ohio
Posts: 1,369
Sportster/Buell Model: XLH883/1250
Sportster/Buell Year: 2002
Sportster/Buell Model #2: XLCH 1000
Sportster/Buell Year #2: 1972
Reputation: 541457
Scuba10jdl has a reputation beyond reputeScuba10jdl has a reputation beyond reputeScuba10jdl has a reputation beyond reputeScuba10jdl has a reputation beyond reputeScuba10jdl has a reputation beyond reputeScuba10jdl has a reputation beyond reputeScuba10jdl has a reputation beyond reputeScuba10jdl has a reputation beyond reputeScuba10jdl has a reputation beyond reputeScuba10jdl has a reputation beyond reputeScuba10jdl has a reputation beyond repute
Default

Quote:
Originally Posted by bustert View Post
one OUCH!!!! to avoid is oil on the threads can lead to false reading and/or cracked parts
FSM please
Except for Evo head bolts. Lube the threads of the bolt and stud, and flange surface, with a light coat of oil. If not, you'll get way undertorque on the head bolts.

Don't overdo it though, no need to hydrolock it.
__________________
http://i.imgur.com/Oe4Ttw0.pnghttps://i.imgur.com/AFv3AMo.jpg?1
2002 XLH883/HAMMER1250 - 1972 XLCH 1000 - Few things in life are as satisfying as riding a Sportster with no destination in mind.
Reply With Quote
  #5
Old 30th August 2019
60Gunner's Avatar
60Gunner 60Gunner is offline
Chief of Security

Join Date: Sep 2017
Location: United States
Posts: 2,323
Sportster/Buell Model: 1200/1250C
Sportster/Buell Year: 05
Reputation: 2720294
60Gunner has a reputation beyond repute60Gunner has a reputation beyond repute60Gunner has a reputation beyond repute60Gunner has a reputation beyond repute60Gunner has a reputation beyond repute60Gunner has a reputation beyond repute60Gunner has a reputation beyond repute60Gunner has a reputation beyond repute60Gunner has a reputation beyond repute60Gunner has a reputation beyond repute60Gunner has a reputation beyond repute
Default

Quote:
Originally Posted by bustert View Post
also consider that some fasteners are torque first then so many degrees rotation. this is based of stretch and not torque force which can vary for many reasons and i believe the bolts are such
FSM please

one OUCH!!!! to avoid is oil on the threads can lead to false reading and/or cracked parts
FSM please
These do require a thin coating of oil. Key word being thin. And as was mentioned, there's a specific sequence to torqueing these down.
Are you leaving the old gaskets?
__________________
05 1200/1250C/Hammer 570 Cams/E1 clutch kit +15% spring
TC88A Gunner's V00D00 map/DCPR7E/Taylor Pro 8mm
S&S Premium Lifters/KhromeWerks HP Plus 3" slip ons
HSR42 25 pilot 2 turns Y8 needle jet 97 needle 2nd groove 170 main
Dragtron II AC K&N filter/VR1 20W50/Spectro 85wt Primary Oil
Max torque 87.7@4400rpm/max hp 86.8@5600rpm

Reply With Quote
  #6
Old 30th August 2019
ReddTigger's Avatar
ReddTigger ReddTigger is offline
XL FORUM LIFE MEMBER

Join Date: Aug 2005
Location: MARY Lund, YUK !
Posts: 15,464
Sportster/Buell Model: XLH-1208
Sportster/Buell Year: 1997
Reputation: 2599297
ReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond repute
Default

Quote:
Originally Posted by biker551 View Post
Hello all, trying to find out the torque specs for the cylinder screws on my 2000 883 sporty. they're kind of rusty, so I figured I'd changed them. is this pretty straight forward, or not? Thanks

if you're talking about the head bolts, those are the 12 point shanked

like these..




then you will need to replace the head gasket at a mininum.


if you're talking about the studs.



like this



then you are going to need base gaskets as well.



the studs also should come with lock patch on them otherwise use a red loctite.



cylinder head bolt torque specifications typically rely on the direction for the head gasket manufacturer.. Cometic, HD, james have their own specs.

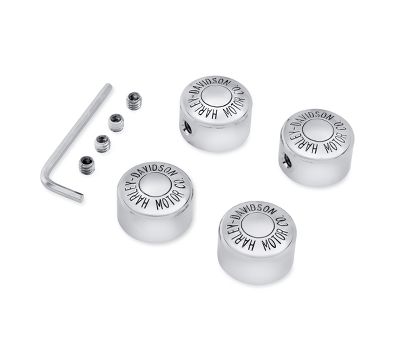

if they're just ugly. put a cap on them for a lot less money and headache..



__________________
States I've Ridden in

71.3 hp 70.8 tq

1208cc 11.09:1 (Wiseco 10° Dome 10.5:1 .010 over) ,Screamin Eagle Dual Plug Heads (10° 61cc), Original SE A/C, Vance & Hines Straight Shots w/ Custom Baffles. SE 6800 ign, Dual BREMBO brakes/ Pirelli Night Dragon MU85-16 Rear - 100/90-19 Front. Progressive Springs & 412 HD 13½" Chrome Shocks, 5½" pullback riser w/ "reddtigger mount", Stebel Nautilus Compact Air horn, Mustang Vintage Super Wide Touring Seat, Alto Carbonite Clutch
Reply With Quote
  #7
Old 31st August 2019
rejeanprimeau's Avatar
rejeanprimeau rejeanprimeau is online now
XL FORUM TEAM MEMBER

Join Date: Jun 2011
Location: On a farm
Posts: 6,121
Sportster/Buell Model: XL77.2R
Sportster/Buell Year: 2006
Reputation: 2344938
rejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond repute
Default

No leak, don't touch, cosmetic, use a little silver nail polish.
Reply With Quote
  #8
Old 31st August 2019
John Harper John Harper is offline
Master Custom Bike Builder

Join Date: Apr 2012
Posts: 3,303
Sportster/Buell Model: XLH 883
Sportster/Buell Year: 1991
Reputation: 1789736
John Harper has a reputation beyond reputeJohn Harper has a reputation beyond reputeJohn Harper has a reputation beyond reputeJohn Harper has a reputation beyond reputeJohn Harper has a reputation beyond reputeJohn Harper has a reputation beyond reputeJohn Harper has a reputation beyond reputeJohn Harper has a reputation beyond reputeJohn Harper has a reputation beyond reputeJohn Harper has a reputation beyond reputeJohn Harper has a reputation beyond repute
Default

Quote:
Originally Posted by rejeanprimeau View Post
No leak, don't touch, cosmetic, use a little silver nail polish.
+1

You can only get at two on each cylinder, without removing the rocker box assembly as well. Not worth the trouble unless you have other issues.

I'll bet mine are a lot more rusty than yours, after being on the coast for 29 years. I call it "patina."

John
