  #1
Old 3rd April 2012
markbro markbro is offline
Biker

Join Date: Apr 2012
Posts: 3
Sportster/Buell Model: iron head sportster
Sportster/Buell Year: 1979
Reputation: 10
markbro is an unknown quantity at this point
Default oil line routing 79 ironhead

hello . can anybody help me with the oil line routing on a 79 ironhead sporty.i have a stock oil tank ..i only see two nipples on the tank the bottom feed and one more thats up higher on the tank. i understand the bottom nipple feeds direct to the pump..then what?? i have a cam cover vent and a return comming from the pump .but only one spot on left on tank ..any ideas ..its been apart for 6 year .i was told all the years were a bit different .thanks ..mark
Reply With Quote
  #2
Old 3rd April 2012
ironheadjunkie's Avatar
ironheadjunkie ironheadjunkie is offline
Drag Race Champion

Join Date: Jun 2011
Posts: 382
Sportster/Buell Model: XLCH Sportster
Sportster/Buell Year: 1961
Reputation: 1977
ironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura about
Default oil line

Quote:
Originally Posted by markbro View Post
hello . can anybody help me with the oil line routing on a 79 ironhead sporty.i have a stock oil tank ..i only see two nipples on the tank the bottom feed and one more thats up higher on the tank. i understand the bottom nipple feeds direct to the pump..then what?? i have a cam cover vent and a return comming from the pump .but only one spot on left on tank ..any ideas ..its been apart for 6 year .i was told all the years were a bit different .thanks ..mark
The bottom fitting (oil feed) should go to the rear of the oil pump, and the top fitting (oil return) should go to the front of the oil pump. The vent (should be at the front of the cam cover) will go to the air filter. Read up a little here:
http://xlforum.net/forums/s...32#post1960632
__________________
You can't drink all day, if you don't start in the morning.
Reply With Quote
  #3
Old 3rd April 2012
nikki's Avatar
nikki nikki is offline
Senior Custom Bike Builder

Join Date: Oct 2010
Posts: 2,595
Sportster/Buell Model: xls roadster
Sportster/Buell Year: 1982
Reputation: 12394
nikki is a glorious beacon of lightnikki is a glorious beacon of lightnikki is a glorious beacon of lightnikki is a glorious beacon of lightnikki is a glorious beacon of lightnikki is a glorious beacon of lightnikki is a glorious beacon of lightnikki is a glorious beacon of lightnikki is a glorious beacon of lightnikki is a glorious beacon of lightnikki is a glorious beacon of light
Default

Quote:
Originally Posted by ironheadjunkie View Post
The bottom fitting (oil feed) should go to the rear of the oil pump, and the top fitting (oil return) should go to the front of the oil pump. The vent (should be at the front of the cam cover) will go to the air filter. Read up a little here:
http://xlforum.net/forums/s...32#post1960632
ironheadjunkie wrong vent I think he is talking about is the one in the back of the cam case, that one should mount fairly high on the oil tank , Nikki
__________________
the difficult can be done immediatey the impossible takes a little longer
Reply With Quote
  #4
Old 3rd April 2012
Smerch's Avatar
Smerch Smerch is offline
Chief Harley Engineer

Join Date: May 2010
Posts: 550
Sportster/Buell Model: XLH
Sportster/Buell Year: 1979
Other Motorcycle Model: Heritage Softail
Other Motorcycle Year: 2003
Reputation: 41601
Smerch is a splendid one to beholdSmerch is a splendid one to beholdSmerch is a splendid one to beholdSmerch is a splendid one to beholdSmerch is a splendid one to beholdSmerch is a splendid one to beholdSmerch is a splendid one to beholdSmerch is a splendid one to beholdSmerch is a splendid one to beholdSmerch is a splendid one to beholdSmerch is a splendid one to behold
Default

The fitting at the lower right in this pic is the gravity feed for the inlet side of the oil pump. The upper right fitting is for the oil return from engine coming from the scavenge side of the pump. The small elbow on top is the tank vent. On mine, it has a hose attached but I can't see where it goes. Possibly to the cam chest.

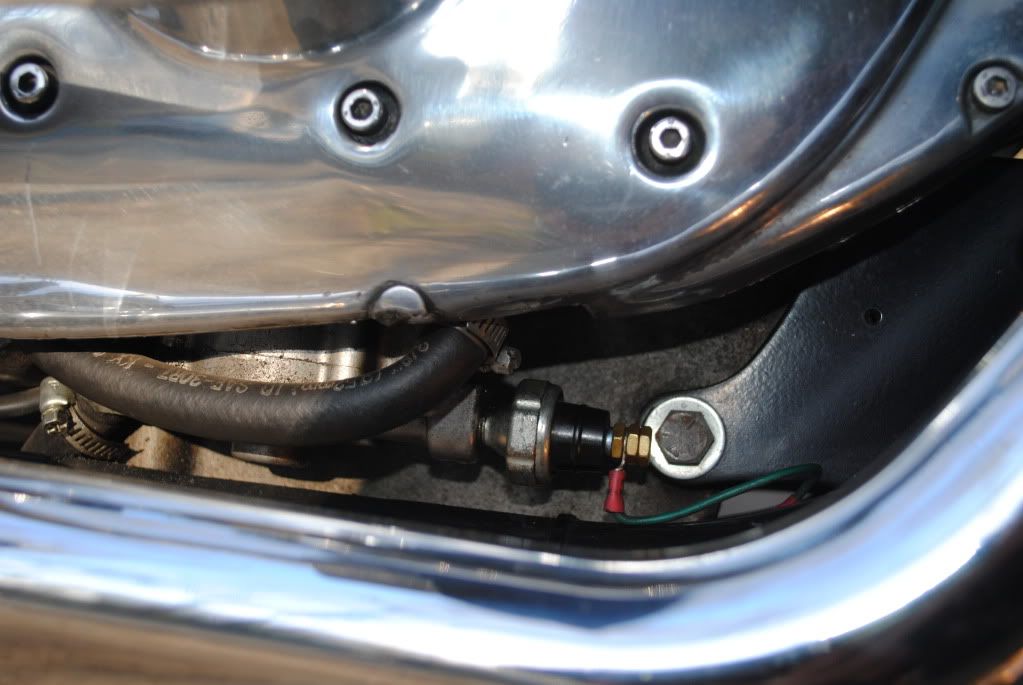

The return line goes onto the 90 degree fitting just above the oil pressure switch.
The feed line is at the back of the pump, attached to the 45 degree fitting.

Reply With Quote
  #5
Old 3rd April 2012
ironheadjunkie's Avatar
ironheadjunkie ironheadjunkie is offline
Drag Race Champion

Join Date: Jun 2011
Posts: 382
Sportster/Buell Model: XLCH Sportster
Sportster/Buell Year: 1961
Reputation: 1977
ironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura aboutironheadjunkie has a spectacular aura about
Default oil lines

Quote:
Originally Posted by nikki View Post
ironheadjunkie wrong vent I think he is talking about is the one in the back of the cam case, that one should mount fairly high on the oil tank , Nikki
opps, sorry had'nt finished my first cup of coffee for the morning. your right nikki, I was thinking of the foo-foo valve.
Reply With Quote
  #6
Old 4th April 2012
hogmania hogmania is offline
Chief Harley Engineer

Join Date: Oct 2010
Location: King
Posts: 525
Sportster/Buell Model: xlh
Sportster/Buell Year: 1980
Sportster/Buell Model #2: xlh
Sportster/Buell Year #2: 1977
Reputation: 1595
hogmania has a spectacular aura abouthogmania has a spectacular aura abouthogmania has a spectacular aura abouthogmania has a spectacular aura abouthogmania has a spectacular aura abouthogmania has a spectacular aura abouthogmania has a spectacular aura abouthogmania has a spectacular aura abouthogmania has a spectacular aura abouthogmania has a spectacular aura abouthogmania has a spectacular aura about
Default

my 80 has a oil filter (don't know if the 79 has one or not) the return line from the oil pump goes to the filter and then from the filter to the top of the oil tank. The vent which is the elbow on top of the tank goes to the cam chest just in front of the chain sprocket it is also a smaller dia. hose than the other 2 lines. the hose fitting on the cam cover at the generator goes to the air filter.
Reply With Quote
  #7
Old 4th April 2012
joey81iron85 joey81iron85 is offline
Drag Race Champion

Join Date: Feb 2011
Posts: 369
Sportster/Buell Model: ironhead
Sportster/Buell Year: 1981
Reputation: 2040
joey81iron85 is a jewel in the roughjoey81iron85 is a jewel in the roughjoey81iron85 is a jewel in the roughjoey81iron85 is a jewel in the roughjoey81iron85 is a jewel in the roughjoey81iron85 is a jewel in the roughjoey81iron85 is a jewel in the roughjoey81iron85 is a jewel in the roughjoey81iron85 is a jewel in the roughjoey81iron85 is a jewel in the roughjoey81iron85 is a jewel in the rough
Default

If ya need pics let me no I took lots when i tore mine down got pics of about everthing 79-81
Reply With Quote
  #8
Old 4th April 2012
markbro markbro is offline
Biker

Join Date: Apr 2012
Posts: 3
Sportster/Buell Model: iron head sportster
Sportster/Buell Year: 1979
Reputation: 10
markbro is an unknown quantity at this point
Default oil line 79 ironhead

you guys are so helpfull .thank you so much !!!! .im so excited to get my bike going !!now your pics and info makes this a pleasure to work on my bike tonite.. thanks again mark
Reply With Quote
  #9
Old 2nd August 2015
Robert Oregon's Avatar
Robert Oregon Robert Oregon is offline
Biker

Join Date: Sep 2014
Posts: 2
Sportster/Buell Model: XLH
Sportster/Buell Year: 67
Reputation: 10
Robert Oregon is an unknown quantity at this point
Default

Following this thread, the 67 XLH engine I'm replacing with what I think is a 79 is plumbed a bit different. WHAT I HAD on the 67 was tank to pump. NO RETURN on pump. Return fed off top back to tank. VENT was plumbed from later model vent fitting I installed above transmission.
Now what I HAVE ON THE REPLACEMENT. tank to supply fitting on the rear of the pump. Return will be from the fitting in the front of the pump to the tank.

Here is where I get crossed up. The VENT FITTING on the engine case at the cam chest is now unplumbed. And the transmission top vent goes to tank. Once I get this figured out we can move on to the other hole in the generator housing part of the cam chest cover
Reply With Quote
  #10
Old 29th May 2020
bobandy bobandy is offline
Biker

Join Date: Jun 2019
Posts: 7
Sportster/Buell Model: XLS 1000
Sportster/Buell Year: 1981
Reputation: 10
bobandy is an unknown quantity at this point
Default

Quote:
Originally Posted by joey81iron85 View Post
If ya need pics let me no I took lots when i tore mine down got pics of about everthing 79-81
Hi Dude any chance you still have those pics? thanks
