  #11
Old 25th June 2018
bustert's Avatar
bustert bustert is offline
XL FORUM TEAM MEMBER

Join Date: Jul 2008
Posts: 8,887
Sportster/Buell Model: 1200s
Sportster/Buell Year: 2001
Sportster/Buell Model #2: xlch
Sportster/Buell Year #2: 1974
Reputation: 1628938
bustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond repute
Default

super duper +1
someone had their tom terrific hat on!
Reply With Quote
  #12
Old 27th June 2018
yoshi's Avatar
yoshi yoshi is offline
Master Mechanic

Join Date: Dec 2011
Location: Birmingham UK
Posts: 276
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1971
Sportster/Buell Model #2: FXRS-SP
Sportster/Buell Year #2: 1985
Reputation: 124780
yoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud of
Default

Quote:
Originally Posted by class of 82 View Post
how long did the rod work out being?

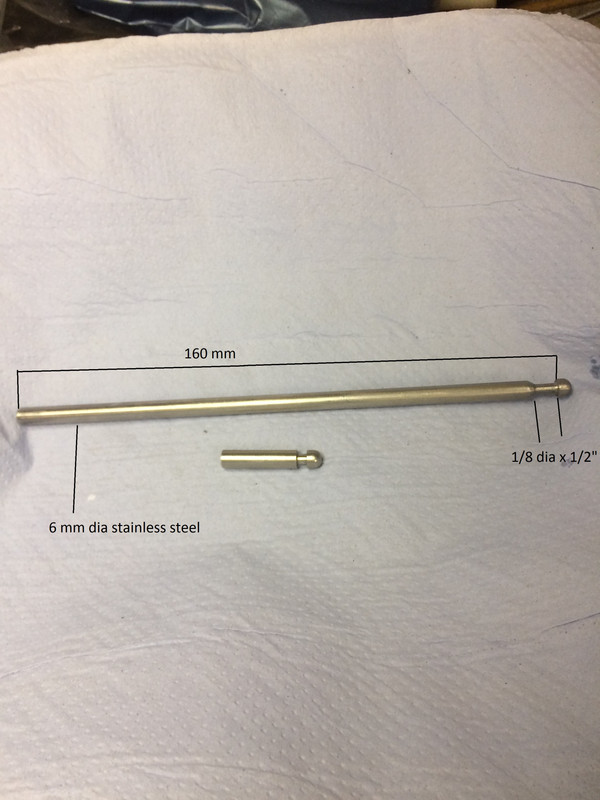

Sorry for the delay getting back to you. Dimensions as below.

Reply With Quote
  #13
Old 2nd July 2018
class of 82 class of 82 is offline
Know It All

Join Date: May 2016
Location: pasco county
Posts: 165
Sportster/Buell Model: sportster xlh
Sportster/Buell Year: 82
Sportster/Buell Model #2: sportster xlh
Sportster/Buell Year #2: 82
Other Motorcycle Model: KZ 550
Other Motorcycle Year: 82
Reputation: 19954
class of 82 is a name known to allclass of 82 is a name known to allclass of 82 is a name known to allclass of 82 is a name known to allclass of 82 is a name known to allclass of 82 is a name known to allclass of 82 is a name known to allclass of 82 is a name known to allclass of 82 is a name known to allclass of 82 is a name known to allclass of 82 is a name known to all
Default

THANK YOU! Yoshi

that's super. local machine shop is fixing me up now.
Reply With Quote
  #14
Old 3rd July 2018
mikethebike61's Avatar
mikethebike61 mikethebike61 is offline
Senior Custom Bike Builder

Join Date: Jan 2011
Location: Paradise
Posts: 2,584
Sportster/Buell Model: xlch
Sportster/Buell Year: 1977
Other Motorcycle Model: BMW K-1200/GT
Other Motorcycle Year: 2004
Reputation: 80482
mikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud of
Default

do you get any lateral movement of the slave cylinder?

What is the bore size of a H/D clutch M/C?
__________________
If loud pipes save lives....imagine what learning to ride will do for you.
Reply With Quote
  #15
Old 3rd July 2018
yoshi's Avatar
yoshi yoshi is offline
Master Mechanic

Join Date: Dec 2011
Location: Birmingham UK
Posts: 276
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1971
Sportster/Buell Model #2: FXRS-SP
Sportster/Buell Year #2: 1985
Reputation: 124780
yoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud ofyoshi has much to be proud of
Default

Quote:
Originally Posted by mikethebike61 View Post
do you get any lateral movement of the slave cylinder?

What is the bore size of a H/D clutch M/C?
No lateral movement I can detect. I don’t know the dimensions of a Harley clutch m/c, I’m using a Honda 17mm one.
Reply With Quote
  #16
Old 4th July 2018
mikethebike61's Avatar
mikethebike61 mikethebike61 is offline
Senior Custom Bike Builder

Join Date: Jan 2011
Location: Paradise
Posts: 2,584
Sportster/Buell Model: xlch
Sportster/Buell Year: 1977
Other Motorcycle Model: BMW K-1200/GT
Other Motorcycle Year: 2004
Reputation: 80482
mikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud ofmikethebike61 has much to be proud of
Default

11/16" for some HARLEYS...which is close enough for gov't work to 17mm
Reply With Quote
  #17
Old 16th November 2018
paulc paulc is offline
XL FORUM TEAM MEMBER

Join Date: May 2013
Location: East Midlands UK
Posts: 1,615
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1976
Sportster/Buell Model #2: XLCH
Sportster/Buell Year #2: 74/5
Reputation: 631518
paulc has a reputation beyond reputepaulc has a reputation beyond reputepaulc has a reputation beyond reputepaulc has a reputation beyond reputepaulc has a reputation beyond reputepaulc has a reputation beyond reputepaulc has a reputation beyond reputepaulc has a reputation beyond reputepaulc has a reputation beyond reputepaulc has a reputation beyond reputepaulc has a reputation beyond repute
Default

I'm planning on doing this conversion on my project bike next year. I tried to buy the Frando 14mm slave cylinder that yoshi used but it is no longer in production. They do make a 12.7mm slave cylinder which looks to be the same externally. Frando tell me it needs to be used with a 14mm master cylinder rather than the 17mm one used with the bigger slave.
I asked Venhill racing about this and they tell me the 12.7 slave/14mm master combination should work fine.

This is the 12.7 slave that is still available:



That photo is slightly mislabelled - the slave with the shorter rod is the 11NBS & the one with a longer rod is the 11NBL. As a custom rod, as described above by yoshi, needs to be machined for use in an IH, it shouldn't matter which one you buy.
This is what Venhill (who sell these in the UK) told me when I asked their opinion about whether the smaller bore slave and master would work:



So it seems that even though the slave cylinder yoshi used is no longer available suitable alternative parts are. The caveat is it hasn't been tried yet. When I get around to fitting it some time next year I'll post an update.
Paul
__________________
Reply With Quote
  #18
Old 16th November 2018
Pezed's Avatar
Pezed Pezed is offline
Biker

Join Date: Mar 2018
Location: Penzance, Cornwall.
Posts: 50
Sportster/Buell Model: '77' xlch
Sportster/Buell Year: 77
Reputation: 1343
Pezed has a spectacular aura aboutPezed has a spectacular aura aboutPezed has a spectacular aura aboutPezed has a spectacular aura aboutPezed has a spectacular aura aboutPezed has a spectacular aura aboutPezed has a spectacular aura aboutPezed has a spectacular aura aboutPezed has a spectacular aura aboutPezed has a spectacular aura about
Default

I'm pleased to see that there is an alternative to the 'billet' type hydro clutch actuator, and I do think that this looks the part, filling, as it does, the hole left by the redundant cable. Am I missing a point though? This method replaces the cable only, and still retains "the awful ramp and ball" arrangement, as somebody described it. What is the advantage of this method, mechanically speaking? I'm sold on the aesthetics, but that may not be enough for me to invest dolla in it.
__________________
Better a bottle in front of me than a frontal lobotomy.
Reply With Quote
