  #1
Old 6th February 2010
IronMick's Avatar
IronMick IronMick is offline
Rider Of The Iron Steed

Join Date: Dec 2003
Location: London, ON Canada
Posts: 32,226
Sportster/Buell Model: XLH
Sportster/Buell Year: 1978
Reputation: 1079200
IronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond repute
Default '77 & '78 Kick Support

Pics followed by description ...











Pipe is 1,1/4" OD. ID is larger than the 7/8" ID of the holes in the end fittings. I can feel with finger that the pipe has a larger ID than the holes in the fittings on either end. The pipe is probably 1" ID. So pipe is 1/8" thick.

The length of the pipe measured between the two end fittings measures 2,43/64"; so is probably 2,11/16".

The threaded hole in the smaller end fitting is 1/4", same thread as cover bolts. The bolt that goes thru there is 1" in length. Center to center with pipe hole is 1,5/16".

The two unthreaded holes in the case end fitting are 3/8", center to center is 2,11/16". Center to center 1,7/8" and 1,1/8" with the big hole. Check these against the bolts that it mounts to on the case, and against the hole for the shaft.

Cutout hole is 5/8" ID.

Really needs a CAD or whatever drawing to accurately portray the shapes/dimensions of the end fittings.
__________________
Mick
IronHead Forever!

Visit Mick's WebSite
[And Check Out My Autobiog]

Last edited by IronMick; 28th May 2019 at 22:29..
Reply With Quote
  #2
Old 6th February 2010
Vermonter's Avatar
Vermonter Vermonter is offline
Chief Harley Engineer

Join Date: Jan 2010
Posts: 573
Sportster/Buell Model: XLH
Sportster/Buell Year: 1973
Other Motorcycle Model: 80XS650/71CL175/7?gs550
Reputation: 10391
Vermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of light
Default

that should help prevent any case cover cracking.
__________________
"If a law is unjust, a man is not only right to disobey it, he is obligated to do so." Thomas Jefferson
Reply With Quote
  #3
Old 7th February 2010
IronMick's Avatar
IronMick IronMick is offline
Rider Of The Iron Steed

Join Date: Dec 2003
Location: London, ON Canada
Posts: 32,226
Sportster/Buell Model: XLH
Sportster/Buell Year: 1978
Reputation: 1079200
IronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond repute
Default

This is a Harley Davidson part that was not included in original bikes from the factory. It is a fix they came up with because of the problem of breaking sprocket covers on these models. Hard to come by, so you may want to make your own. Which is the purpose of this post.
Reply With Quote
  #4
Old 7th February 2010
Hopper's Avatar
Hopper Hopper is offline
Senior Master Custom Bike Builder

Join Date: Dec 2007
Location: Australia
Posts: 9,370
Sportster/Buell Model: XLCH 1000
Sportster/Buell Year: 1977
Sportster/Buell Model #2: 75 motor in Norton frame.
Other Motorcycle Model: 42WLA 45, Harton, Narley
Other Motorcycle Year: 1942
Reputation: 256674
Hopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant future
Default

Back in the Iron Age, before CAD, we used to do drawings by crushing charcoal from the fire at the mouth of the cave and mixing it with our own blood to make ink and using a Dodo bird feather for a quill.




Link to bigger drawing here (I think!):
http://i249.photobucket.com/albums/g...ktcvr005-1.jpg

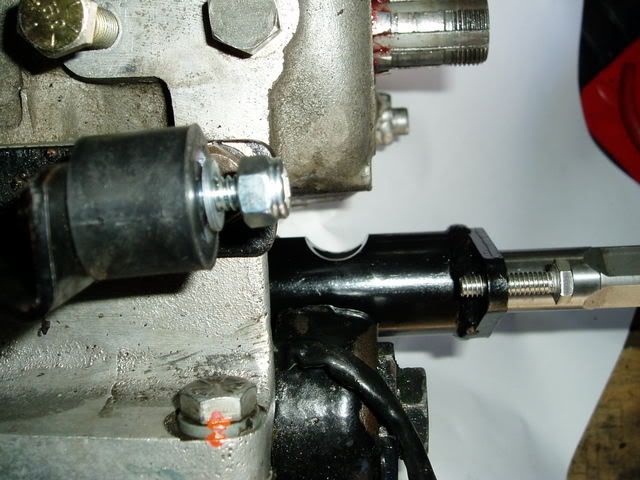

And not shown on the drawing is this stock divot cut out of the support tube to allow the oil supply line to run through there without being pinched. I had to grind a similar but not so severe divot a little further outboard too, to provide clearance for the 23-tooth sprocket.

__________________
In theory there is no difference between theory and practice. In practice there is.
Reply With Quote
  #5
Old 7th February 2010
66xlch 66xlch is offline
Master Bike Builder

Join Date: Dec 2008
Location: SOCAL
Posts: 2,072
Sportster/Buell Model: xlch
Sportster/Buell Year: 66
Sportster/Buell Model #2: 67 XLH, 63 XLCH
Sportster/Buell Year #2: 67
Other Motorcycle Model: FXRT
Other Motorcycle Year: 91
Reputation: 1931
66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about
Default

I love that part, and I dont know why they only did it for '77-'78s. I broke my '66 cover, and judging by all the welded early covers out there so have lots of others. I'm going to make one for my 'ch for sure.
Reply With Quote
  #6
Old 7th February 2010
Hopper's Avatar
Hopper Hopper is offline
Senior Master Custom Bike Builder

Join Date: Dec 2007
Location: Australia
Posts: 9,370
Sportster/Buell Model: XLCH 1000
Sportster/Buell Year: 1977
Sportster/Buell Model #2: 75 motor in Norton frame.
Other Motorcycle Model: 42WLA 45, Harton, Narley
Other Motorcycle Year: 1942
Reputation: 256674
Hopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant future
Default

Quote:
Originally Posted by 66xlch View Post
I love that part, and I dont know why they only did it for '77-'78s. I broke my '66 cover, and judging by all the welded early covers out there so have lots of others. I'm going to make one for my 'ch for sure.
Because the 77-78 sprocket cover mountings were even dickier than the earlier models, using 1/4" philips screws made from cheese metal instead of the earlier 5/16 or larger bolts.

See this thread here for how I welded a pad inside my early 77 sprocket cover for this support bracket to attach to. I imagine you could do similar to an earlier model.
This thread:
http://xlforum.net/forums/s...d.php?t=232588

It also shows how I built an extra support bracket from the top of the gearbox where the breather attaches to the top of the sprocket cover for extra support. Could be used on earlier models that break that aluminum mount tag off the top of the gearbox casing.
Reply With Quote
  #7
Old 7th February 2010
66xlch 66xlch is offline
Master Bike Builder

Join Date: Dec 2008
Location: SOCAL
Posts: 2,072
Sportster/Buell Model: xlch
Sportster/Buell Year: 66
Sportster/Buell Model #2: 67 XLH, 63 XLCH
Sportster/Buell Year #2: 67
Other Motorcycle Model: FXRT
Other Motorcycle Year: 91
Reputation: 1931
66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about66xlch has a spectacular aura about
Default

Yeah, I have one of your later covers in a box somewhere, and it is extra flimsy!
Reply With Quote
  #8
Old 7th February 2010
daler daler is offline
Biker

Join Date: Nov 2007
Posts: 24
Sportster/Buell Model: xlch
Sportster/Buell Year: 1977
Other Motorcycle Model: dyna wideglide
Other Motorcycle Year: 2004
Reputation: 18
daler is an unknown quantity at this point
Default

Quote:
Originally Posted by IronMick View Post
This is a Harley Davidson part that was not included in original bikes from the factory. It is a fix they came up with because of the problem of breaking sprocket covers on these models. Hard to come by, so you may want to make your own. Which is the purpose of this post.
Mick, I bought that part from Billscustomcycles.com last year. Seems to me it was about 15-20 bucks. When I installed it I drilled and tapped the 1/4 hole on the support bracket out to 5/16 and then used a 5/16 shoulder bolt for a tight fit thru the cover. Havn't broken a cover since.
Reply With Quote
  #9
Old 7th February 2010
IronMick's Avatar
IronMick IronMick is offline
Rider Of The Iron Steed

Join Date: Dec 2003
Location: London, ON Canada
Posts: 32,226
Sportster/Buell Model: XLH
Sportster/Buell Year: 1978
Reputation: 1079200
IronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond reputeIronMick has a reputation beyond repute
Default

Quote:
Originally Posted by daler View Post
Mick, I bought that part from Billscustomcycles.com last year ...
I got mine from NOSParts.nl. I think i paid at least twice what you did. I don't want to look!

Last edited by IronMick; 26th September 2013 at 12:35.. Reason: sp
Reply With Quote
  #10
Old 8th February 2010
Hopper's Avatar
Hopper Hopper is offline
Senior Master Custom Bike Builder

Join Date: Dec 2007
Location: Australia
Posts: 9,370
Sportster/Buell Model: XLCH 1000
Sportster/Buell Year: 1977
Sportster/Buell Model #2: 75 motor in Norton frame.
Other Motorcycle Model: 42WLA 45, Harton, Narley
Other Motorcycle Year: 1942
Reputation: 256674
Hopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant future
Default

Quote:
Originally Posted by daler View Post
I installed it I drilled and tapped the 1/4 hole on the support bracket out to 5/16 and then used a 5/16 shoulder bolt for a tight fit thru the cover..
Yes, I did that too, as well as drilling and tapping the two main mounting bolt holes so I could use 5/16" high-tensile allen head bolts instead of the cheesy 1/4 phillips head screws. Maybe a little bit of overkill - but I dont have estart so the kicker gets a lot of use.
Reply With Quote
