  #21
Old 27th August 2022
Magneto Sportster Magneto Sportster is online now
Master Custom Bike Builder

Join Date: Jun 2005
Posts: 3,478
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1969
Sportster/Buell Model #2: XLH
Sportster/Buell Year #2: 1960
Other Motorcycle Model: XLCH
Other Motorcycle Year: 1959
Reputation: 1044952
Magneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond repute
Default

Update: 8/27/22

I stopped by my buddy's shop yesterday and we searched for more parts to go with my '53 K Model project. I think we did pretty well:

Early shift lever, splined and threaded so no nut used on the pinch bolt:

[url=https://flic.kr/p/2nGKe5k]

Early coil cover standoffs with coarse threads:

[url=https://flic.kr/p/2nGMqUw]

Correct rear axle spacer. Notice the smaller flange on the inside:

[url=https://flic.kr/p/2nGMuei]

Model M-53 "bombsite" Linkert carburetor. Early K only.

[url=https://flic.kr/p/2nGF9hy]

Correct early K horn trumpet and power pack:

[url=https://flic.kr/p/2nGF9A9]

[url=https://flic.kr/p/2nGKeh9]

Saddlebags, correct for 1953:

[url=https://flic.kr/p/2nGF9GB]

[url=https://flic.kr/p/2nGLQmH]

Some original cables, levers, plug wires, and oil lines:

[url=https://flic.kr/p/2nGMup8]

[url=https://flic.kr/p/2nGKeey]

[url=https://flic.kr/p/2nGMr1Z]

[url=https://flic.kr/p/2nGMr9u]

[url=https://flic.kr/p/2nGF9DR]

K Model rear shock studs (notice the thin width of the hex area):

[url=https://flic.kr/p/2nGMugT]

Early K Model shocks:

[url=https://flic.kr/p/2nGF9tk]

Exhaust bracket:

[url=https://flic.kr/p/2nGLQ5W]

Parts gathering is moving along nicely! Hopefully I can begin some assembly before Autumn is over....
Reply With Quote
  #22
Old 27th August 2022
Captain Johnny Captain Johnny is offline
XL FORUM TEAM MEMBER

Join Date: Dec 2014
Location: Crossville, Tn.
Posts: 410
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1969
Other Motorcycle Model: Triumph Sprint 900
Other Motorcycle Year: 1998
Reputation: 498442
Captain Johnny has a reputation beyond reputeCaptain Johnny has a reputation beyond reputeCaptain Johnny has a reputation beyond reputeCaptain Johnny has a reputation beyond reputeCaptain Johnny has a reputation beyond reputeCaptain Johnny has a reputation beyond reputeCaptain Johnny has a reputation beyond reputeCaptain Johnny has a reputation beyond reputeCaptain Johnny has a reputation beyond reputeCaptain Johnny has a reputation beyond reputeCaptain Johnny has a reputation beyond repute
Default

Your buddy must have a helleva parts stash. Love those bags! Nice score.
__________________
"A kicker adds an enormous amount of cool class. You would have hot pretty young women hanging on you constantly. Men would be envious of that big thing sticking out of your bike. You would be on top of it all".........IronMick
Reply With Quote
  #23
Old 27th August 2022
IronHeadRon's Avatar
IronHeadRon IronHeadRon is offline
Chief Know It All

Join Date: Aug 2018
Location: Pacific NW
Posts: 442
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1969
Other Motorcycle Model: Honda Shadow
Other Motorcycle Year: 1986
IronHeadRon has disabled reputation
Default

Quote:
Originally Posted by Magneto Sportster View Post
I'm not sure I follow everything you are sayin, but my 900's cruise 65 mph with a 21 tooth in the front, no problem.

However, a '53 K is a 750 and come in somewhere around 30 horsepower in stock configuration. It will probably cruise along a 50 - 55 mph nicely. But that's just a guess. Also, it was supposed to be a joke.
Yeah, that's why I said ignore it all (unless it helps somebody think, I was using a rough rpm:mph conversion factor the book suggests for things which require little accuracy, so better to go tooth by tooth. I have before (still just unit conversion with more factors) but must've done something wrong.) The math should be easy to follow x/z × y/x = y/z and x/z × z/y = x/y, it just confuses some people when the x's y's and z's get replaced with realistic units like engineRevs, tireRevs, and minutes. but again, all that is mute points based on rough estimates on an entirely different machine, so all can be ignored

And totally agree that the top speed on either will be dictated by power and not redline (otherwise I'd be able to push into the 100's of mph on the ironhead)

I did all this before as my dad claimed similar shortcomings, and messed up some arithmetic. (He felt like he really had to "wind it up" but who knows what that means without a tach.)

Anyways, awsome project. Probably should've deleted (more complicating than explicatory) but now it's been quoted ..... hope that helps clarify my train of thought.

I've never been on the highway (was 11 the last time she was road worthy, and were triple checking everything) so I definitely agree I was mistaken at first EDIT: on a harley, I've pushed a little Honda Shadiw 500 over 100mph a few times, no balls up there, but on the right stretch if road she could do it. Used to put 150mi a day on her, part of the time with a busted leg and crutches, and well past comfortable riding season, but she was all I had):END

I am very interested in your oil slinger design and how it was modified for the xlch and if special is a reference to rarity or if it has a performance advantage
Reply With Quote
  #24
Old 27th August 2022
Magneto Sportster Magneto Sportster is online now
Master Custom Bike Builder

Join Date: Jun 2005
Posts: 3,478
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1969
Sportster/Buell Model #2: XLH
Sportster/Buell Year #2: 1960
Other Motorcycle Model: XLCH
Other Motorcycle Year: 1959
Reputation: 1044952
Magneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond reputeMagneto Sportster has a reputation beyond repute
Default

Quote:
Originally Posted by IronHeadRon View Post
Anyways, awsome project. Probably should've deleted (more complicating than explicatory) but now it's been quoted ..... hope that helps clarify my train of thought.

I am very interested in your oil slinger design and how it was modified for the xlch and if special is a reference to rarity or if it has a performance advantage
No need to delete anything, this is a "discussion" board. No worries.

The oil slinger was used on early XLCH's too. I believe 1963 was the first year for the big "washer" in place of the slinger on the Sportster, but I have have my parts book in front of me to say the year for sure.
Reply With Quote
  #25
Old 27th August 2022
brucstoudt's Avatar
brucstoudt brucstoudt is offline
Senior Master Custom Bike Builder

Join Date: May 2010
Location: Pottstown PA.
Posts: 15,880
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1960
Sportster/Buell Model #2: 883 C
Sportster/Buell Year #2: '03
Reputation: 1697834
brucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond repute
Default

the early oil seperator has no performance advantages.DR DICK referred to it as the power robbing daisy wheel.the factory discontinued it's use after '62.

Last edited by brucstoudt; 27th August 2022 at 22:20..
Reply With Quote
  #26
Old 27th August 2022
needspeed needspeed is offline
XL FORUM LIFE MEMBER

Join Date: May 2014
Posts: 1,895
Sportster/Buell Model: xlh
Sportster/Buell Year: 1974
Reputation: 1328451
needspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond repute
Default

Quote:
Originally Posted by IronHeadRon View Post
..I am very interested in your oil slinger design and how it was modified for the xlch and if special is a reference to rarity or if it has a performance advantage
I'm showing this link at the risk of cluttering this thread with a big discussion on oil separators. Not my intent.

Using a K model separator on your '69 would involve more than just putting one on the generator. The proximity of the separator to the cam cover is part of what makes it work and the early covers are different.

It wasn't better for performance as explained here.

http://xlforum.net/forums/showthread.php?t=1861965

The separator and gear appear to be one unit. A pic of sportster part # 31071-58 is shown in the thread. K models and '57 sportsters use part # 31071-52A.
Reply With Quote
  #27
Old 27th August 2022
brucstoudt's Avatar
brucstoudt brucstoudt is offline
Senior Master Custom Bike Builder

Join Date: May 2010
Location: Pottstown PA.
Posts: 15,880
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1960
Sportster/Buell Model #2: 883 C
Sportster/Buell Year #2: '03
Reputation: 1697834
brucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond repute
Default

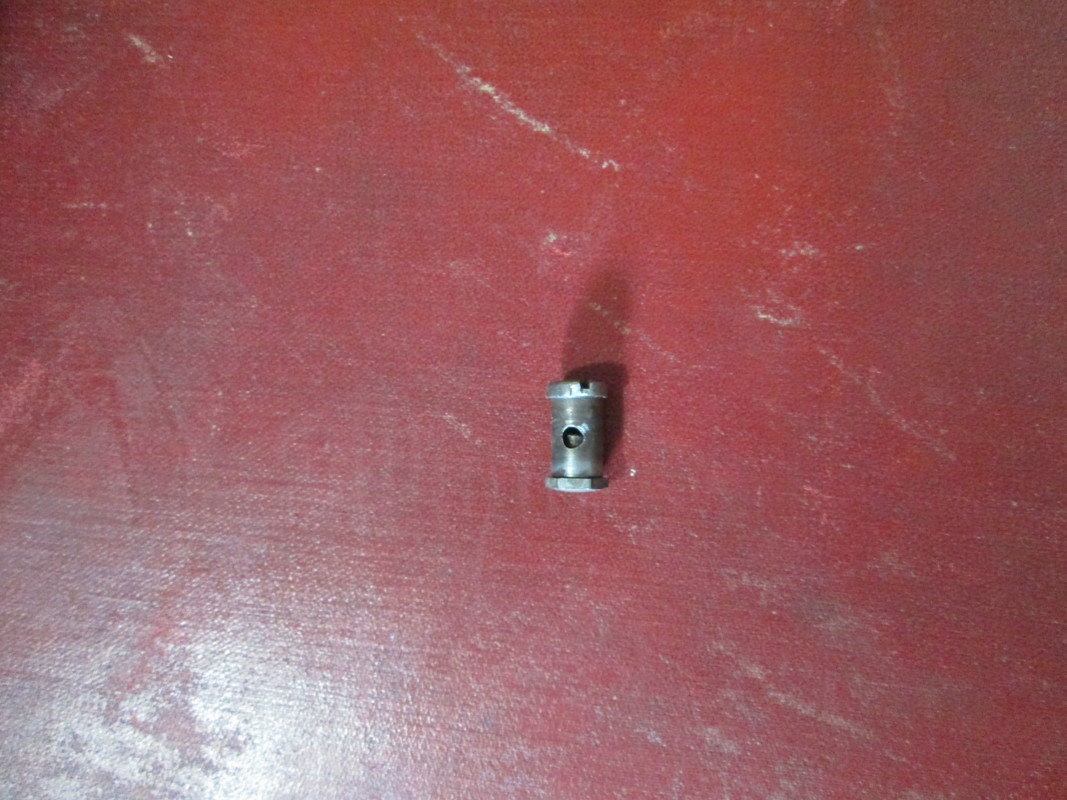

it looks like your recent clutch cable uses one of these early bushings this one came with my bike when i bought it 44yrs. ago.i went to newer levers when the early clutch lever broke.i've since repaired it and will be putting my early levers back on soon.i had to use heat and an impact driver to back out the screw on that part,super tight.i looked in my early parts books and don't see that type bushing shown.have you seen it on early XL models?
Reply With Quote
  #28
Old 27th August 2022
IronHeadRon's Avatar
IronHeadRon IronHeadRon is offline
Chief Know It All

Join Date: Aug 2018
Location: Pacific NW
Posts: 442
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1969
Other Motorcycle Model: Honda Shadow
Other Motorcycle Year: 1986
IronHeadRon has disabled reputation
Thumbs up

Quote:
Originally Posted by needspeed View Post
I'm showing this link at the risk of cluttering this thread with a big discussion on oil separators. Not my intent.

Using a K model separator on your '69 would involve more than just putting one on the generator. The proximity of the separator to the cam cover is part of what makes it work and the early covers are different.

It wasn't better for performance as explained here.

http://xlforum.net/forums/showthread.php?t=1861965

The separator and gear appear to be one unit. A pic of sportster part # 31071-58 is shown in the thread. K models and '57 sportsters use part # 31071-52A.
Huh, I thought that was the mist on topic part of my post. Sorry again for the nonsense, thank you for the link and the quick summarization. I was not thinking of getting one or anything, just curious about the model k (I guess my internet Foo has gotten rusty, I did search for it.....)

If it's part of what makes it different I am going to enjoy nerding out on it (I feel like most of the changes here were epa motivated, considering sportster history. It seems a general consensus that regurgitation into carb < foo foo valve < venting to the atmosphere so it will be very cool to look into the things they changed on purpose!

I am loving this thread (I don't know why I thought my bad calculations worth keeping, I am an odd person who enjoys odd things so many times I don't make sense. Again my apologies for any clutter.) And I'm sure any other links to interesting model k stuff would help the O P. as well ...... or maybe that's just a nerdy thing of mine too, if so ignore

the reason I love studying thus us it seems like it was pure efficiency and performance chasing, I know ama saved the company; but feel like a lot of cost cutting was involves. Then We enter the Era of performance upgrades vs epa downgrades, clearly the upgrades won, but it is far less simple to study than the model k's progression

TL;DR
Ty for answering and the links, I will lurk now as I feel I haven't added anything, sorry about that; just a motercycle nerd consumed by curiosity and projecting things that help me learn onto others. I'm working on it, my bad.

Also to OP, how the hell dud you score that carburetor, you have a time machine. You need to cut the B.S. here and start putting every harley ever kept to rot in our shops (and, if you could swing back to 2009 and grab some of thus stuff called bitcoin for us, if it only goes back to the 50's gold will be fine!

Seriously though, beautiful score; they probably took you arm and first born son but totally worth it! EDIT: oh it's your buddy, see I was right. He'll take good care of the boy and you have an extra arm.
Reply With Quote
  #29
Old 28th August 2022
needspeed needspeed is offline
XL FORUM LIFE MEMBER

Join Date: May 2014
Posts: 1,895
Sportster/Buell Model: xlh
Sportster/Buell Year: 1974
Reputation: 1328451
needspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond repute
Default

Ironheadron, to be clear I wasn't being critical of your question about the oil separator. Not at all. Actually a good question about a part involved.

It's just that I've seen too many threads morph into discussion about stuff that has nothing to do with the OPs subject. Example: It could go: K model restoration- oil slinger- oil pump function- oil type-oil leak-gasket sealer-pump speed-breather timing- airflow thru carb- spark plug type- and on and on and on until we're talking about a chevy v8. Don't laugh, it happens.
Reply With Quote
  #30
Old 28th August 2022
thefrenchowl's Avatar
thefrenchowl thefrenchowl is offline
Master Custom Bike Builder

Join Date: Nov 2006
Posts: 3,313
Sportster/Buell Model: KHK
Sportster/Buell Year: 1954
Sportster/Buell Model #2: 900cc XLB
Sportster/Buell Year #2: 1967
Other Motorcycle Model: 1200cc XLRTT
Other Motorcycle Year: 1966
Reputation: 599034
thefrenchowl has a reputation beyond reputethefrenchowl has a reputation beyond reputethefrenchowl has a reputation beyond reputethefrenchowl has a reputation beyond reputethefrenchowl has a reputation beyond reputethefrenchowl has a reputation beyond reputethefrenchowl has a reputation beyond reputethefrenchowl has a reputation beyond reputethefrenchowl has a reputation beyond reputethefrenchowl has a reputation beyond reputethefrenchowl has a reputation beyond repute
Default

How can one assume it could be noble to compare such different things as a "Slinger" (the horrible washer) and the "Separator" which marries in one simple but elegant design such opposites as centrifugal and centripedic forces???

Patrick...

(yes, je suis hors sujet... it is very late now and I should be in bed...)
Reply With Quote
Reply

Bookmarks


Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump



All times are GMT +1. The time now is 00:13.


Powered by vBulletin® Version 3.8.11
Copyright ©2000 - 2023, vBulletin Solutions Inc.
XL Forum® - Linson Media LLC
