Default Leftover part! please help me identify this :)

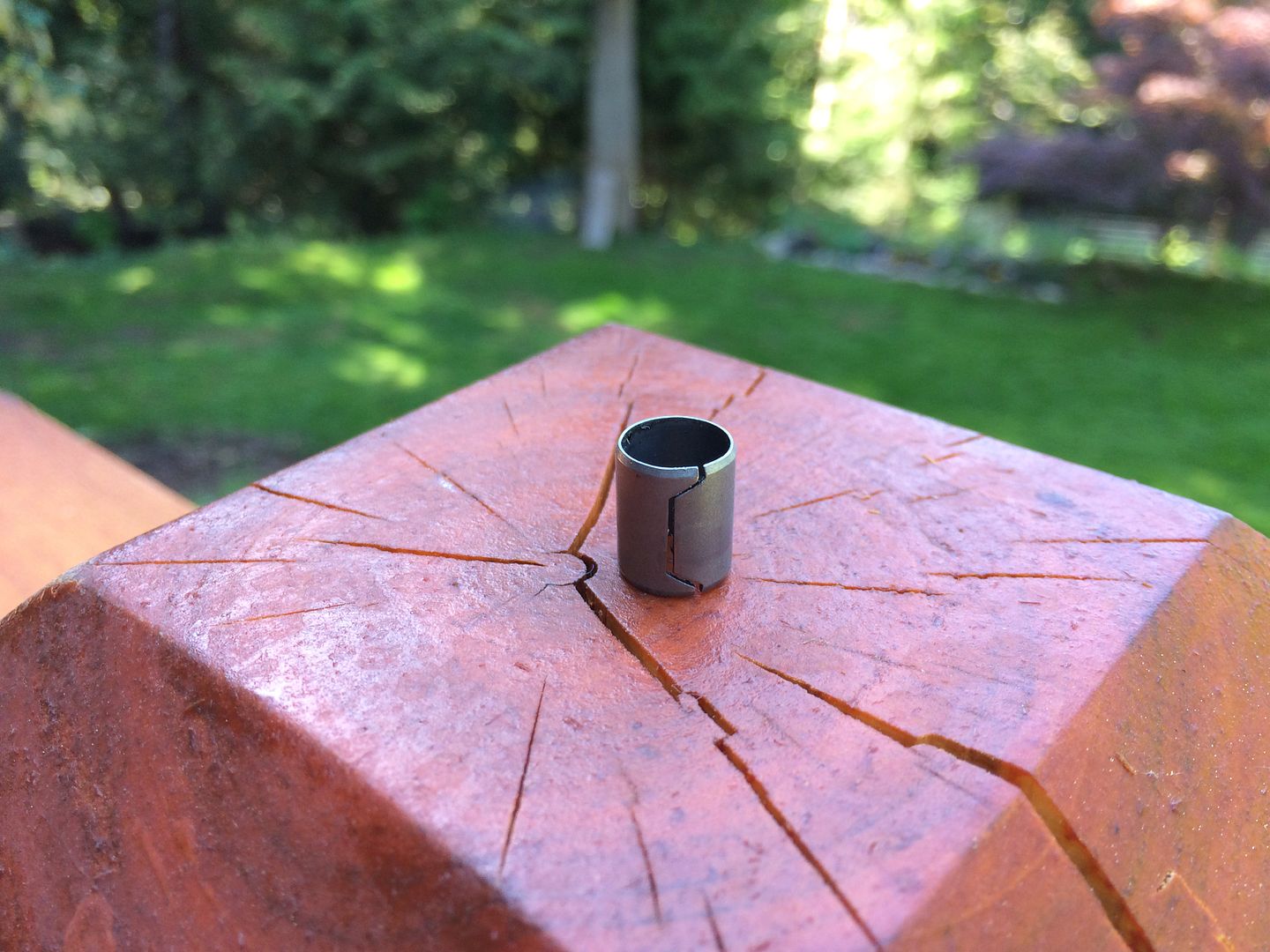

So I've changed out the starter on my 06.. everything went smoothly enough but as I was putting my primary cover back into place I noticed this piece sitting under the bike. I couldn't see anywhere that it looked like it belonged so I figured I'd ask the experts

Thanks!
__________________
Johnny

2006 Sportster with a whole bunch of stuff done...

[URL=http://s1333.photobucket.com/user/jphelfer/media/20597312-acb9-4b98-bc7d-17be7f0925bd_zps2207fee7.jpg.html][IMG]http://i1333.photobucket.com/albums/w636/jphelfer/20597312-acb9-4b98-bc7d-17be7f0925bd_zps2207fee7.jpg[/IMG][/URL]
Reply With Quote
  #2
Old 7th June 2015
sportsterpaul's Avatar
sportsterpaul sportsterpaul is offline
XL FORUM TEAM MEMBER

Join Date: Jan 2009
Location: In a swamp/Michigan
Posts: 12,779
Sportster/Buell Model: XL1460C
Sportster/Buell Year: 2000
Sportster/Buell Model #2: XL1200R
Sportster/Buell Year #2: 2006
Other Motorcycle Model: XL1200R
Other Motorcycle Year: 2004
Reputation: 7482791
sportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond repute
Default

Is that one of the locator dowel pins used to align the primary case as it's being installed? There should be one in the front and one at the rear, my guess is it's the one from the rear?
__________________
I.B.A.#26543, Growing old-Mandatory/ Growing up-optional. Men do not quit playing because they get old, they get old because they stop playing!

The XL Forum Sportsterpedia:
http://sportsterpedia.com/doku.php/starthttp://xlforum.net/forums/images/editor/quote.gif
Reply With Quote
  #3
Old 7th June 2015
ReddTigger's Avatar
ReddTigger ReddTigger is offline
XL FORUM LIFE MEMBER

Join Date: Aug 2005
Location: MARY Lund, YUK !
Posts: 15,356
Sportster/Buell Model: XLH-1208
Sportster/Buell Year: 1997
Reputation: 2059035
ReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond repute
Default

Quote:
Originally Posted by sportsterpaul View Post
Is that one of the locator dowel pins used to align the primary case as it's being installed? There should be one in the front and one at the rear, my guess is it's the one from the rear?

Ding ding ding.. we have a winner

Tell him what he's won, Johnny!


In other words..+1
__________________


States I've Ridden in

71.3 hp 70.8 tq

1208cc 11.09:1 (Wiseco 10° Dome 10.5:1 .010 over) ,Screamin Eagle Dual Plug Heads (10° 61cc), Original SE A/C, Vance & Hines Straight Shots w/ Custom Baffles. SE 6800 ign, Dual BREMBO brakes/ Pirelli Night Dragon MU85-16 Rear - 100/90-19 Front. Progressive Springs & 412 HD 13½" Chrome Shocks, 5½" pullback riser w/ "reddtigger mount", Stebel Nautilus Compact Air horn, Mustang Vintage Super Wide Touring Seat, Alto Carbonite Clutch
Reply With Quote
  #4
Old 7th June 2015
Sweet Terry Smoove's Avatar
Sweet Terry Smoove Sweet Terry Smoove is offline
Senior Bike Builder

Join Date: May 2012
Posts: 1,955
Sportster/Buell Model: XL1200N
Sportster/Buell Year: 2011
Reputation: 3204497
Sweet Terry Smoove has a reputation beyond reputeSweet Terry Smoove has a reputation beyond reputeSweet Terry Smoove has a reputation beyond reputeSweet Terry Smoove has a reputation beyond reputeSweet Terry Smoove has a reputation beyond reputeSweet Terry Smoove has a reputation beyond reputeSweet Terry Smoove has a reputation beyond reputeSweet Terry Smoove has a reputation beyond reputeSweet Terry Smoove has a reputation beyond reputeSweet Terry Smoove has a reputation beyond reputeSweet Terry Smoove has a reputation beyond repute
Default

I have a whole bucket of left over parts. Why the hell does HD use so many extra parts? So far my bike has lost about 15 pounds.
Nice bike Johnny. I love the look.
Reply With Quote
  #5
Old 7th June 2015
sportsterpaul's Avatar
sportsterpaul sportsterpaul is offline
XL FORUM TEAM MEMBER

Join Date: Jan 2009
Location: In a swamp/Michigan
Posts: 12,779
Sportster/Buell Model: XL1460C
Sportster/Buell Year: 2000
Sportster/Buell Model #2: XL1200R
Sportster/Buell Year #2: 2006
Other Motorcycle Model: XL1200R
Other Motorcycle Year: 2004
Reputation: 7482791
sportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond repute
Default

Thanks Anthony, but I knew it from having lost one of my own,LOL!
Reply With Quote
  #6
Old 8th June 2015
johnnyblack's Avatar
johnnyblack johnnyblack is offline
Biker

Join Date: Aug 2012
Posts: 40
Sportster/Buell Model: sportster
Sportster/Buell Year: 2004
Sportster/Buell Model #2: 1200
Sportster/Buell Year #2: 2004
Other Motorcycle Model: Fat Bob
Other Motorcycle Year: 2009
Reputation: 10119
johnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of light
Default

Yup that's what it was... I didn't even notice them when I first pulled it off.
Thanks Guys!
Reply With Quote
  #7
Old 8th June 2015
johnnyblack's Avatar
johnnyblack johnnyblack is offline
Biker

Join Date: Aug 2012
Posts: 40
Sportster/Buell Model: sportster
Sportster/Buell Year: 2004
Sportster/Buell Model #2: 1200
Sportster/Buell Year #2: 2004
Other Motorcycle Model: Fat Bob
Other Motorcycle Year: 2009
Reputation: 10119
johnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of light
Default

Now hopefully I can figure out primary chain tensioning and fluid capacity..
Found plenty of good info on here, but this is my first venture into the primary on this bike.
Reply With Quote
  #8
Old 8th June 2015
ReddTigger's Avatar
ReddTigger ReddTigger is offline
XL FORUM LIFE MEMBER

Join Date: Aug 2005
Location: MARY Lund, YUK !
Posts: 15,356
Sportster/Buell Model: XLH-1208
Sportster/Buell Year: 1997
Reputation: 2059035
ReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond reputeReddTigger has a reputation beyond repute
Default

Fluud capacity is 28 oz or until it just covers the bottom of the clutch hub..

Tension is important to get the tightest part of the chain... I typically hold it (chain) up with my finger while turning the rear wheel.. transmission in 5th gear. Plugs out of bike..once I feel the chain push my finger down. I go forward and reverse to check it. Once im sure thats the tightest. I make my adjustments.
Reply With Quote
  #9
Old 8th June 2015
johnnyblack's Avatar
johnnyblack johnnyblack is offline
Biker

Join Date: Aug 2012
Posts: 40
Sportster/Buell Model: sportster
Sportster/Buell Year: 2004
Sportster/Buell Model #2: 1200
Sportster/Buell Year #2: 2004
Other Motorcycle Model: Fat Bob
Other Motorcycle Year: 2009
Reputation: 10119
johnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of lightjohnnyblack is a glorious beacon of light
Default

Thanks Tigger
I filled it to the bottom of the clutch hub.. took right around 28 oz. I also filled a container with the original fluid I drained out, since it seemed like a lot, and checked it, about 38 - 40 oz had been in there originally.
Haven't adjusted the chain tension yet.. when putting it back together I just turned the adjuster to roughly what it had been set at before. I fired it up to see how the starter worked and I do notice a new noise while it's just idling in neutral. I'll get the chain adjusted properly tonight and see what happens.

Thanks for the help!
