  #11
Old 14th June 2010
aswracing's Avatar
aswracing aswracing is offline
A Million Facts & Figures

Join Date: Jan 2005
Location: Famous Potatoes
Posts: 9,935
Sportster/Buell Model: XL883
Sportster/Buell Year: 2007
Sportster/Buell Model #2: Buell Cyclone
Sportster/Buell Year #2: 1999
Reputation: 2175181
aswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond repute
Default


Since I'd like to put the top end together this weekend, I've turned my attention to getting the heads ready. The heads are perhaps the most unique & exotic parts on the engine.

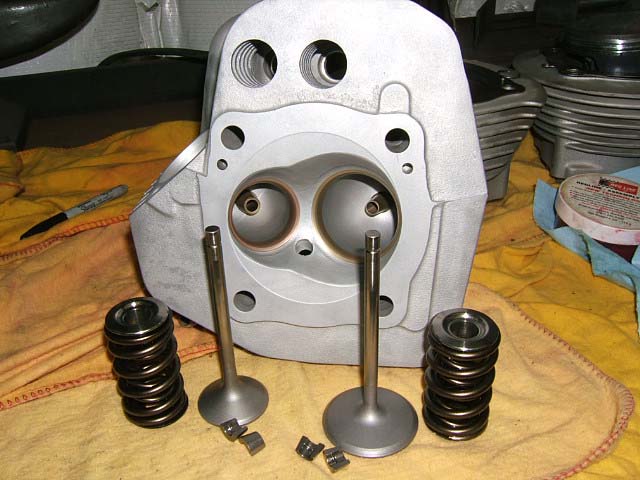

Note the chamber shape, and the fact that it's much more flat than any XL or Buell. The valve angles have been stood up a lot to allow this.

The valves are titanium - 1.750" exhaust and 2.250" intake, which is some big honkin' valves! They're featherweight though. Notice that they're 5/16 stems, not the fashionable 7mm stuff.

Also note the spring pack. It's a conventional dual spring, not a beehive. I've done the measurements and while I'd rather not reveal the exact numbers, they're pretty stout. Likewise they have lots of travel at the lift I measured earlier when mapping the cams.

Retainers and even the valve locks are titanium. This is all top shelf stuff.

The exhaust seats are beryllium copper and the intake seats are bronze manganese, to be compatible with the Ti valves.

Guides are bronze manganese.

I just freshened everything up and made measurements to make sure everything is good to go. It was all in very good shape and I didn't need to swap any parts. But now I have all the numbers on everything in case I ever need to go buy parts.



Now that's an ovalized port! It's also very straight, which is the real advantage of standing up the valve angles. The ports were CNC machined from the factory and pretty well done. We didn't really make any big changes, just cleaned up some sloppiness here and there.

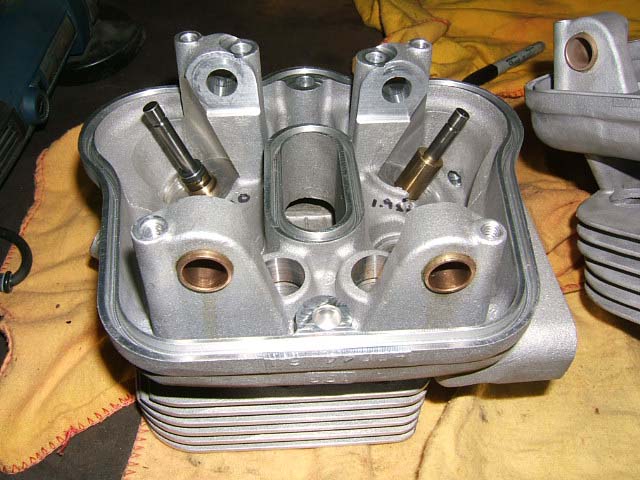

The rocker box is integrated into the head, it's all the same piece. On top of that, two of the head bolts (actually head nuts) are inaccessible without removing the rocker arms. So that begs the question, how do you put this thing together? The lifters are hydraulic and the pushrods are non-adjustable.

The only way I can figure out to do it is to disassemble and drain the oil out of all the lifters and then reassemble and install them. Then torque the heads on. Install the pushrods and the rocker arms into place and then push the rocker arms down, compressing the lifter, while putting the rocker shaft through. I don't see any other way to do it.

The magic marker writing is where I wrote the spring installed height measurements, before shimming. Using that data and the spring pressure and coil bind height measurements I can figure out how much I want to shim each spring.
Reply With Quote
  #12
Old 4th July 2010
Stephen Lowry's Avatar
Stephen Lowry Stephen Lowry is offline
Senior Chief Know It All 2nd Class

Join Date: Sep 2008
Posts: 1,488
Sportster/Buell Model: 1988 XLH 1424cc
Sportster/Buell Year: 1988
Sportster/Buell Model #2: XLX iron head
Sportster/Buell Year #2: 1983
Other Motorcycle Model: Victory Vision
Other Motorcycle Year: 2008
Reputation: 2133
Stephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the rough
Default

Great post, really good info and pictures, thanks.... The finning on the heads is huge and the valves are giant with their narrow included angle, isn't the bore just a tad over 4" ??
Can't wait to see pics of it back together and numbers too.................
__________________
XL's: You got love em, make em faster, handle and stop better as they get older: 116 HP & 105 lbs TQ, 88inch Axtell mountain motor.............Steve
Reply With Quote
  #13
Old 4th July 2010
shotgun46's Avatar
shotgun46 shotgun46 is offline
Senior Master Custom Bike Builder

Join Date: Dec 2005
Location: Portland Tn
Posts: 10,337
Sportster/Buell Model: 1998 S= Superior Model
Sportster/Buell Year: 1998
Reputation: 279599
shotgun46 has a reputation beyond reputeshotgun46 has a reputation beyond reputeshotgun46 has a reputation beyond reputeshotgun46 has a reputation beyond reputeshotgun46 has a reputation beyond reputeshotgun46 has a reputation beyond reputeshotgun46 has a reputation beyond reputeshotgun46 has a reputation beyond reputeshotgun46 has a reputation beyond reputeshotgun46 has a reputation beyond reputeshotgun46 has a reputation beyond repute
Default

some interesting stuff here ! I am subscribing
Reply With Quote
  #14
Old 6th July 2010
aswracing's Avatar
aswracing aswracing is offline
A Million Facts & Figures

Join Date: Jan 2005
Location: Famous Potatoes
Posts: 9,935
Sportster/Buell Model: XL883
Sportster/Buell Year: 2007
Sportster/Buell Model #2: Buell Cyclone
Sportster/Buell Year #2: 1999
Reputation: 2175181
aswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond reputeaswracing has a reputation beyond repute
Default

I set this project aside for a couple weeks because the other bike is higher priority. I need to get them both done before the Bub meet but the nitro bike has to come first, as Susan can ride her S1 if the XBRR isn't ready, but I need the nitro bike for myself. The frame on the nitro bike cracked last year, and I've been working on the XBRR while I got the nitro bike's frame sandblasted/welded/gusseted/powder coated, but now that the frame is all fixed I'm putting that bike back together. I should get back to the XBRR in a couple more weeks.

Stephen, yes, it's a 4.080 bore x 3.125 stroke. The valve angles have been stood up dramatically - 20 intake/25 exhaust vs. stock 27 intake/31 exhaust - which allowed them to raise the ports quite a bit. It also helps with valve to valve clearance which is why they can use such huge valves. But to do that to an XL engine would require a major change in the valvetrain - like massive relocation of the rocker arms. Altered valve angles in XL motors leave the valve tip in the stock location, or close, so that the stock valvetrain still works.
Reply With Quote
  #15
Old 6th July 2010
Stephen Lowry's Avatar
Stephen Lowry Stephen Lowry is offline
Senior Chief Know It All 2nd Class

Join Date: Sep 2008
Posts: 1,488
Sportster/Buell Model: 1988 XLH 1424cc
Sportster/Buell Year: 1988
Sportster/Buell Model #2: XLX iron head
Sportster/Buell Year #2: 1983
Other Motorcycle Model: Victory Vision
Other Motorcycle Year: 2008
Reputation: 2133
Stephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the rough
Default

Aaron, thank's for answering my question.............steve
Reply With Quote
  #16
Old 6th July 2010
Stephen Lowry's Avatar
Stephen Lowry Stephen Lowry is offline
Senior Chief Know It All 2nd Class

Join Date: Sep 2008
Posts: 1,488
Sportster/Buell Model: 1988 XLH 1424cc
Sportster/Buell Year: 1988
Sportster/Buell Model #2: XLX iron head
Sportster/Buell Year #2: 1983
Other Motorcycle Model: Victory Vision
Other Motorcycle Year: 2008
Reputation: 2133
Stephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the rough
Default

Aaron looking at the aspects of the XBRR, bottom end, bore/stroke ratio, porkchop flywheels, the heavy finning ect..... Would you consider this the pinacle of aircooled twin cylinder race engines? I know it had a short race career, racing against water cooled four valve twins was nigh on impossible I guess ??? If you could would you have designed it any differently ???
Reply With Quote
  #17
Old 6th July 2010
wilbur's Avatar
wilbur wilbur is offline
Wait...What?

Join Date: Mar 2006
Location: Heatville
Posts: 2,519
Sportster/Buell Model: 88 inch modified
Sportster/Buell Year: 2003
Sportster/Buell Model #2: iforgot
Sportster/Buell Year #2: 80's
Other Motorcycle Model: crs
Other Motorcycle Year: 80's
Reputation: 52094
wilbur is a splendid one to beholdwilbur is a splendid one to beholdwilbur is a splendid one to beholdwilbur is a splendid one to beholdwilbur is a splendid one to beholdwilbur is a splendid one to beholdwilbur is a splendid one to beholdwilbur is a splendid one to beholdwilbur is a splendid one to beholdwilbur is a splendid one to beholdwilbur is a splendid one to behold
Default

Wow!! This is some great stuff! Magnesium case, flywheel, cams, heads, valves, built in oil pump, and lots of special tooling.

What do those rockers look like???
__________________
Reply With Quote
  #18
Old 8th July 2010
Kazoom's Avatar
Kazoom Kazoom is offline
Chief Know It All

Join Date: Sep 2005
Location: Cal, AB, CND
Posts: 438
Sportster/Buell Model: X1
Sportster/Buell Year: 00
Sportster/Buell Model #2: X1
Sportster/Buell Year #2: 01
Other Motorcycle Model: xlch chop
Other Motorcycle Year: 77
Reputation: 133
Kazoom is on a distinguished roadKazoom is on a distinguished road
Default

Neat neat neat neat neat NEAT! STUFF!, as they say, a pic is worth a thousand words, thanks for pics aswracing.
__________________
:)Im Living the Big F... Lebowski :)
Reply With Quote
Sponsored Links
  #19
Old 8th July 2010
Stephen Lowry's Avatar
Stephen Lowry Stephen Lowry is offline
Senior Chief Know It All 2nd Class

Join Date: Sep 2008
Posts: 1,488
Sportster/Buell Model: 1988 XLH 1424cc
Sportster/Buell Year: 1988
Sportster/Buell Model #2: XLX iron head
Sportster/Buell Year #2: 1983
Other Motorcycle Model: Victory Vision
Other Motorcycle Year: 2008
Reputation: 2133
Stephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the roughStephen Lowry is a jewel in the rough
Default

Whats up Kazoom ?? Glad to hear from ya ...........steve
Reply With Quote
  #20
Old 9th July 2010
Kazoom's Avatar
Kazoom Kazoom is offline
Chief Know It All

Join Date: Sep 2005
Location: Cal, AB, CND
Posts: 438
Sportster/Buell Model: X1
Sportster/Buell Year: 00
Sportster/Buell Model #2: X1
Sportster/Buell Year #2: 01
Other Motorcycle Model: xlch chop
Other Motorcycle Year: 77
Reputation: 133
Kazoom is on a distinguished roadKazoom is on a distinguished road
Default

Hey Steve, I got to check more of these trick threads once in a while, going to get back on my 4V project too this summer.

aswracing, are the rockers rollerized at all on these heads?
