Reply

Share Thread Tools Display Modes
  #11
Old 6th February 2012
Cosmo Kramer's Avatar
Cosmo Kramer Cosmo Kramer is offline
Senior Master Custom Bike Builder

Join Date: Sep 2008
Location: Anytown USA
Posts: 5,209
Sportster/Buell Model: 1200N
Sportster/Buell Year: 2007
Reputation: 359414
Cosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond repute
Default

Quote:
Originally Posted by bustert View Post
this is not to take away from cosmo's fine article, this is something i picked up years ago.
No problem Bust....thanks for sharing the info!

The one thing the mod you show doesn't accomplish that I am working on is making them run/turn/brake lights with just a single filament bulb (they talk about doing it with a dual filament bulb which is simple to do) like is found stock on non-Nightster/Iron/48 Sportys. I think mine could even be cheaper when i do the hard-wire kit as I don't need a trailer converter or flasher unit....but we'll see.
__________________
Cosmo

If you don't stand behind our troops, please, feel free to stand in front of them!
Reply With Quote
  #12
Old 7th February 2012
bustert's Avatar
bustert bustert is offline
XL FORUM TEAM MEMBER

Join Date: Jul 2008
Posts: 10,041
Sportster/Buell Model: 1200s
Sportster/Buell Year: 2001
Sportster/Buell Model #2: xlch
Sportster/Buell Year #2: 1974
Reputation: 3254109
bustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond repute
Default

keep up the good work cosmo!!!!!

i love playing with electricity----------ug electricity-------------ug electricity!!!!!

ever since i got knock out of my chair while de-energizing a television picture tube, coon ass style, went quickly and bought the proper tools.
Reply With Quote
  #13
Old 7th February 2012
DaytonaSportster's Avatar
DaytonaSportster DaytonaSportster is offline
Senior Custom Bike Builder

Join Date: Nov 2009
Location: Daytona Beach, FL
Posts: 2,848
Sportster/Buell Model: XL1200c
Sportster/Buell Year: 2006
Reputation: 721385
DaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond repute
Default

Nice job!!
__________________
http://xlforum.net/forums/showthread.php?t=842245
Reply With Quote
  #14
Old 7th February 2012
redi2ride's Avatar
redi2ride redi2ride is offline
Senior Chief Master Mechanic 1st Class

Join Date: Jun 2010
Location: Next too boise Idaho
Posts: 1,217
Sportster/Buell Model: Sportster 1200cc
Sportster/Buell Year: 2001
Reputation: 89153
redi2ride has much to be proud ofredi2ride has much to be proud ofredi2ride has much to be proud ofredi2ride has much to be proud ofredi2ride has much to be proud ofredi2ride has much to be proud ofredi2ride has much to be proud ofredi2ride has much to be proud ofredi2ride has much to be proud ofredi2ride has much to be proud ofredi2ride has much to be proud of
Default

coooool!!!
__________________
"They who can give up essential liberty to obtain a little temporary safety, deserve neither liberty nor safety." -- Benjamin Franklin
Reply With Quote
  #15
Old 11th February 2012
tearitupfixitrepeat tearitupfixitrepeat is offline
Biker

Join Date: Feb 2012
Posts: 2
Sportster/Buell Model: Spec Construction
Sportster/Buell Year: 87
Reputation: 10
tearitupfixitrepeat is an unknown quantity at this point
Default

Quote:
Originally Posted by Cosmo Kramer View Post
No problem Bust....thanks for sharing the info!

The one thing the mod you show doesn't accomplish that I am working on is making them run/turn/brake lights with just a single filament bulb (they talk about doing it with a dual filament bulb which is simple to do) like is found stock on non-Nightster/Iron/48 Sportys. I think mine could even be cheaper when i do the hard-wire kit as I don't need a trailer converter or flasher unit....but we'll see.
I understand that goal. I personally don't need a running light as I'm running a set dual of filament bulbs. I have been using a trailer light module and I have had them crap the bed before.

http://tearitupfixitrepeat.blogspot....aillights.html

Are the dual filament sockets available for a reasonable cost that fit the sportster rear turn signal housing? For Vulcans it seemed like everyone had a set of dual element front stockers from adding a light bar.
Reply With Quote
  #16
Old 11th February 2012
Cosmo Kramer's Avatar
Cosmo Kramer Cosmo Kramer is offline
Senior Master Custom Bike Builder

Join Date: Sep 2008
Location: Anytown USA
Posts: 5,209
Sportster/Buell Model: 1200N
Sportster/Buell Year: 2007
Reputation: 359414
Cosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond repute
Default

Not sure how available the front turn signals are or what they are going for. I know you can buy just the "guts" for about $30 per side....but you might as well buy the HD brake/turn/run module for $60 then. Maybe off Ebay there are a lot....dunno.

The goal is to provide a way to make a cheaper BTR module than the $60 HD unit for the folks rolling around on a Roadster, Custom or Low models. I am still working on a method to reduce the voltage for the running light (again, trying to avoid using a resistor that will generate a lot of heat) and I have to determine the size of the capacitor.
Reply With Quote
  #17
Old 21st February 2012
Cosmo Kramer's Avatar
Cosmo Kramer Cosmo Kramer is offline
Senior Master Custom Bike Builder

Join Date: Sep 2008
Location: Anytown USA
Posts: 5,209
Sportster/Buell Model: 1200N
Sportster/Buell Year: 2007
Reputation: 359414
Cosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond repute
Default

UPDATE:

So I have been spending WAAAYYY too much time on this damn circuit! I probably should have cracked open my old circuits text book from the college days but instead spend hours playing with the circuit simulator online. Been doing a lot of research....found some cool info and tools along the way. Anyways....I think I got it.

I was just utilizing a capacitor to energize the relay's coil but with the help from a friend came up with a better idea to reduce the amp requirements to keep the relay open.

I am going to have to update my wiring schematic to reflect the latest changes....but here is a cool link where you can see the circuit in action and even toggle the brake light and turn signal switches. The site I found below was a great tool to help prove out some of my theories with the circuit simulator. The program has a lot of power to it and allows the most flexibility I have seen for any online simulator. Note that when neither of those are on the running light is on (as shown in the screen shot below). You can run the circuit and as you toggle the switches you can see in the scope below the voltage at the rear bulb. This simulates one side or one light (this requires Java to run).

I couldn't get the link to work right....so unfortunately you have to copy this entire thing below and change the "htp" to "http" at the beginning (it might take a minute for Java to fire up in a separate window):

htp://www.falstad.com/circuit/#%24+1+4.9999999999999996E-6+382.76258214399064+99+5.0+50%0Av+240+272+240+208 +0+0+40.0+12.7+0.0+0.0+0.5%0Aw+240+80+336+80+0%0Aw +240+272+240+448+0%0As+336+272+416+272+0+1+false%0 Aw+416+272+480+272+0%0Ad+416+384+416+304+1+0.80590 4783%0Aw+480+272+544+272+0%0Aw+416+80+480+80+0%0Ac +480+304+480+448+0+2.1999999999999998E-4+0.4005732611586556%0Aw+480+304+480+224+0%0Aw+480 +80+480+176+0%0Ad+480+176+480+224+1+0.805904783%0A s+336+80+416+80+0+1+false%0Aw+848+80+848+176+0%0Ad +848+176+848+256+1+0.805904783%0Ax+330+54+447+58+0 +14+Turn+Signal+Switch%0Ax+350+243+431+247+0+14+Br ake+Switch%0A181+848+304+848+384+0+1103.0597159920 121+28.0+12.0+0.0010+0.0010%0Aw+848+384+848+448+0% 0Ax+901+350+929+354+0+14+Bulb%0Ax+755+221+791+225+ 0+14+Relay%0Ax+150+308+173+312+0+14+Tail%0Ax+145+3 25+176+329+0+14+Light%0Aw+336+80+336+272+0%0Ag+240 +448+240+496+0%0Ag+848+448+848+496+0%0Ag+512+448+5 12+496+0%0Aw+416+384+416+416+0%0Aw+416+304+416+272 +0%0Aw+736+80+848+80+0%0Aw+480+448+512+448+0%0Aw+5 12+448+544+448+0%0Aw+544+448+544+432+0%0Ar+544+432 +544+352+0+10000.0%0Aw+544+352+544+320+0%0Aw+544+3 04+480+304+0%0Aw+544+320+544+304+0%0Aw+688+304+688 +352+0%0Aw+544+304+592+304+0%0Aw+720+320+720+416+0 %0Ag+640+448+640+496+0%0Aw+544+272+640+272+0%0Aw+8 32+256+848+256+0%0Ar+592+304+592+384+0+340.0%0At+5 92+384+640+384+0+1+-12.299354601110151+0.4005702008009197+100.0%0Aw+64 0+400+640+448+0%0Aw+640+272+720+272+0%0Aw+688+400+ 688+416+0%0Aw+688+416+720+416+0%0Aw+848+256+848+30 4+0%0Aw+688+304+720+304+0%0Aw+480+80+720+80+0%0Aw+ 720+80+736+80+0%0A178+720+272+832+272+0+1+0.2+-9.001103164259852E-7+0.05+1000000.0+0.02+85.0%0Aw+240+208+240+144+0%0 Aw+240+144+240+80+0%0Aw+640+320+640+368+0%0Aw+240+ 144+288+144+0%0Aw+288+144+288+384+0%0Aw+288+528+56 0+528+0%0Aw+560+528+720+528+0%0Aw+720+528+720+416+ 0%0Aw+688+304+640+304+0%0Aw+640+304+640+320+0%0Ar+ 384+416+320+416+0+4.0%0Aw+416+416+384+416+0%0Aw+32 0+416+288+416+0%0Aw+288+384+288+416+0%0Aw+288+416+ 288+528+0%0Ad+688+352+688+400+1+0.805904783%0Ao+17 +64+0+34+9.353610478917778+1.4965776766268446+0+-1%0A



So the list of components include (for one side) a capacitor, diodes, resistors, relay and a transistor. Hopefully I can make a working unit in the next week or so. The relay matches a standard relay layout:



Next step is to get the electrical components and start building the circuit. I'll get a parts list and prices as I start building...and of course provide step-by-step directions for building the circuit.
Reply With Quote
  #18
Old 1st April 2012
Cosmo Kramer's Avatar
Cosmo Kramer Cosmo Kramer is offline
Senior Master Custom Bike Builder

Join Date: Sep 2008
Location: Anytown USA
Posts: 5,209
Sportster/Buell Model: 1200N
Sportster/Buell Year: 2007
Reputation: 359414
Cosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond repute
Default

Alright....so I have been able to make a functioning brake/turn signal module. This design is based off of the simulation done above with the exception of the "run" light portion of the circuit. If you have dual filament bulbs than this is as simple as running the wire for the running lights to the dim filament and you are done. So this module will suppress the brake light while the turn signal is on:



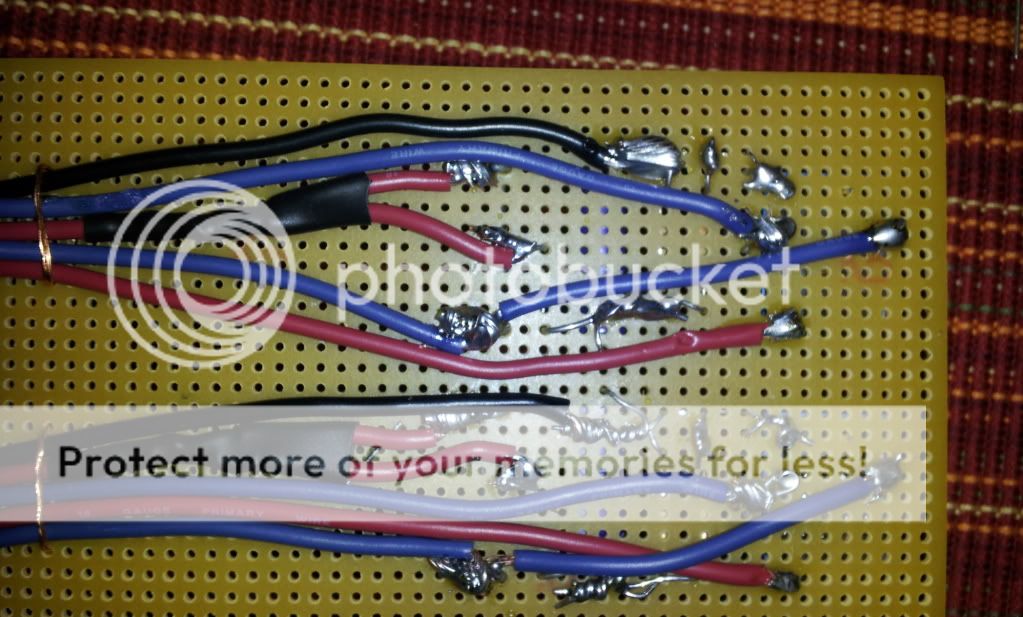

The back side of the board:

Reply With Quote
  #19
Old 1st April 2012
Cosmo Kramer's Avatar
Cosmo Kramer Cosmo Kramer is offline
Senior Master Custom Bike Builder

Join Date: Sep 2008
Location: Anytown USA
Posts: 5,209
Sportster/Buell Model: 1200N
Sportster/Buell Year: 2007
Reputation: 359414
Cosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond reputeCosmo Kramer has a reputation beyond repute
Default

Here is a quick video of my DIY BT module in action. Notice that the brake light is on steady for the first few seconds then the turn signal is activated. The relay suppresses the brake signal and the turn signal flashes. When the turn signal stops then the brake light automatically comes back on:

Reply With Quote
  #20
Old 1st April 2012
DaytonaSportster's Avatar
DaytonaSportster DaytonaSportster is offline
Senior Custom Bike Builder

Join Date: Nov 2009
Location: Daytona Beach, FL
Posts: 2,848
Sportster/Buell Model: XL1200c
Sportster/Buell Year: 2006
Reputation: 721385
DaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond reputeDaytonaSportster has a reputation beyond repute
Default

Nice breadboarding there!
Reply With Quote
