  #1
Old 18th October 2011
thedevastation thedevastation is offline
Biker

Join Date: Jun 2011
Posts: 4
Sportster/Buell Model: XL883R
Sportster/Buell Year: 2003
Reputation: 10
thedevastation is an unknown quantity at this point
Default 2003 Coil and Ignition Kit Relocation Instructions

I have not been able to find instructions for this kit I got anywhere, I can find them for older and newer bikes but not the 2003 version kit. I can't even find pictures that clearly show how all this is mounted. Does anyone have instructions on how to reposition my coil and ignition with this kit? Image of what it looks like is below.
THANKS!
Reply With Quote
  #2
Old 19th October 2011
Bruce's Avatar
Bruce Bruce is offline
Old Fart M/C Club

Join Date: Feb 2007
Location: Cool Ridge WV
Posts: 1,681
Sportster/Buell Model: 883/NRHS 1250 custom
Sportster/Buell Year: 2002
Reputation: 247674
Bruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant future
Default

I bought the same kit, the coil mount just replaced the stock bracket in the same location. The black bracket fits the screw mount of the key switch. I pulled the tank, moved the key switch wiring down between the cylinders and mounted under the top motor mount / choke bracket.
__________________
Ride safe!
Member of "The Cell #2"
Reply With Quote
  #3
Old 19th October 2011
thedevastation thedevastation is offline
Biker

Join Date: Jun 2011
Posts: 4
Sportster/Buell Model: XL883R
Sportster/Buell Year: 2003
Reputation: 10
thedevastation is an unknown quantity at this point
Default

Quote:
Originally Posted by Bruce View Post
I bought the same kit, the coil mount just replaced the stock bracket in the same location. The black bracket fits the screw mount of the key switch. I pulled the tank, moved the key switch wiring down between the cylinders and mounted under the top motor mount / choke bracket.
Do you have any pictures? I just want to make sure I know what I'm doing before I start taking things apart! Thanks so much.
Reply With Quote
  #4
Old 19th October 2011
Bruce's Avatar
Bruce Bruce is offline
Old Fart M/C Club

Join Date: Feb 2007
Location: Cool Ridge WV
Posts: 1,681
Sportster/Buell Model: 883/NRHS 1250 custom
Sportster/Buell Year: 2002
Reputation: 247674
Bruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant futureBruce has a brilliant future
Default

Here you go;

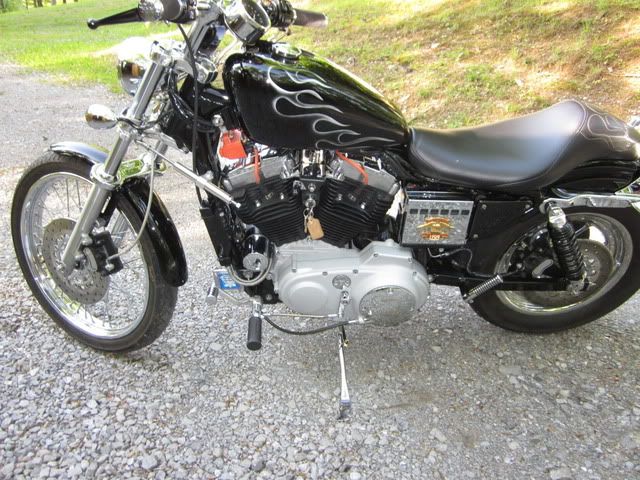

See keys hanging under choke / engine mount.

Reply With Quote
