Default Touring Tach Install

Hello all;
I have an 2009 XL1200C, and my objective is to install a Tachometer from a 2008 HD Touring Bike (Electra Glide?).

I know I have to connect the Serial Data Bus, Ignition and Ground. But do I need the Battery, Accessory wires? It looks like when key is in run position, the Ignition and Battery wires are both connected to the Red wire from the Battery.

I propose getting these signals from the Data Link Connector. This way I do not have to splice any stock wiring. Do you-all think this will work? Thanks for reading. Burt
Reply With Quote
  #2
Old 11th June 2019
Bikeaholic Bikeaholic is offline
XL FORUM LIFE MEMBER

Join Date: May 2015
Location: NSW, Australia.
Posts: 92
Sportster/Buell Model: xl1250
Sportster/Buell Year: 2008
Reputation: 118048
Bikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud of
Default

Hi,
I think i used the accessory connection so Tacho comes on when ignition switched on.
I used the ground wire on the Black Wiring running to headlight instruments. Maybe could just place Ground straight onto metal of frame?
There is a connection for Tacho signal in the wiring connections within the speedo. I think there is a write up of this somewhere on the forum however i have no time to look at the moment. I have a cheap aftermarket tach on my 2008 Sportster.
I have to go to work right now but i can get back to you later if you need.
Reply With Quote
  #3
Old 11th June 2019
fluvannabear fluvannabear is offline
Biker

Join Date: Nov 2018
Posts: 8
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2009
Other Motorcycle Model: TL250 Honda
Other Motorcycle Year: 1976
Reputation: 10
fluvannabear is an unknown quantity at this point
Default

Bikeaholic: Thank you for the reply. I can get Ignition (Battery when key in Run), Serial Data and Ground from the Data Link Connector. I do not want to cut and splice any wires. I am hoping I do not need any other connections to make the Tach work. Don't care if backlight works since do not plan on riding at night. Hope others will chime in about the Battery and Accessory connections. Take care and ride safe. Burt
Reply With Quote
  #4
Old 12th June 2019
Bikeaholic Bikeaholic is offline
XL FORUM LIFE MEMBER

Join Date: May 2015
Location: NSW, Australia.
Posts: 92
Sportster/Buell Model: xl1250
Sportster/Buell Year: 2008
Reputation: 118048
Bikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud ofBikeaholic has much to be proud of
Default

Hi,
Those three connections are all you need but i am unsure if that is where it should be scourced. I have looked at my manual and Data Link Connector does have the ignition, ground and serial data, as you have said.
It does make me wonder how gathering the RPM signal for tach from the one Serial Data connection will work. When i hook up my power vison from the Data Link, all Multiple Data travels from this one connection. But i am no expert.
There is a Factory built Tacho in-put plug in Speedometer harness connector in rear of Speedometer ( no splice). I hope it all works out. Ride Safe.
Reply With Quote
  #5
Old 12th June 2019
fluvannabear fluvannabear is offline
Biker

Join Date: Nov 2018
Posts: 8
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2009
Other Motorcycle Model: TL250 Honda
Other Motorcycle Year: 1976
Reputation: 10
fluvannabear is an unknown quantity at this point
Default

Bikeaholic: Again, thank you for the reply. I guess I am now down to the point where I have to do some active testing to confirm the proper operation of this tach.

My choice of the Data Link connector is because it does not require molesting the stock wiring harness. I have the proper mating connectors for both the Data Link and the Tachometer connectors. Will be an interesting experiment. Take care and ride safe.
Reply With Quote
  #6
Old 12th June 2019
IXL2Relax's Avatar
IXL2Relax IXL2Relax is offline
XL FORUM TEAM MEMBER

Join Date: Feb 2013
Location: Let Freedom Ring in PA
Posts: 7,079
Sportster/Buell Model: Sportster 883►1200
Sportster/Buell Year: 1994
IXL2Relax has disabled reputation
Default

It should operate the tachometer part correctly - the ecm communicates the rpm value to the tach...

You might want to simply tie all three (tach) power wires together - that way, they will at least be powered with the key on... Unpowered, you may be missing some lights on there...

I certainly don't think you can hurt anything by trying it... as long as you get the right connections...

IXL _______ >>>> My Motorcyle Chronicles Are Here <<<<
For FREE Sportster Tech Info from the XLForum:
Explore The Sportsterpedia - The Best Kept Secret on the XLForum!
__________________
### The ride is more enjoyable to nowhere in particular! ###
Reply With Quote
  #7
Old 12th June 2019
fluvannabear fluvannabear is offline
Biker

Join Date: Nov 2018
Posts: 8
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2009
Other Motorcycle Model: TL250 Honda
Other Motorcycle Year: 1976
Reputation: 10
fluvannabear is an unknown quantity at this point
Default

IXL2Relax: Thank you for the comments. I just found out that the Speedo and Tach connectors are keyed differently. Of course I bought the Speedo connector since the Tach connector is not available at a reasonable price. Anyway, just need to grind off the key and will be good to go. I had given thought to tying pins 1, 5 and 6 together so I think I will do that per your suggestion. Have to figure out how to route the new cable put the connectors on and machine out the new tach mounting bracket. Should be fun. Take care and ride safe. Burt
Reply With Quote
  #8
Old 3rd July 2019
fluvannabear fluvannabear is offline
Biker

Join Date: Nov 2018
Posts: 8
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2009
Other Motorcycle Model: TL250 Honda
Other Motorcycle Year: 1976
Reputation: 10
fluvannabear is an unknown quantity at this point
Default

Update: Thanks to everyone who offered suggestions. I have the Electra Glide Tachometer installed using the Data Link Connector as I indicated. Works fine once I got the connectors to connect. Did not use the Accessory connection but did tie Ignition and Battery together. Machining the mounting bracket was the biggest challenge. Made it out of 0.250 6061-T6 aluminum. While the aesthetics are not all that great I think it will do for my needs. Take care and ride safe. Burt
Reply With Quote
  #9
Old 3rd July 2019
Toejam503's Avatar
Toejam503 Toejam503 is offline
Air-Cooled Forever

Join Date: May 2010
Location: Dakota Territory
Posts: 2,798
Sportster/Buell Model: XL 1200 C
Sportster/Buell Year: 2006
Sportster/Buell Model #2: (Prev.Own)XLH Milw.Spec.
Sportster/Buell Year #2: 1981
Reputation: 5279323
Toejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond repute
Default

A pic would be nice.
Reply With Quote
Sponsored Links
  #10
Old 3rd July 2019
fluvannabear fluvannabear is offline
Biker

Join Date: Nov 2018
Posts: 8
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2009
Other Motorcycle Model: TL250 Honda
Other Motorcycle Year: 1976
Reputation: 10
fluvannabear is an unknown quantity at this point
Default

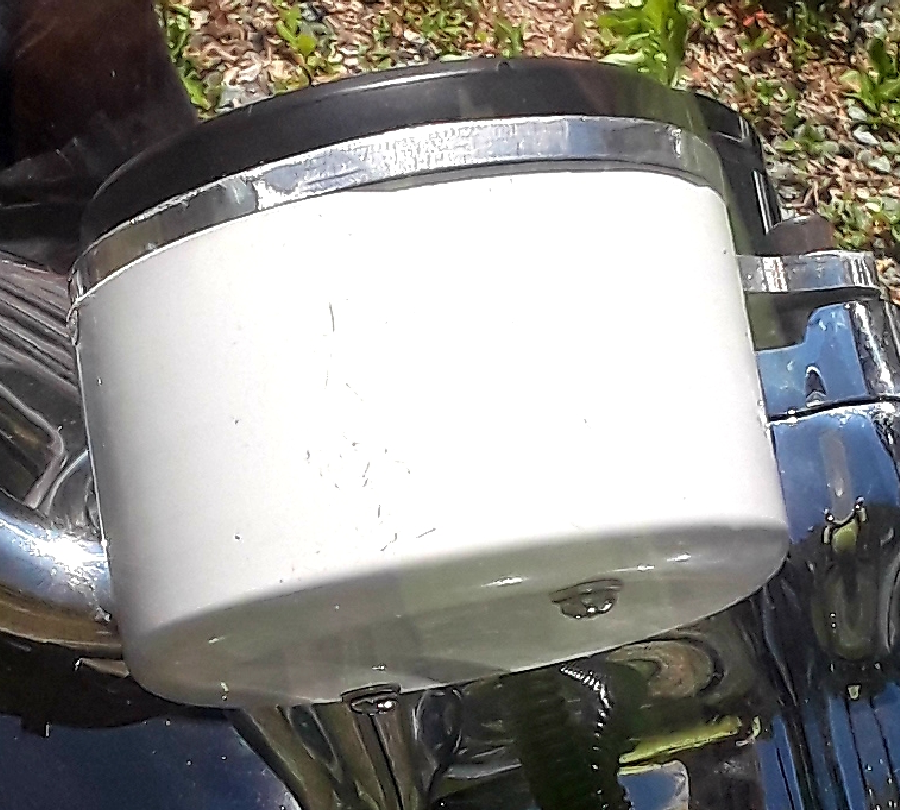

Here are two views per your request.
