  #21
Old 16th April 2014
rejeanprimeau's Avatar
rejeanprimeau rejeanprimeau is offline
XL FORUM TEAM MEMBER

Join Date: Jun 2011
Location: On a farm
Posts: 6,195
Sportster/Buell Model: XL77.2R
Sportster/Buell Year: 2006
Reputation: 2344938
rejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond repute
Default

The pinion gear, the small one, the mark should be at 11 o'clock, It's your starting point.
Reply With Quote
  #22
Old 17th April 2014
balduc-2 balduc-2 is offline
Biker

Join Date: Aug 2013
Posts: 57
Sportster/Buell Model: xl1200c
Sportster/Buell Year: 2005
Reputation: 10
balduc-2 is an unknown quantity at this point
Default

Can someone please chirp in if I have installed the cams correctly because the factory cams got removed with the cover. Does the engine (front piston in cylinder and rear rod) vs. cam position marks look correct?









thanks

Troy
Reply With Quote
  #23
Old 17th April 2014
JackAttack's Avatar
JackAttack JackAttack is offline
Senior Chief Know It All

Join Date: Jul 2011
Location: Burlington, KY
Posts: 857
Sportster/Buell Model: 1200 Custom
Sportster/Buell Year: 2006
Reputation: 159355
JackAttack has a brilliant futureJackAttack has a brilliant futureJackAttack has a brilliant futureJackAttack has a brilliant futureJackAttack has a brilliant futureJackAttack has a brilliant futureJackAttack has a brilliant futureJackAttack has a brilliant futureJackAttack has a brilliant futureJackAttack has a brilliant futureJackAttack has a brilliant future
Default

Looks good to me.
__________________
The universe is shaped exactly like the earth..if you go straight along enough you'll end up where you were.
Reply With Quote
  #24
Old 17th April 2014
Motorhead_smf's Avatar
Motorhead_smf Motorhead_smf is offline
Know It All

Join Date: Nov 2013
Location: Metro Detroit
Posts: 171
Sportster/Buell Model: 88 sporty rigid
Sportster/Buell Year: 1988
Other Motorcycle Model: slabside shovel
Other Motorcycle Year: 1968
Reputation: 249
Motorhead_smf is on a distinguished roadMotorhead_smf is on a distinguished roadMotorhead_smf is on a distinguished road
Default

Looks pretty good to me. I think there's only one way to get all the timing marks to align and you got that covered.
Here was mine just for comparison .


What was reason for removal to begin with, just out of curiosity?
Reply With Quote
  #25
Old 17th April 2014
balduc-2 balduc-2 is offline
Biker

Join Date: Aug 2013
Posts: 57
Sportster/Buell Model: xl1200c
Sportster/Buell Year: 2005
Reputation: 10
balduc-2 is an unknown quantity at this point
Default

Quote:
Originally Posted by Motorhead_smf View Post
Looks pretty good to me. I think there's only one way to get all the timing marks to align and you got that covered.
Here was mine just for comparison .

What was reason for removal to begin with, just out of curiosity?
For some reason I was thinking my piston would have been at the compression stroke. But the marks line up on the cams. The cams are Hammer .560.


The bike seemed to use some oil (approx. 1qt/1,000mi). I decided to rebuild top end with a mild 1250 kit and replace the cams for a little more power. Although I will not be reusing the cylinders and pistons for this build (I will have to find a nice 883 for my OEM cylinders), the cylinders and rings all looked excellent to my untrained eye with 63,000 miles. The top of the pistons had a heavy layer or carbon build up except for the intake valve area. I my opinion oil was going past the valve seals. I have cleaned one piston with great success and will post pics this evening.
Reply With Quote
  #26
Old 18th April 2014
balduc-2 balduc-2 is offline
Biker

Join Date: Aug 2013
Posts: 57
Sportster/Buell Model: xl1200c
Sportster/Buell Year: 2005
Reputation: 10
balduc-2 is an unknown quantity at this point
Default

This is not exactly the proper location for this post but figured I would share here.

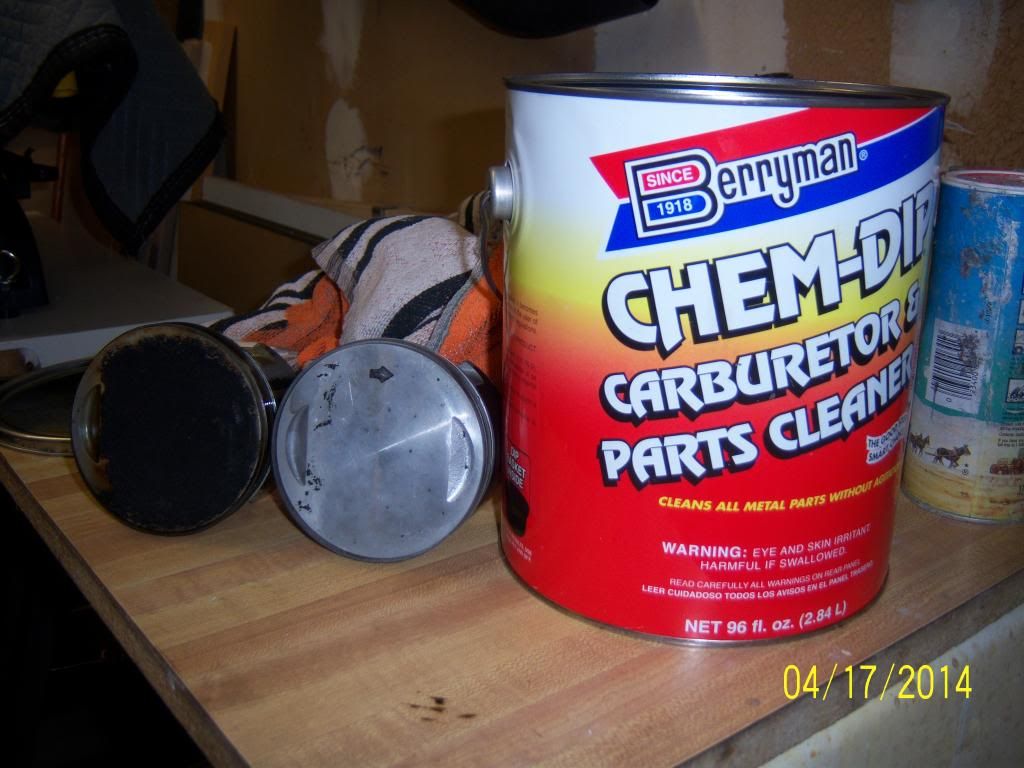

I have cleaned my piston with little effort by using Berryman Chem-Dip.



Both pistons had looked the same from the start. The results are from approx. 5 days of Chem-Dip and rinsing each night.

Reply With Quote
  #27
Old 18th April 2014
Motorhead_smf's Avatar
Motorhead_smf Motorhead_smf is offline
Know It All

Join Date: Nov 2013
Location: Metro Detroit
Posts: 171
Sportster/Buell Model: 88 sporty rigid
Sportster/Buell Year: 1988
Other Motorcycle Model: slabside shovel
Other Motorcycle Year: 1968
Reputation: 249
Motorhead_smf is on a distinguished roadMotorhead_smf is on a distinguished roadMotorhead_smf is on a distinguished road
Default

Yea that is definitely some carbon buildup. And that stuff did a hell of a job taking it off. I got some Twinkie take offs that aren't even that bad worth cleaning.
Reply With Quote
