  #111
Old 30th December 2018
Hippysmack's Avatar
Hippysmack Hippysmack is offline
XL FORUM TEAM MEMBER

Join Date: Jul 2014
Posts: 3,678
Sportster/Buell Model: Xl1250S
Sportster/Buell Year: 98
Other Motorcycle Model: Kawasaki Vulcan 500
Other Motorcycle Year: 95
Reputation: 2856866
Hippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond repute
Default

Quote:
Originally Posted by DirtyCory View Post

Longer shaft length-
NOS- 4.205
Other long shaft-4.210
Short shafts where all about 4.160ish

Shaft dia-
NOS-0.496
Others-0.495-0.4955

Gear thickness-
0.437 on all.

Distance from drive gear to retaining ring groove-
2.580 on all

I have one from an 86-90 gearshaft coming in at 4.209".


And the 79 shaft at 4.212"

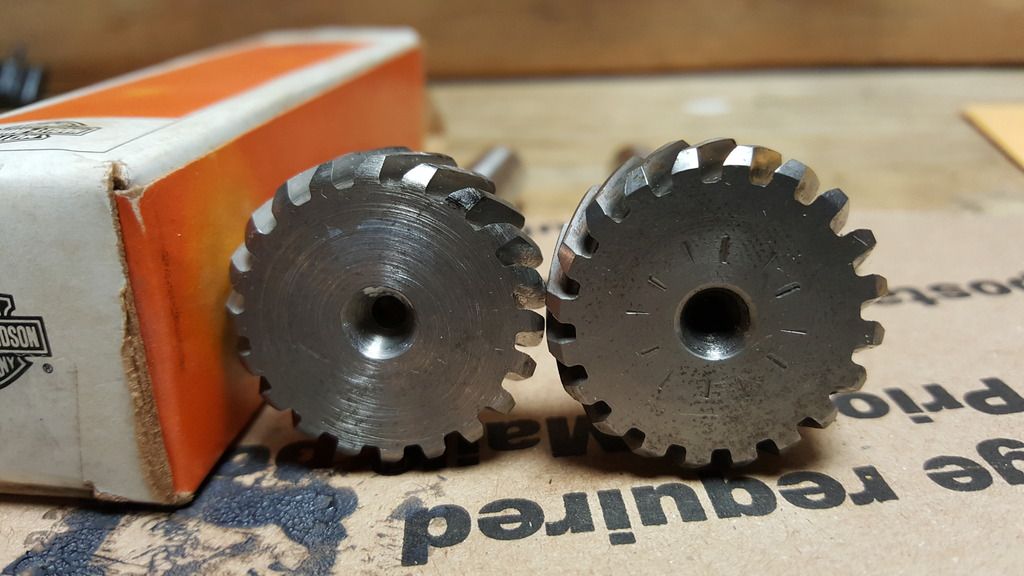

But, the 86 shaft only has 6 hash marks on the top of the gear where your L83-85 gear has 12.
Keep in mind all of these driveshafts are (26488-75) even though they are slightly different.


Exactly where did you measure from to get the dim on the retaining groove?


This seemed easier and more accurate to measure than eyeballing the hole.
86:


79:


The gear got about .003" thinner on the 86.


Than the 79
__________________
Reference the XLFORUM'S Sportsterpedia for additional technical information & advice

In Search of Fuel, Sunshine and a Steady Idle.
Reply With Quote
  #112
Old 30th December 2018
Hippysmack's Avatar
Hippysmack Hippysmack is offline
XL FORUM TEAM MEMBER

Join Date: Jul 2014
Posts: 3,678
Sportster/Buell Model: Xl1250S
Sportster/Buell Year: 98
Other Motorcycle Model: Kawasaki Vulcan 500
Other Motorcycle Year: 95
Reputation: 2856866
Hippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond repute
Default

The return gerotors sit between the pump body and inner plate.
(they actually sit down from the shelf about 5 thousandths from this view)
The return gerotors are app .50"
There are clearances, of course, that haven't been accounted for in this.



The plate sits on a shelf app .50" from the gerotor surface in the body.



When the spring washer pushes against the outer plate / feed gears;
It's actually pushing from the shelf that the inner plate sits on.
(not the return gerotors)

So, the resistance felt at the driveshaft gear is only generated from pressure against the feed gerotors.
Reply With Quote
  #113
Old 30th December 2018
Hippysmack's Avatar
Hippysmack Hippysmack is offline
XL FORUM TEAM MEMBER

Join Date: Jul 2014
Posts: 3,678
Sportster/Buell Model: Xl1250S
Sportster/Buell Year: 98
Other Motorcycle Model: Kawasaki Vulcan 500
Other Motorcycle Year: 95
Reputation: 2856866
Hippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond repute
Default Outer Plate Seal Comparison

12036:
The seal slides down the shaft and is pushed against the outer plate when the cover is buttoned up.
If the seal dries up or spring washer is flexed or worn, it will allow the seal to move off it's position on the outer plate.
And allow feed oil pressure to move up into the scavenge gerotors or even the gearcase.
(which would take feed pressure from the engine which operates just over check cracking pressure at hot idle)
It would also allow faster wet sumping while sitting still.

edit: That being said;
One side of the feed gerotor surface (in the cover) being worn and not the other can cause the spring washer to lopside the outer plate.
With the early style outer plate and seal, this could also cause wet sumping.


12036A:
This is an 86 pump but the seal is the same on 83-85 plates.
This is a better design.
The seal is pressed into the outer plate bore (reason for the steel outer shell)and not dependent on forced pressure to make contact to the plate.


Any oil that gets past the seal has to come from a loose fit between the seal and the gearshaft.


Here are both seals together. They are app the same dims.
I didn't figure it would do much good to measure them.
I distorted the -36 with solvent trying to get the pump apart, now it's hardened and dried up.
I distorted the -36A while knocking it out of the plate.

Last edited by Hippysmack; 30th December 2018 at 21:31..
