Default oil pump install

I will be putting the oil pump back on shortly. I have a new James Gaskets set. I have the FPM and FSM.

Was wondering if there's any particular nuances to it I should know about that the FSM doesn't include?
__________________
Stop by my build thread:

http://xlforum.net/forums/showthread.php?t=2076933


Four wheels move the body. Two wheels move the soul. Three wheels move the bowels.
Reply With Quote
  #2
Old 30th June 2022
brucstoudt's Avatar
brucstoudt brucstoudt is offline
XL FORUM TEAM MEMBER

Join Date: May 2010
Location: Pottstown PA.
Posts: 15,559
Sportster/Buell Model: xlch
Sportster/Buell Year: 1960
Sportster/Buell Model #2: 883 C
Sportster/Buell Year #2: '03
Reputation: 1346384
brucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond repute
Default

i've found to get it timed properly because of the spiral drive gear you have to lead it a bit before you start moving it in.you'll see what i mean if you try to time it by eye before installing it.most people won't get it the first time.but you'll learn.
__________________
72 1000cc barrels and heads, s&s 41/2'' flywheels, sifton cams, s&s super B w/ zippers thunderjet w/yost powertube, andrews gears,and shafts, competition engineering kevlar wet or dry clutch, 72 oil pump, morris magneto w/auto advance and single fire module, cycle electric generator w/electronic regulator,73 cu.in.
Reply With Quote
  #3
Old 1st July 2022
Gold Member's Avatar
Gold Member Gold Member is offline
XL FORUM TEAM MEMBER

Join Date: Nov 2017
Posts: 728
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1972
Reputation: 131839
Gold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud of
Default

So is there a way to mis-time it or easily do it so wrong the engine gets ruined?
Reply With Quote
  #4
Old 1st July 2022
Monte03's Avatar
Monte03 Monte03 is offline
XL FORUM TEAM MEMBER

Join Date: Mar 2008
Posts: 4,908
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1969
Sportster/Buell Model #2: 1966 XLCH
Other Motorcycle Model: BMW Twin
Other Motorcycle Year: 82
Reputation: 119329
Monte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud of
Default Oil Pump Install

Quote:
Originally Posted by Gold Member View Post
So is there a way to mis-time it or easily do it so wrong the engine gets ruined?
.. I would Say STOP , Locate a Service Manual and read up, the Breather ( pre 77 ) can be installed wrong, once you get your manual you will see that the pump is timed to the Pinion Gear, the Pushrods need to be removed and the Cam Cover Removed to witness this
__________________
Cycle World Oct 1962:
'The Sportster XLCH is not every Man's cup of tea - and we don't think it was intended as such'
Reply With Quote
  #5
Old 1st July 2022
Gold Member's Avatar
Gold Member Gold Member is offline
XL FORUM TEAM MEMBER

Join Date: Nov 2017
Posts: 728
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1972
Reputation: 131839
Gold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud of
Default

Okay here's where I'm at. I haven't looked at this project in a year. My memory SUCKS at my age now.

The FSM says to put heads on and take off in one procedure along with the push rods and push rod covers too I believe. I don't recall having to have the heads off in order to get the push rods out. Can't you pull the push rods out without having to take the heads off first??

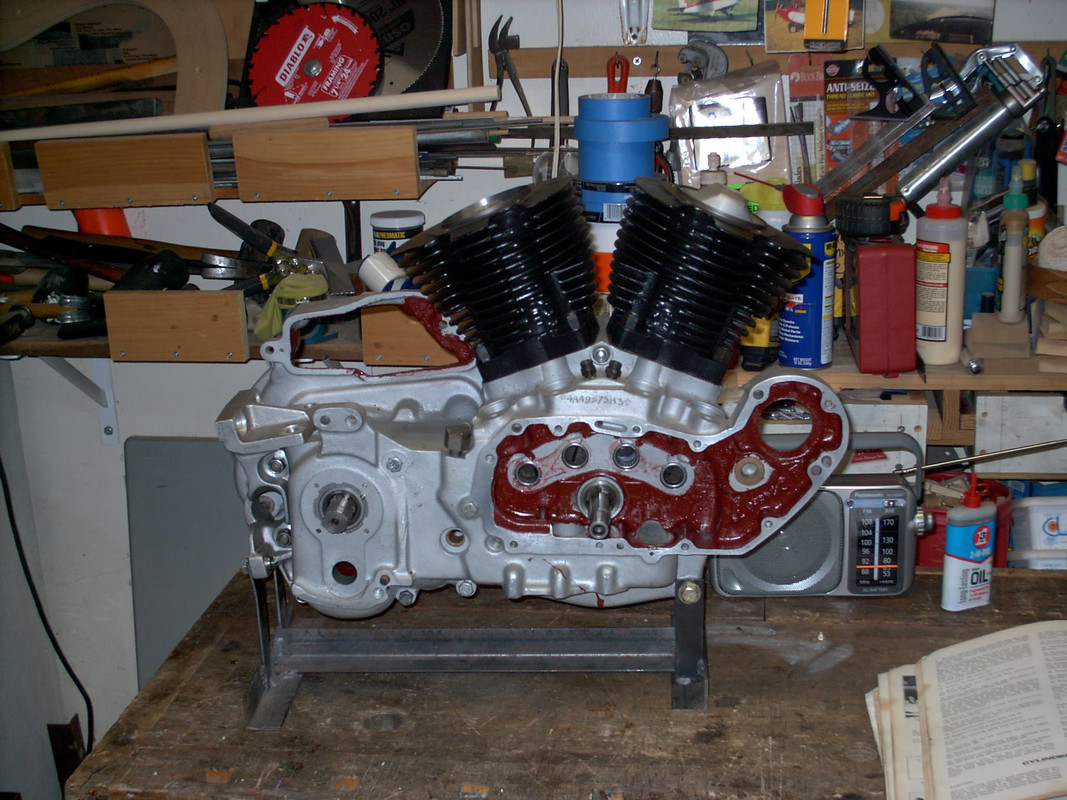

I'm wanting to install the oil pump and put the heads on along with the top motor mount so I can hang it from the ceiling with a come along and get it into the frame. I'm all set with the come along. Once what I have here is in the frame, then I'll put all the other engine parts in. IIRC I can do this in this order but I really don't remember. Can I do it this way?

[IMG][/IMG]
Reply With Quote
  #6
Old 1st July 2022
Monte03's Avatar
Monte03 Monte03 is offline
XL FORUM TEAM MEMBER

Join Date: Mar 2008
Posts: 4,908
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1969
Sportster/Buell Model #2: 1966 XLCH
Other Motorcycle Model: BMW Twin
Other Motorcycle Year: 82
Reputation: 119329
Monte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud of
Default

Install the Pinion Gear, it can only go on One way, see the Timing mark on the Pinion Gear Face ‘that is your start point ( you do not need to remove heads to install - remove pushrods, what manual is that Info coming from ? Your oil pump must be installed prior to setting the engine in the frame.

Last edited by Monte03; 1st July 2022 at 02:55..
Reply With Quote
  #7
Old 3rd July 2022
ryder rick ryder rick is offline
Senior Master Custom Bike Builder

Join Date: Jun 2008
Location: Cornelius, OR
Posts: 10,171
Reputation: 1247225
ryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond repute
Default

*NOTE* Oil pump timing is not done at the same point in rotation as the cam timing.
Reply With Quote
  #8
Old 3rd July 2022
Monte03's Avatar
Monte03 Monte03 is offline
XL FORUM TEAM MEMBER

Join Date: Mar 2008
Posts: 4,908
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1969
Sportster/Buell Model #2: 1966 XLCH
Other Motorcycle Model: BMW Twin
Other Motorcycle Year: 82
Reputation: 119329
Monte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud of
Default Pump Breather Timing

Quote:
Originally Posted by ryder rick View Post
*NOTE* Oil pump timing is not done at the same point in rotation as the cam timing.
... Correct, it is timed with the vertical flywheel Mark ( BEFORE Top Dead Center Vertical Mark) In the timing hole, that should place the Pin Gear Timing mark at about 11:00, the pre 77 pump breather DOT within the notch , Cam Timing is then off the Pinion Gear At about 11:00 as your starting point of Cam Installation
