Default Clutchlite ramps with pictures

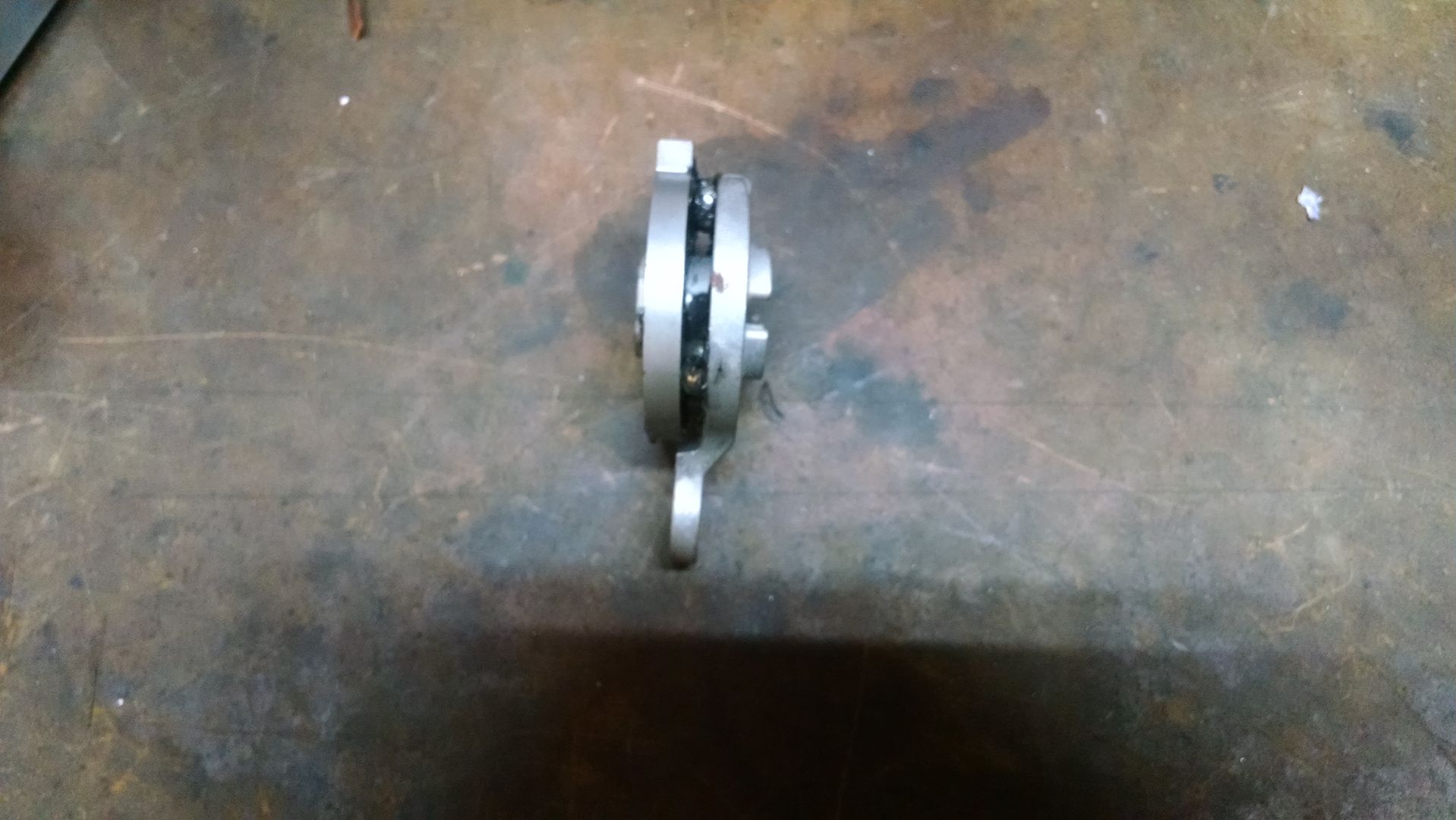

Left is X Soft right is XX Soft



Heres it is assembled with the XX Soft inner and MoCo outer and the 13/32" balls which are .03125 oversize, Hope this shit works with a 20% Barnett spring ,Barnett cable,and my Alto Carbonite clutch !

__________________
Thy Sportster Come
It Shall Be Done
On Earth as it is on Salt
2006 Sportster XL1250C
Hammer Sledge Heads 1.98X1.61 Valves
Hammer 600 Cams
Big Ass CP/Hammer Pistons
Mikuni HSR 45 /Hammer Billet Manifold (Now HSR 48)
Jetted 27.5 slow,182.5 Main
97 Needle,Clip posistion 3
Hurricane Flow 3" offset AC,Rocketman Mod
Daytona Twin Tec TC88A,Rico Scarecrow Map
Sumax Thundervolt plug wires,NGK DCPR8EIX spark plugs. Gapped .040 and Indexed
Cycle Electric Stator and Regulator
Alto Carbonite Clutch
Royal Purple 20W50 MC Primary oil
Patriot Defender Pipe
Royal Purple 20W50 MC Engine Oil
Napa 7148 oil filter
Max Power, 111.47
Max Torque, 84.39
Best 1/4 Mile ET to date 11.85
Best 1/4 Speed to date 115.14
Build by Jester Motorwerkz West
Reply With Quote
  #2
Old 18th April 2017
IXL2Relax's Avatar
IXL2Relax IXL2Relax is offline
XL FORUM TEAM MEMBER

Join Date: Feb 2013
Location: Let Freedom Ring in PA
Posts: 6,744
Sportster/Buell Model: Sportster 883►1200
Sportster/Buell Year: 1994
IXL2Relax has disabled reputation
Default

You can measure the rotation of the stock 'Ball & Ramp' and the width they achieve with that rotation...

Then, rotate the new combination the same amount (degrees rotation) and measure the width that combination achieves...

As long as the 'Ball & Ramp' separate to an equal distance as before, the clutch plates should be properly released... Then it's just a matter of setting the right starting point (just when you feel tension - 1/4 turn)...

http://sportsterpedia.com/doku.php/t...sign_operation

Be sure to update us on how it works out...

IXL 2 Relax
>>>> My Build & Ride Reports Are Here <<<<

Reference the Sportsterpedia
An XLForum collection of technical info & advice
__________________
### The ride is more enjoyable to nowhere in particular! ###
Reply With Quote
  #3
Old 18th April 2017
rocketmangb's Avatar
rocketmangb rocketmangb is offline
XL FORUM TEAM MEMBER

Join Date: Jan 2008
Location: So Cal
Posts: 21,133
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2006
Sportster/Buell Model #2: XL1200C
Sportster/Buell Year #2: 2006
Other Motorcycle Model: 48 "Totalled" By a Douche
Other Motorcycle Year: 2012
Reputation: 3768704
rocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond repute
Default

Total experiment on my part !
Reply With Quote
  #4
Old 15th May 2017
Hippysmack's Avatar
Hippysmack Hippysmack is offline
XL FORUM TEAM MEMBER

Join Date: Jul 2014
Posts: 4,936
Sportster/Buell Model: Xl1250S
Sportster/Buell Year: 98
Other Motorcycle Model: Kawasaki Vulcan 500
Other Motorcycle Year: 95
Reputation: 4359923
Hippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond reputeHippysmack has a reputation beyond repute
Default

What was the outcome?
__________________
Reference the XLFORUM'S Sportsterpedia for additional technical information & advice

In Search of Fuel, Sunshine and a Steady Idle.
Reply With Quote
  #5
Old 15th May 2017
rejeanprimeau's Avatar
rejeanprimeau rejeanprimeau is offline
XL FORUM TEAM MEMBER

Join Date: Jun 2011
Location: On a farm
Posts: 6,029
Sportster/Buell Model: XL77.2R
Sportster/Buell Year: 2006
Reputation: 2321953
rejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond reputerejeanprimeau has a reputation beyond repute
Default

Mine work fine, I adjust 1/4 and slightly more for the the locking plate falling in.
Reply With Quote
  #6
Old 15th May 2017
rocketmangb's Avatar
rocketmangb rocketmangb is offline
XL FORUM TEAM MEMBER

Join Date: Jan 2008
Location: So Cal
Posts: 21,133
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2006
Sportster/Buell Model #2: XL1200C
Sportster/Buell Year #2: 2006
Other Motorcycle Model: 48 "Totalled" By a Douche
Other Motorcycle Year: 2012
Reputation: 3768704
rocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond repute
Default

No time to install it yet !
Reply With Quote
  #7
Old 7th June 2017
jkinkade jkinkade is offline
Flat Track Champion

Join Date: Jan 2016
Location: on the Australian east coast
Posts: 655
Sportster/Buell Model: XLH 88" 2003.
Sportster/Buell Year: 2003
Reputation: 164691
jkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant future
Default

Will they fit 2003 XL1200?
__________________
2003 XL 88"
Reply With Quote
  #8
Old 7th June 2017
rocketmangb's Avatar
rocketmangb rocketmangb is offline
XL FORUM TEAM MEMBER

Join Date: Jan 2008
Location: So Cal
Posts: 21,133
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2006
Sportster/Buell Model #2: XL1200C
Sportster/Buell Year #2: 2006
Other Motorcycle Model: 48 "Totalled" By a Douche
Other Motorcycle Year: 2012
Reputation: 3768704
rocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond repute
Default

I believe so.
Reply With Quote
  #9
Old 7th June 2017
jkinkade jkinkade is offline
Flat Track Champion

Join Date: Jan 2016
Location: on the Australian east coast
Posts: 655
Sportster/Buell Model: XLH 88" 2003.
Sportster/Buell Year: 2003
Reputation: 164691
jkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant futurejkinkade has a brilliant future
Default

Quote:
Originally Posted by rocketmangb View Post
I believe so.
Thanks will fit one , felt clutch pull on new sporty at dealer other day, was feather light
Reply With Quote
Sponsored Links
  #10
Old 8th June 2017
rocketmangb's Avatar
rocketmangb rocketmangb is offline
XL FORUM TEAM MEMBER

Join Date: Jan 2008
Location: So Cal
Posts: 21,133
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2006
Sportster/Buell Model #2: XL1200C
Sportster/Buell Year #2: 2006
Other Motorcycle Model: 48 "Totalled" By a Douche
Other Motorcycle Year: 2012
Reputation: 3768704
rocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond reputerocketmangb has a reputation beyond repute
Default

The OEM inner ramp for a Sportster appears to be the same back to the 4 speed EVO.
25453-87A
See no reason it wont fit any 5 speed
Reply With Quote
