  #31
Old 4 Weeks Ago
kaveebee's Avatar
kaveebee kaveebee is offline
Chief Know It All

Join Date: Nov 2010
Posts: 442
Sportster/Buell Model: sportster xlch
Sportster/Buell Year: 1968
Other Motorcycle Model: kawasaki z1
Other Motorcycle Year: 1973
Reputation: 190540
kaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant future
Default

Quote:
Originally Posted by sleighcrane View Post
Finally someone to share my pain. ........... Good luck


Sent from my iPad using Tapatalk
That Turtle Tank looks good. How about a shot of the whole bike?
Reply With Quote
  #32
Old 4 Weeks Ago
sleighcrane's Avatar
sleighcrane sleighcrane is offline
XL FORUM TEAM MEMBER

Join Date: Nov 2016
Posts: 128
Sportster/Buell Model: XLH
Sportster/Buell Year: 1967
Other Motorcycle Model: FLHTK
Other Motorcycle Year: 2010
Reputation: 7436
sleighcrane is just really nicesleighcrane is just really nicesleighcrane is just really nicesleighcrane is just really nicesleighcrane is just really nicesleighcrane is just really nicesleighcrane is just really nicesleighcrane is just really nicesleighcrane is just really nicesleighcrane is just really nicesleighcrane is just really nice
Default

Ok here’s a fairly recent one. Qualicum Beach 2018


Sent from my iPad using Tapatalk
Reply With Quote
  #33
Old 4 Weeks Ago
kaveebee's Avatar
kaveebee kaveebee is offline
Chief Know It All

Join Date: Nov 2010
Posts: 442
Sportster/Buell Model: sportster xlch
Sportster/Buell Year: 1968
Other Motorcycle Model: kawasaki z1
Other Motorcycle Year: 1973
Reputation: 190540
kaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant futurekaveebee has a brilliant future
Default

Quote:
Originally Posted by sleighcrane View Post
Ok here’s a fairly recent one. Qualicum Beach 2018


Sent from my iPad using Tapatalk
Now you're talking. They balance each other out well, the tank and the nacelle. The seat and exhaust help give it that classic H look.
Reply With Quote
  #34
Old 4 Weeks Ago
BrokenIron BrokenIron is offline
Greasemonkey

Join Date: Apr 2017
Location: Oakley
Posts: 123
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1970
Sportster/Buell Model #2: '70 xlch
Other Motorcycle Model: Yamaha XS650
Other Motorcycle Year: '80
Reputation: 1718
BrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura about
Default

Quote:
Originally Posted by brianbbs67 View Post
Well you w
ere given the correct answer early in this thread and don't know why you ignored it. Hard spot to photo on a running bike.

IMG_0916 by brianbbs67, on Flickr
What answer was I given? And why sound rude about it? Did I not thank everyone enough? ( one more time ..)
THANK YOU!!!!!!

And I see that it’s not a huge, Noticeable piece..
However, with the trouble I’ve had just trying to get the factory speedo to work, dunno if I even want to deal with a similar piece. I think I may go to the bicycle style, I.e. electric...

So thank you again for your help, I’ll post back with pics of what I come up with
Reply With Quote
  #35
Old 4 Weeks Ago
BrokenIron BrokenIron is offline
Greasemonkey

Join Date: Apr 2017
Location: Oakley
Posts: 123
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1970
Sportster/Buell Model #2: '70 xlch
Other Motorcycle Model: Yamaha XS650
Other Motorcycle Year: '80
Reputation: 1718
BrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura about
Default

Quote:
Originally Posted by kaveebee View Post
Now you're talking. They balance each other out well, the tank and the nacelle. The seat and exhaust help give it that classic H look.
That is a true beauty! I’m not a “stock” guy, but that’s beautiful!
Great job!
Reply With Quote
  #36
Old 4 Weeks Ago
BrokenIron BrokenIron is offline
Greasemonkey

Join Date: Apr 2017
Location: Oakley
Posts: 123
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1970
Sportster/Buell Model #2: '70 xlch
Other Motorcycle Model: Yamaha XS650
Other Motorcycle Year: '80
Reputation: 1718
BrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura aboutBrokenIron has a spectacular aura about
Default

Quote:
Originally Posted by IronMick View Post
There are many. Do a Google search for free photo host. Here's a couple, there may be better...

https://postimg.org/
http://www.picturetrail.com/
I know huh, google is my friend.! I was just mindlessly rambling with my fingers, anyway, thanks for the links and thank you for everything you’ve helped with on this bike over the last year... I get my google on, on the regular !
Reply With Quote
Sponsored Links
  #37
Old 3 Weeks Ago
drumbrake drumbrake is offline
Biker

Join Date: Feb 2016
Posts: 25
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1972
Reputation: 2470
drumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the rough
Default

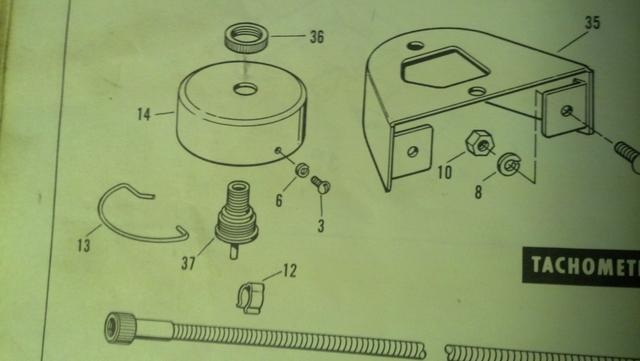

I took this picture from one of my big twin parts catalogs.

I think it is a better picture of the tach drive cover assembly.

At least it seems less confusing than the Sportster catalog picture.

[IMG][/IMG]
Reply With Quote
  #38
Old 3 Weeks Ago
drumbrake drumbrake is offline
Biker

Join Date: Feb 2016
Posts: 25
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1972
Reputation: 2470
drumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the roughdrumbrake is a jewel in the rough
Default

I found this interesting.

It seems like a good solution for putting a tach on a timer bike without the tach drive timer cover, or clearance for a cable etc.

I have never seen a Smiths style electric tach so you have to use the 70's style or newer, but it is bolt on and you don't have to modify anything on the bike.

Get a Superglide tach,a dual gauge mount and some wire and your good to go.

As far as I know all shovelhead superglide tachs were electric, nosecone shovelheads never had a place for a mechanical drive.

I learned the following from my 74 Superglide,

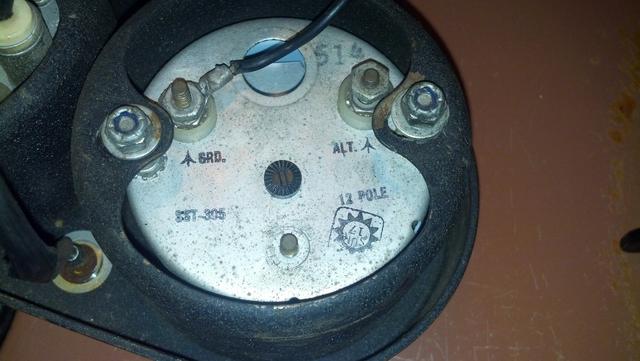

The 74 and 75 Superglide tachs ran from a wire from the voltage regulator, the signal for the tach came from the alternator.

This is a alternator signal tach, you can see one terminal says alt and the other is ground.

The 3rd terminal toward the bottom is also a ground it's the case ground for the illumination light.

This one will not work off of the ignition on any bike. It will only work with the matching alternator (a 12 pole) and regulator, Shovelhead.

[IMG][/IMG]h

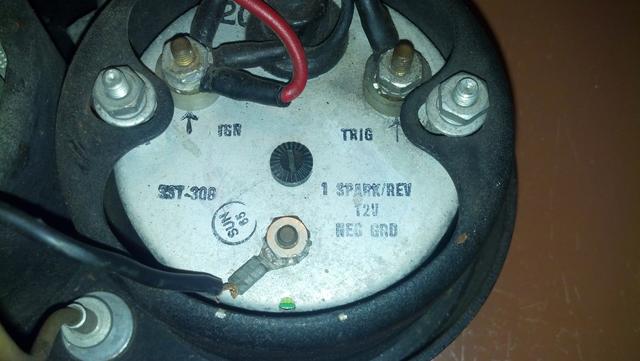

This one is a 76 and newer. The TRIG terminal connects to the points (timer) side of the coil and the other should go to the IGN terminal on the ignition switch. The third one on the bottom is also ground for the light.

It is set up for one spark per revolution.

[IMG][/IMG]

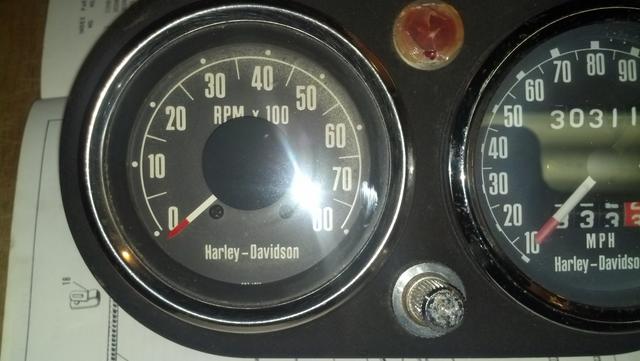

It's pretty easy to spot a Superglide (electronic) tach, they all have the big black dot on the face. The Sportster mechanical drive doesn't have that.

The back is what makes the difference.

[IMG][/IMG]

71-73 Superglides didn't come with a tach.

71&72 had the FLH dash and big speedometer.

73 had only the small speedometer.

A tach might have been an option in 73 but none of the books I have show it.

I know this is a lot of big twin stuff but it might help someone trying to use one of these tachs on a sportster.




Quote:
Originally Posted by sleighcrane View Post
I got my tachometer on eBay several in fact. I had the best luck with ones that were a little bit older style and the stock light bulb assembly worked with it as well. The newer version worked but had the same problem with them getting erratic after a few miles . I haven’t checked them since I changed my power source. These are two different types I used with the older one working for me as well but it’s a little dirty inside


Sent from my iPad using Tapatalk
Reply With Quote
  #39
Old 3 Weeks Ago
brianbbs67's Avatar
brianbbs67 brianbbs67 is online now
I have been revived

Join Date: Jul 2011
Posts: 9,197
Sportster/Buell Model: xlch
Sportster/Buell Year: 1961
Sportster/Buell Model #2: Xl 883n
Sportster/Buell Year #2: 2010
Other Motorcycle Model: XL CE Tribute
Other Motorcycle Year: 1977
Reputation: 820270
brianbbs67 has a reputation beyond reputebrianbbs67 has a reputation beyond reputebrianbbs67 has a reputation beyond reputebrianbbs67 has a reputation beyond reputebrianbbs67 has a reputation beyond reputebrianbbs67 has a reputation beyond reputebrianbbs67 has a reputation beyond reputebrianbbs67 has a reputation beyond reputebrianbbs67 has a reputation beyond reputebrianbbs67 has a reputation beyond reputebrianbbs67 has a reputation beyond repute
Default

Quote:
Originally Posted by mrmom9r View Post
Whoever told you it's on the top of the dist. is right. You don't have the right cap.

The tach drive caps are getting hard to find ,but they do pop up on ebay from time to time.
Quote:
Originally Posted by Magneto Sportster View Post
Mrmom9r is correct. The tach on a 1970 model attaches to a drive in the top of the timer. If your cap doesn't have the drive, you have the wrong cap.
Quote:
Originally Posted by BrokenIron View Post
Could someone please post a pic of this Timer cap with a spot for a Speedo drive? There is not one pic on the entire internet?? I’ve seen 10-12 different bikes, same year, all have same distributor that mine has, all have this flat top? What in the short and fkn curlys is going on? It can’t be this...wait, it’s an Ironhead, yes it can...
This is what I meant. You got 2 answers and ignored them and I got you a crappy but illustrative pic and you ignored the first posts to you thread, even when I confirmed them.
__________________
Ok, now I'm revived
Reply With Quote
Reply

Bookmarks


Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump



Sponsored Links
All times are GMT +1. The time now is 03:06.


Powered by vBulletin® Version 3.8.11
Copyright ©2000 - 2018, vBulletin Solutions Inc.
XL Forum® - Linson Media LLC
