  #41
Old 13th August 2016
piniongear's Avatar
piniongear piniongear is offline
Master Custom Bike Builder

Join Date: Dec 2009
Posts: 3,065
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1971
Other Motorcycle Model: FXDL
Other Motorcycle Year: 2003
Reputation: 26296
piniongear is a name known to allpiniongear is a name known to allpiniongear is a name known to allpiniongear is a name known to allpiniongear is a name known to allpiniongear is a name known to allpiniongear is a name known to allpiniongear is a name known to allpiniongear is a name known to allpiniongear is a name known to allpiniongear is a name known to all
Default

Quote:
Originally Posted by doodah man View Post
good to see you around, pg! i'm glad business is good.
Thanks Doodah.
Hope you are doing well.
I need to get my Sporty running again because it has not been started in two years or more.

The roller starter business is certainly keeping me busy. About the time I sell all I have on hand I get another order or two. The production line has just kept rolling for the past 2 years. I am beginning to get a number of buyers who own old Panheads and British bikes, along with the racers.
pg
__________________
Rolling down the highway on two wheels since 1957...
Owner Red/White 1971 XLCH & 2003 FXDL-Silver over Black
Reply With Quote
  #42
Old 13th August 2016
randy3934's Avatar
randy3934 randy3934 is offline
Senior Custom Bike Builder

Join Date: Dec 2011
Location: under a roof
Posts: 2,820
Sportster/Buell Model: xlh 1000
Sportster/Buell Year: 1977
Sportster/Buell Model #2: 1979 and 1969 XLCH
Other Motorcycle Model: FXE Superglide
Other Motorcycle Year: 1980
Reputation: 108524
randy3934 has much to be proud ofrandy3934 has much to be proud ofrandy3934 has much to be proud ofrandy3934 has much to be proud ofrandy3934 has much to be proud ofrandy3934 has much to be proud ofrandy3934 has much to be proud ofrandy3934 has much to be proud ofrandy3934 has much to be proud ofrandy3934 has much to be proud ofrandy3934 has much to be proud of
Default

looks like you'll have no problem turning her over pinion.
__________________
I'm not a complete idiot, some parts are missing.
Reply With Quote
  #43
Old 14th August 2016
DR DICK's Avatar
DR DICK DR DICK is offline
Senior Master Custom Bike Builder

Join Date: Jan 2010
Posts: 6,391
Reputation: 306015
DR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond repute
Default

problem:
Quote:
Originally Posted by ediv View Post
I run a bendix on my CH with the hard wire internal throttle and getting clean throttle action has always been a challenge.
solution:
use the oe 72-73 bendix to hard wire setup as george says.
Quote:
Originally Posted by curiousgeorge View Post
If you look in a 70`s parts book you will find bracket #27449-72 and clamp #39679-72 that were used on the 72 and 73 with hard wire throttle cable. The throttle shaft is the clue. the 74-E76 has a shaft that works with the bracket shown in the very first picture.
can also use the -57 cable bracketry instead of of the -72 stuff. they very similar.
then get the 72 style throttle shaft.
__________________
D.D._____________________________-o&o____________________________
Reply With Quote
  #44
Old 19th July 2018
Russ t nail's Avatar
Russ t nail Russ t nail is offline
Biker

Join Date: Jun 2015
Posts: 21
Sportster/Buell Model: Xlh
Sportster/Buell Year: 1975
Reputation: 10
Russ t nail is an unknown quantity at this point
Default Secondary return spring

Does anyone have a photo of a carb that had a secondary return spring added to it ? The spring on my 1975 bendix isn't closing my throttle all of the way
Reply With Quote
  #45
Old 19th July 2018
curiousgeorge curiousgeorge is offline
Flat Track Racer

Join Date: May 2013
Posts: 220
Sportster/Buell Model: XLH
Sportster/Buell Year: 67
Reputation: 5343
curiousgeorge is just really nicecuriousgeorge is just really nicecuriousgeorge is just really nicecuriousgeorge is just really nicecuriousgeorge is just really nicecuriousgeorge is just really nicecuriousgeorge is just really nicecuriousgeorge is just really nicecuriousgeorge is just really nicecuriousgeorge is just really nicecuriousgeorge is just really nice
Default

There was more than one shaft return spring used on a bendix, one was very strong. Also make sure you are not trying to overcome another problem.
Reply With Quote
Sponsored Links
  #46
Old 19th July 2018
Russ t nail's Avatar
Russ t nail Russ t nail is offline
Biker

Join Date: Jun 2015
Posts: 21
Sportster/Buell Model: Xlh
Sportster/Buell Year: 1975
Reputation: 10
Russ t nail is an unknown quantity at this point
Default

The worn return spring was the last thing I thought of I thought manifold leak or fuel starvation was causing my idle increase while sitting then I happens to push down on the throttle can and she calmed down I don't think I could fit a whisker in the gap that's how small it is but it has a big effect. I stretched a push style spring and wrapped it around the cam and throttle cable fitting it worked to get me home but im looking for something a bit neater. I do plan on replacing the spring but the screws in the plate ( butterfly) are pretty chewed up I'd like to hold off on that possible can of worms till its cold out. I'm just looking to see if there are any pictures on here where someone else did the same thing
Reply With Quote
  #47
Old 19th July 2018
Iron Mike Iron Mike is offline
Chief Harley Engineer

Join Date: Dec 2014
Location: Phoenix
Posts: 524
Sportster/Buell Model: xlch
Sportster/Buell Year: 1964
Sportster/Buell Model #2: XLCH IR EFI
Sportster/Buell Year #2: 1971
Other Motorcycle Model: BMW K1200RS
Other Motorcycle Year: 2001
Reputation: 48753
Iron Mike is a splendid one to beholdIron Mike is a splendid one to beholdIron Mike is a splendid one to beholdIron Mike is a splendid one to beholdIron Mike is a splendid one to beholdIron Mike is a splendid one to beholdIron Mike is a splendid one to beholdIron Mike is a splendid one to beholdIron Mike is a splendid one to beholdIron Mike is a splendid one to beholdIron Mike is a splendid one to behold
Default

Make sure your throttle plate is installed in the proper direction, and also that it is centered in the bore and not binding.
Reply With Quote
  #48
Old 20th July 2018
Russ t nail's Avatar
Russ t nail Russ t nail is offline
Biker

Join Date: Jun 2015
Posts: 21
Sportster/Buell Model: Xlh
Sportster/Buell Year: 1975
Reputation: 10
Russ t nail is an unknown quantity at this point
Default

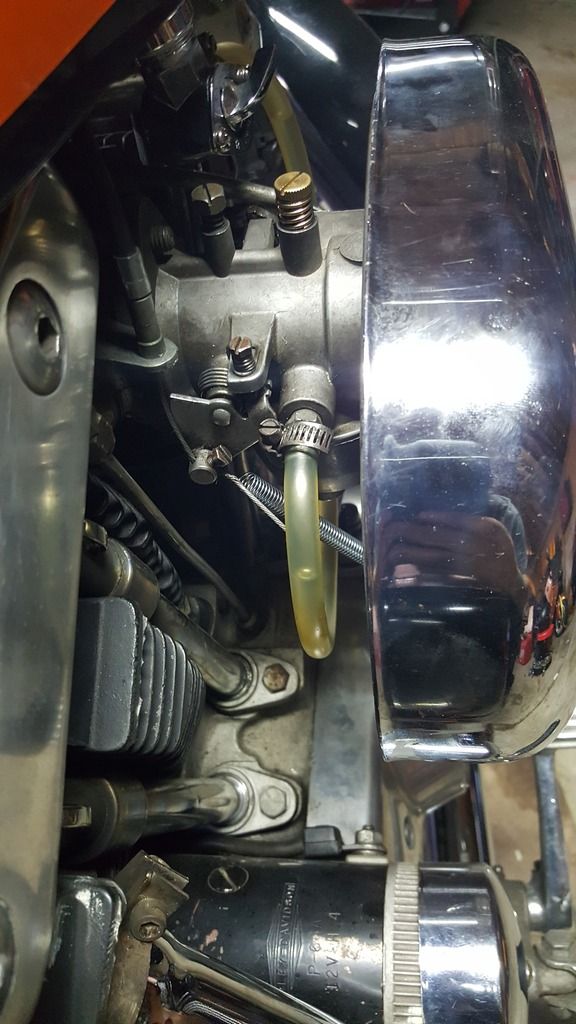

Thanks . That's all good the spring is very tired It will move side to side if you were to blow on it hard enough . I did add a spring today
Reply With Quote
  #49
Old 20th July 2018
doodah man's Avatar
doodah man doodah man is online now
Senior Master Custom Bike Builder

Join Date: May 2009
Location: 37° 25' 28" N by -80° 03' 42" W
Posts: 9,556
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1975
Reputation: 303345
doodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond repute
Default

hell, it hides nicely behind the air cleaner. probably not much to improve on there - if it works, it works, go forth and enjoy the summer!
