Smile Fixing a leaky top end... with pics!

My '05 XL1200C has this annoying oil leak, which I've been ignoring for the second half of last season, but it's making a mess of my bike, and I've got at least another month to kill before I get my medical suspension lifted and I can ride my Sporty again, so... time to dig out the tools and start turnin' wrenches!

I got some great answers and ideas from this thread and have a .030 Cometic gasket kit on order from Hammer Performance (thanks Dan) so I began surgery yesterday.

Here's the ugly leak at the front cylinder, the rocker boxes look dry, as do the fins above the head gasket. Looks like a base leak here also.



The base of the rear jug is even uglier

__________________
John from Windsor Ontario
'00 FXDL
;^)
Reply With Quote
  #2
Old 26th March 2012
JohnK's Avatar
JohnK JohnK is offline
Senior Custom Bike Builder

Join Date: Jan 2011
Location: South Western Ontario
Posts: 2,904
Sportster/Buell Model: Dearly Departed XL1200C
Sportster/Buell Year: 2005
Other Motorcycle Model: FXDL Low Rider
Other Motorcycle Year: 2000
Reputation: 201832
JohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant future
Default

Off with the seat, AC, heat shields and let's get down to business



Disconnect the fuel lines, unbolt and pull the tank... a handy 'tank holder' to avoid damaging the petcock



...but wait a minute, what's this? Looks like a CHIP IN THE CLEARCOAT!!

Proof positive that no matter how long I've been wrenching, I'm still a rank amateur

Don't be a lazy dipshyte like me, drain the tank to make it easier to handle and put some padding between the tank and the SPEEDOMETER HOUSING!

Reply With Quote
  #3
Old 26th March 2012
AsSeenOnTV AsSeenOnTV is offline
Banned

Join Date: Jul 2009
Location: a liddo northwest of you
Posts: 6,323
Sportster/Buell Model: Sportster
Sportster/Buell Year: 2008
Reputation: 338766
AsSeenOnTV has a reputation beyond reputeAsSeenOnTV has a reputation beyond reputeAsSeenOnTV has a reputation beyond reputeAsSeenOnTV has a reputation beyond reputeAsSeenOnTV has a reputation beyond reputeAsSeenOnTV has a reputation beyond reputeAsSeenOnTV has a reputation beyond reputeAsSeenOnTV has a reputation beyond reputeAsSeenOnTV has a reputation beyond reputeAsSeenOnTV has a reputation beyond reputeAsSeenOnTV has a reputation beyond repute
Default

Sorry to hear about the tank chip John.

Looking forward to seeing this thread progress.
Reply With Quote
  #4
Old 26th March 2012
JohnK's Avatar
JohnK JohnK is offline
Senior Custom Bike Builder

Join Date: Jan 2011
Location: South Western Ontario
Posts: 2,904
Sportster/Buell Model: Dearly Departed XL1200C
Sportster/Buell Year: 2005
Other Motorcycle Model: FXDL Low Rider
Other Motorcycle Year: 2000
Reputation: 201832
JohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant future
Default

Awright... on with the show, soak the exhaust nuts with some Liquid Wrench while I work on other stuff, else I'll be calling sportsterpaul for advice on how to remove busted studs



Pull the carb and intake manifold

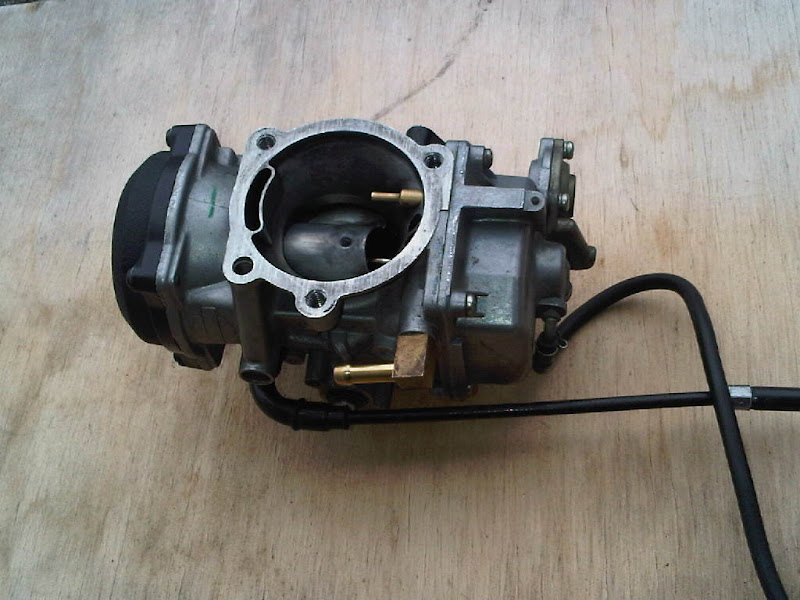

Carb is relatively clean, spray with carb cleaner and wipe off some of the grunge and set aside

Reply With Quote
  #5
Old 26th March 2012
sportsterpaul's Avatar
sportsterpaul sportsterpaul is offline
XL FORUM TEAM MEMBER

Join Date: Jan 2009
Location: In a swamp/Michigan
Posts: 14,134
Sportster/Buell Model: XL1460C
Sportster/Buell Year: 2000
Sportster/Buell Model #2: XL1200R
Sportster/Buell Year #2: 2006
Other Motorcycle Model: XL1200R
Other Motorcycle Year: 2004
Reputation: 10825831
sportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond reputesportsterpaul has a reputation beyond repute
Default

Good start John, I'm not that far so if you have to "McGyver" something give me a shout!
__________________
I.B.A.#26543, Growing old-Mandatory/ Growing up-optional. Men do not quit playing because they get old, they get old because they stop playing!

The XL Forum Sportsterpedia:
http://sportsterpedia.com/doku.php/start
Reply With Quote
  #6
Old 26th March 2012
JohnK's Avatar
JohnK JohnK is offline
Senior Custom Bike Builder

Join Date: Jan 2011
Location: South Western Ontario
Posts: 2,904
Sportster/Buell Model: Dearly Departed XL1200C
Sportster/Buell Year: 2005
Other Motorcycle Model: FXDL Low Rider
Other Motorcycle Year: 2000
Reputation: 201832
JohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant future
Default

Pull the mufflers off... looky here, we have a crossover leak! Good thing I picked up a couple gaskets at the parts counter during the last visit.

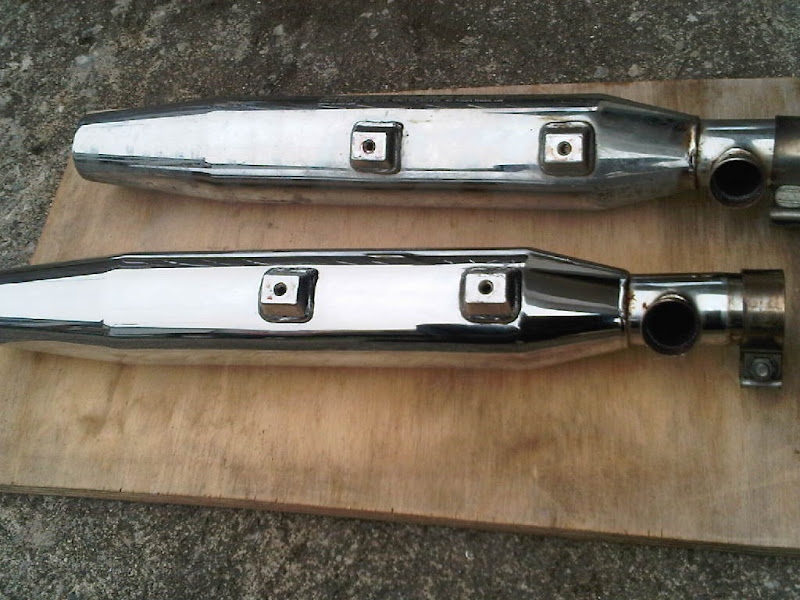

A few good douses of carb cleaner and ten minutes with a shop rag and this muffler is as clean as it's going to get in my lifetime. Damb... now I have to do the other one.

Reply With Quote
  #7
Old 26th March 2012
aemsee's Avatar
aemsee aemsee is offline
Senior Chief Master Mechanic 1st Class

Join Date: Nov 2010
Location: central NY
Posts: 1,229
Sportster/Buell Model: xl883c
Sportster/Buell Year: 2007
Reputation: 300133
aemsee has a reputation beyond reputeaemsee has a reputation beyond reputeaemsee has a reputation beyond reputeaemsee has a reputation beyond reputeaemsee has a reputation beyond reputeaemsee has a reputation beyond reputeaemsee has a reputation beyond reputeaemsee has a reputation beyond reputeaemsee has a reputation beyond reputeaemsee has a reputation beyond reputeaemsee has a reputation beyond repute
Default

is the one that was all dirty the rear muffler? could just be from the front one. mine is like that
Reply With Quote
  #8
Old 26th March 2012
JohnK's Avatar
JohnK JohnK is offline
Senior Custom Bike Builder

Join Date: Jan 2011
Location: South Western Ontario
Posts: 2,904
Sportster/Buell Model: Dearly Departed XL1200C
Sportster/Buell Year: 2005
Other Motorcycle Model: FXDL Low Rider
Other Motorcycle Year: 2000
Reputation: 201832
JohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant future
Default

Remove horn and bracket from other side



Remove head pipes. When I put the nuts on last year (after I lost a couple) I used high temp copper anti-seize, torqued to spec (10 ft/lbs) and checked they were not loose before each ride. They stayed put even with the anti-seize, and it sure made them come off easy now. In the exhaust port you can see the SE gaskets, I'm not too happy with the way they seal on the stock pipes ...just around the edge instead of on the taper. They are in good shape but I will replace them anyway with the standard gaskets. Also clear in this pic is the oil leakage which is the primary goal of this exercise



A quick peak inside the front intake port shows a pleasant surprise: no oil



The rear intake is just as clean. After spending a few nights reading the oil consumption threads I was prepared for a nasty sight.



The exhausts had a fair layer of carbon, but were dry also. This I'm happy with. I have been experiencing some more oil coming out of the AC than when I got the bike, but consumption seems to be negligible. I do tend to dump 3 quarts in when I do the oil change, which is more than the recommended 2.8 so that may account for the breather oil.
Reply With Quote
  #9
Old 26th March 2012
JohnK's Avatar
JohnK JohnK is offline
Senior Custom Bike Builder

Join Date: Jan 2011
Location: South Western Ontario
Posts: 2,904
Sportster/Buell Model: Dearly Departed XL1200C
Sportster/Buell Year: 2005
Other Motorcycle Model: FXDL Low Rider
Other Motorcycle Year: 2000
Reputation: 201832
JohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant future
Default

Quote:
Originally Posted by aemsee View Post
is the one that was all dirty the rear muffler? could just be from the front one. mine is like that
Yes it was, I was thinking the same thing and you're probably correct. The last time I had the exhaust off, it didn't look like the crossovers were sealing very well, so I bought a couple new seals for the next occasion. There are a few leaks in my exhaust system that I'll have to take some care with this time, but I've not noticed any leak induced anomalies like pops etc.
Reply With Quote
Sponsored Links
  #10
Old 26th March 2012
JohnK's Avatar
JohnK JohnK is offline
Senior Custom Bike Builder

Join Date: Jan 2011
Location: South Western Ontario
Posts: 2,904
Sportster/Buell Model: Dearly Departed XL1200C
Sportster/Buell Year: 2005
Other Motorcycle Model: FXDL Low Rider
Other Motorcycle Year: 2000
Reputation: 201832
JohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant futureJohnK has a brilliant future
Default

Quote:
Originally Posted by AsSeenOnTV View Post
Sorry to hear about the tank chip John.

Looking forward to seeing this thread progress.
Thanks, it's one of those nagging 'oops' that no one will notice, but it will bug me to no end

Quote:
Originally Posted by sportsterpaul View Post
Good start John, I'm not that far so if you have to "McGyver" something give me a shout!
Appreciate the offer and will keep it in mind
Reply With Quote
