  #41
Old 12th August 2019
dnmccoy dnmccoy is offline
Biker

Join Date: Jul 2019
Posts: 16
Sportster/Buell Model: 1200
Sportster/Buell Year: 1999
Reputation: 10
dnmccoy is an unknown quantity at this point
Default

Quote:
Originally Posted by IXL2Relax View Post
But if the wheel HUB is wider than stock, then the spacers must be altered to compensate for that - so that the overall measurement of spacers, bearings & washers from inside of the right slider leg to inside of the left slider leg remains the same total amount as from stock configuration... That will allow the axle threads to protrude the same amount as stock...


IXL _______ >>>> My Motorcycle Chronicles Are Here <<<<
For FREE Sportster Tech Info from the XLForum:
Explore The Sportsterpedia - The Best Kept Secret on the XLForum!


Im thinking its not the OEM wheel. Any way to tell what wheel it may be without ripping the tire off?
Reply With Quote
  #42
Old 12th August 2019
IXL2Relax's Avatar
IXL2Relax IXL2Relax is offline
XL FORUM TEAM MEMBER

Join Date: Feb 2013
Location: Let Freedom Ring in PA
Posts: 8,287
Sportster/Buell Model: Sportster 883►1200
Sportster/Buell Year: 1994
IXL2Relax has disabled reputation
Default

Quote:
Originally Posted by dnmccoy View Post
Im thinking its not the OEM wheel. Any way to tell what wheel it may be without ripping the tire off?
I'm not sure - The HUBS, SPOKES & RIMS can often be mixed from various sources...

Are the bearings the Timken-type or are they sealed bearings?

IXL _______ >>>> My Motorcycle Chronicles Are Here <<<<
For FREE Sportster Tech Info from the XLForum:
Explore The Sportsterpedia - The Best Kept Secret on the XLForum!
__________________
### The ride is more enjoyable to nowhere in particular! ###
Reply With Quote
  #43
Old 12th August 2019
Tomcatt Tomcatt is offline
Dazed & Confused

Join Date: Feb 2019
Location: Never Never Land
Posts: 1,962
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2017
Other Motorcycle Model: BMW R9T
Other Motorcycle Year: 2015
Reputation: 2513872
Tomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond repute
Default

Quote:
Originally Posted by IXL2Relax View Post
Are the bearings the Timken-type or are they sealed bearings?
From post #15. If you have better screen resolution than my antique you can maybe read the brg #'s.
__________________
2017 XL1200C in SE Wisconsin, USA
Reply With Quote
  #44
Old 13th August 2019
IXL2Relax's Avatar
IXL2Relax IXL2Relax is offline
XL FORUM TEAM MEMBER

Join Date: Feb 2013
Location: Let Freedom Ring in PA
Posts: 8,287
Sportster/Buell Model: Sportster 883►1200
Sportster/Buell Year: 1994
IXL2Relax has disabled reputation
Default

Quote:
Originally Posted by Tomcatt View Post
From post #15. If you have better screen resolution than my antique you can maybe read the brg #'s.

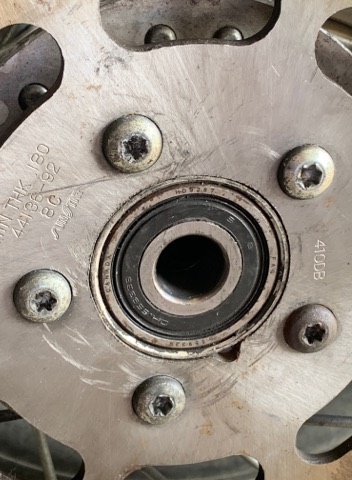

Yep - The bearing is H-D 9267 - Sealed Bearing
- Meaning the hub is very likely from 2000-later (or maybe from a BT model)


On the 2000-2007 models, the spacers used were:
Left 43617-00A with a width of .520
Right 43358-00 with a width of .140

Meaning - the total width of the Outer Bearing Spacers was .660 for 2000


On the earlier 1995-1999 models, the spacers used were:
Left 43617-95 with a width of .930
Right 43358-83A with a width of .380

Meaning - the total width of the Outer Bearing Spacers was 1.310 for 1999


Some of the difference in those widths is in the fact, as I mentioned earlier, that the earlier models used Timken-type bearings with separate oil seals (which were essentially flush with the face of the hub) and the Outer Bearing Spacers were inserted thru those seals so that they were butted against the inner race of the Timken-type bearings... While the later ones were sealed bearings where the inner race of the bearing was essentially flush with the hub face...


IXL _______ >>>> My Motorcycle Chronicles Are Here <<<<
For FREE Sportster Tech Info from the XLForum:
Explore The Sportsterpedia - The Best Kept Secret on the XLForum!
Reply With Quote
  #45
Old 13th August 2019
harley506d's Avatar
harley506d harley506d is offline
XL FORUM TEAM MEMBER

Join Date: May 2017
Location: Lubersac/France
Posts: 1,789
Sportster/Buell Model: 1200c
Sportster/Buell Year: 2005
Reputation: 3522068
harley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond repute
Default

So, after IXL2Relax's good info, measure the hub width from bearing to bearing face, then measure between forks and see what you come up with and then add spacer width specs.
You may have to buy new 2000 up spacers and axle. Although you could turn down the axle to the 2000 up size and have the machine shop make you new spacers to the 2000 up sizes.
__________________
"Procrastination is the thief of time"................90's Harley ad.
"Don't wait for your ship to come in, swim out and meet the bloody thing".................Barry Sheene.
Reply With Quote
  #46
Old 13th August 2019
Tomcatt Tomcatt is offline
Dazed & Confused

Join Date: Feb 2019
Location: Never Never Land
Posts: 1,962
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2017
Other Motorcycle Model: BMW R9T
Other Motorcycle Year: 2015
Reputation: 2513872
Tomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond repute
Default

Quote:
Originally Posted by harley506d View Post
...measure the hub width from bearing to bearing face, then measure between forks and see what you come up with and then add spacer width specs.
You may have to buy new 2000 up spacers and axle...
If he has the hub and wheel centered in the forks and his disc is aligned with the caliper, why would he need to do anything more?
Reply With Quote
  #47
Old 13th August 2019
harley506d's Avatar
harley506d harley506d is offline
XL FORUM TEAM MEMBER

Join Date: May 2017
Location: Lubersac/France
Posts: 1,789
Sportster/Buell Model: 1200c
Sportster/Buell Year: 2005
Reputation: 3522068
harley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond repute
Default

Quote:
Originally Posted by Tomcatt View Post
If he has the hub and wheel centered in the forks and his disc is aligned with the caliper, why would he need to do anything more?
Would you be happy knowing you had the wrong axle in and making up the distance with washers? I have a sneaky feeling you would want it right.
Reply With Quote
  #48
Old 13th August 2019
Tomcatt Tomcatt is offline
Dazed & Confused

Join Date: Feb 2019
Location: Never Never Land
Posts: 1,962
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2017
Other Motorcycle Model: BMW R9T
Other Motorcycle Year: 2015
Reputation: 2513872
Tomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond reputeTomcatt has a reputation beyond repute
Default

Quote:
Originally Posted by harley506d View Post
Would you be happy knowing you had the wrong axle in and making up the distance with washers? I have a sneaky feeling you would want it right.
There's nothing wrong with the axle, he could measure his left side spacer stack and see if there's an OE spacer the right length. As a matter of convenience I'd tack weld the spacers together if I kept them. The one thing I would do is put a thinner washer under the nut so there was at least on exposed thread beyond the nut, or maybe just get a flanged nut with a single washer under it. I can't think of anything more useless than spring washers, I routinely replace them.
Reply With Quote
  #49
Old 13th August 2019
Toejam503's Avatar
Toejam503 Toejam503 is online now
Air-cooled Forever

Join Date: May 2010
Location: Dakota Territory
Posts: 3,083
Sportster/Buell Model: XL 1200 C
Sportster/Buell Year: 2006
Sportster/Buell Model #2: (Prev.Own)XLH Milw.Spec.
Sportster/Buell Year #2: 1981
Reputation: 6358724
Toejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond reputeToejam503 has a reputation beyond repute
Default

When you say "spring washer" is this the same as a "lock washer"?


Lock Washer
Reply With Quote
  #50
Old 13th August 2019
harley506d's Avatar
harley506d harley506d is offline
XL FORUM TEAM MEMBER

Join Date: May 2017
Location: Lubersac/France
Posts: 1,789
Sportster/Buell Model: 1200c
Sportster/Buell Year: 2005
Reputation: 3522068
harley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond reputeharley506d has a reputation beyond repute
Default

Quote:
Originally Posted by Tomcatt View Post
There's nothing wrong with the axle, he could measure his left side spacer stack and see if there's an OE spacer the right length. As a matter of convenience I'd tack weld the spacers together if I kept them. The one thing I would do is put a thinner washer under the nut so there was at least on exposed thread beyond the nut, or maybe just get a flanged nut with a single washer under it. I can't think of anything more useless than spring washers, I routinely replace them.
If he bought an axle for what he thought was for a '99 hub then the head length is too long so the axle is not going in far enough. The head will contact the first spacer too early leaving the usable shaft too short. Look at the axle specs in Sportsterpedia.
Reply With Quote
