Default trans spacer question

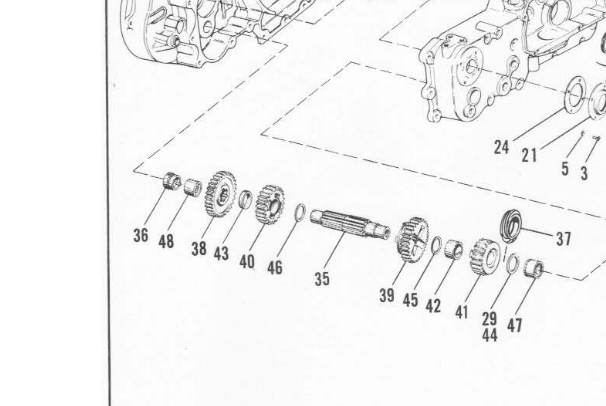

Shouldn't there be a spacer/washer between gear #38 and the door?



[IMG][/IMG]
__________________
Stop by my build thread:

http://xlforum.net/forums/showthread.php?t=2076933
Reply With Quote
  #2
Old 1 Week Ago
ryder rick's Avatar
ryder rick ryder rick is offline
Senior Master Custom Bike Builder

Join Date: Jun 2008
Location: Cornelius, OR
Posts: 9,406
Reputation: 1114996
ryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond repute
Default

In this case the parts book is not wrong.
__________________
Ryder Rick "I know right from wrong, but sometimes, wrong feels right"
Reply With Quote
  #3
Old 6 Days Ago
Gold Member's Avatar
Gold Member Gold Member is offline
XL FORUM TEAM MEMBER

Join Date: Nov 2017
Posts: 515
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1972
Reputation: 115187
Gold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud of
Default

So there's no spacer there? My gear is shiny from rubbing up against something.
Reply With Quote
  #4
Old 6 Days Ago
ryder rick's Avatar
ryder rick ryder rick is offline
Senior Master Custom Bike Builder

Join Date: Jun 2008
Location: Cornelius, OR
Posts: 9,406
Reputation: 1114996
ryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond repute
Default

The trap door.

They don't call me Ironhead Rick just because I'm hard headed
Reply With Quote
  #5
Old 6 Days Ago
Gold Member's Avatar
Gold Member Gold Member is offline
XL FORUM TEAM MEMBER

Join Date: Nov 2017
Posts: 515
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1972
Reputation: 115187
Gold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud ofGold Member has much to be proud of
Default

Yes I know but spinning steel up against aluminum without a washer? Okay but it doesn't make sense to me.
Reply With Quote
  #6
Old 6 Days Ago
needspeed needspeed is offline
XL FORUM LIFE MEMBER

Join Date: May 2014
Posts: 1,297
Sportster/Buell Model: xlh
Sportster/Buell Year: 1974
Reputation: 892822
needspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond reputeneedspeed has a reputation beyond repute
Default

Quote:
Originally Posted by Gold Member View Post
Yes I know but spinning steel up against aluminum without a washer? Okay but it doesn't make sense to me.

I've always wondered why Harley did it that way too. Seems it would be better to have a hardened steel thrust washer there. (they use one on the other side of the countershaft) But consider this:

An aluminum piston lives for thousands of miles in a cast iron cylinder at very high heat, high speed with alot of thrust applied to the skirt. Made posible by an oil film.

Steel tappets that have a lot of side thrust go up and down in aluminum guides.

Steel oil pump gears turn in an aluminum pump body.

In a perfect world there is no side thrust with spur gears on parallel shafts, so a steel gear should be able to run against the aluminum door with an oil film.

However I have seen trans doors that the gear has worn into, but that is usually because something else is worn or set wrong.

The C shaft drive gear has a raised circular ring on one side and that goes against the door. In a way, that acts as a spacer, keeping most of the gear from touching the door.
