Default Boardtracker Project

My board track replica is coming along and I'm putting together the '71 Ironhead that'll power it.
Where I can I'm doing a little detailing to make the engine look older.

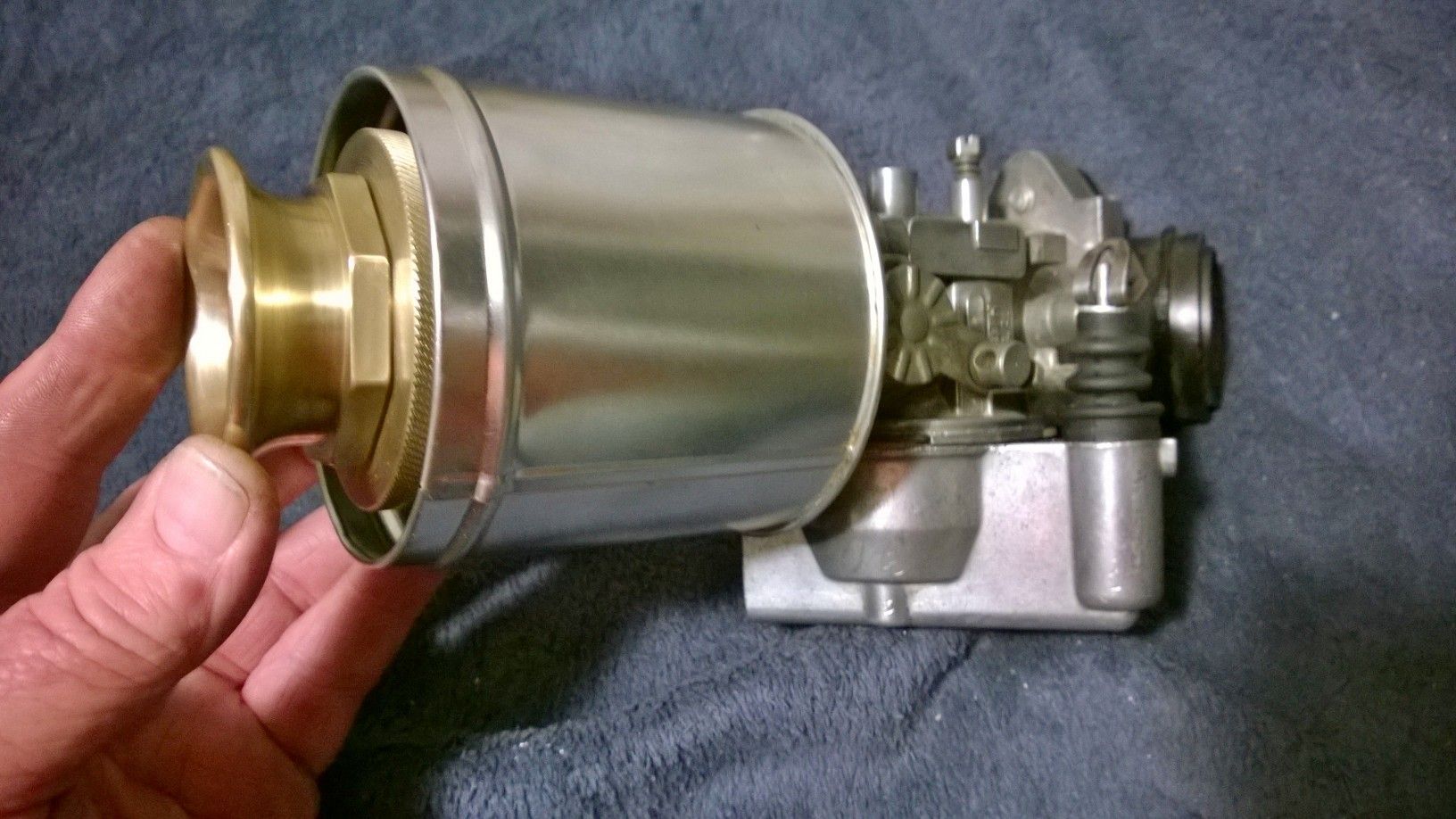

My Zenith carb looked entirely too new so I went to work on it.
By turning some pieces out of scrap brass and stripping the label off the can a christmas gift tie came in, I went for the 1920's Schebler Model H look.
From what I gather; the tin can was there mostly to keep the larger board track splinters and dirt clods out. Must have worked because there are lots of vintage photos showing that set-up.
Mine will include a copper mesh filter element (similar to the original washable copper mesh HD filters) that wraps around the inner perforated sleeve and fills the can giving my engine clean, filtered air.

Here's a Schebler from that era and my add-on to "age" my Zenith a few decades.



Last edited by JonesL; 6 Days Ago at 19:08..
Reply With Quote
  #2
Old 12th February 2014
Pan55's Avatar
Pan55 Pan55 is offline
Master Custom Bike Builder

Join Date: Oct 2011
Posts: 3,335
Sportster/Buell Model: Sportster
Sportster/Buell Year: 77
Sportster/Buell Model #2: XLH
Sportster/Buell Year #2: 77
Other Motorcycle Model: 1978 FX Shovelhead
Reputation: 34337
Pan55 is a splendid one to beholdPan55 is a splendid one to beholdPan55 is a splendid one to beholdPan55 is a splendid one to beholdPan55 is a splendid one to beholdPan55 is a splendid one to beholdPan55 is a splendid one to beholdPan55 is a splendid one to beholdPan55 is a splendid one to beholdPan55 is a splendid one to beholdPan55 is a splendid one to behold
Default

very nice Jonesl

that's the details I love to see...where someone creates*....this in turn will somewhere inspire another....

tips my hat to you Sir...
Reply With Quote
  #3
Old 13th February 2014
Hopper's Avatar
Hopper Hopper is offline
Senior Master Custom Bike Builder

Join Date: Dec 2007
Location: Australia
Posts: 9,370
Sportster/Buell Model: XLCH 1000
Sportster/Buell Year: 1977
Sportster/Buell Model #2: 75 motor in Norton frame.
Other Motorcycle Model: 42WLA 45, Harton, Narley
Other Motorcycle Year: 1942
Reputation: 256674
Hopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant futureHopper has a brilliant future
Default

Nice work. Looking forward to seeing the finished bike.
__________________
In theory there is no difference between theory and practice. In practice there is.
Reply With Quote
  #4
Old 13th February 2014
JonesL JonesL is offline
XL FORUM TEAM MEMBER

Join Date: Dec 2013
Posts: 670
Sportster/Buell Model: XL
Sportster/Buell Year: 1971
Reputation: 443233
JonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond repute
Default

Glad to share. That's where the fun is; Sportster people helping each other.
Reply With Quote
  #5
Old 13th February 2014
JonesL JonesL is offline
XL FORUM TEAM MEMBER

Join Date: Dec 2013
Posts: 670
Sportster/Buell Model: XL
Sportster/Buell Year: 1971
Reputation: 443233
JonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond repute
Default

Thanks Hopper,

Getting ready to add a little surface texture to my axle plates. Last frame part to make is the "forging" under the seat where the backbones, down tube and upper legs for the hardtail meet up. Get those last pieces finished and I can start laying up and putting the frame together. I'm machining all the pieces that were castings or forgings on the original frames out or domestic 1050 steel billet. It machines good and with that much carbon, can be tempered or hardened as needed. Donor piece was a scrap diesel locomotive axle.
All tube to fauxging joints will be tack welded then brazed like the factory frames.
Inline open-spring springer parts (tube legs, inserts for the tube ends and the rockers) are roughed out as well as upper and lower triple trees. Just gotta fit and finish.
Springs are just cut down fork springs for now. Once I get it up on it's wheels I can get a better idea of how much "spring" my springs will need.
More as the project progresses.
Reply With Quote
  #6
Old 20th July 2014
JonesL JonesL is offline
XL FORUM TEAM MEMBER

Join Date: Dec 2013
Posts: 670
Sportster/Buell Model: XL
Sportster/Buell Year: 1971
Reputation: 443233
JonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond repute
Default Frame dimension needed

I'm building my own frame including making the forgings/castings for the axle plates as well as other components. Luckily I have more than enough of the original frame so it's more like repairing or restoring than a full-on fabrication. I'm currently setting up a bolt-on hard tail and need to know the dimension from inside face of one axle plate to the inside face of the opposite axle plate. I should be able to measure a stock 1971 swing arm... if I had one on hand.
Anybody able to give me this measurement?

Last edited by JonesL; 1 Week Ago at 21:26..
Reply With Quote
  #7
Old 20th July 2014
Mosey Mosey is offline
Senior Master Custom Bike Builder

Join Date: Nov 2008
Location: SoCal, SFV
Posts: 6,349
Sportster/Buell Model: xlh
Sportster/Buell Year: 1982
Other Motorcycle Model: FX
Other Motorcycle Year: 1976
Reputation: 855041
Mosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond repute
Default

Oh my oh my! Those are so pretty!

Looks like a solid start to a frame. Will you be brazing the frame tubes into the neck and axle forgings? Are you planning on making more forgings?
Reply With Quote
  #8
Old 20th July 2014
DR DICK's Avatar
DR DICK DR DICK is offline
Senior Master Custom Bike Builder

Join Date: Jan 2010
Posts: 6,399
Reputation: 315119
DR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond repute
Default

nine point three seventy five.
__________________
D.D._____________________________-o&o____________________________
Reply With Quote
  #9
Old 20th July 2014
mrmom9r's Avatar
mrmom9r mrmom9r is offline
XL FORUM TEAM MEMBER

Join Date: Jan 2011
Posts: 2,260
Sportster/Buell Model: dragbike
Sportster/Buell Year: 1960
Reputation: 262941
mrmom9r has a brilliant futuremrmom9r has a brilliant futuremrmom9r has a brilliant futuremrmom9r has a brilliant futuremrmom9r has a brilliant futuremrmom9r has a brilliant futuremrmom9r has a brilliant futuremrmom9r has a brilliant futuremrmom9r has a brilliant futuremrmom9r has a brilliant futuremrmom9r has a brilliant future
Default

Inside to inside is 9 1/4".

The parts are pretty.
Reply With Quote
  #10
Old 20th July 2014
JonesL JonesL is offline
XL FORUM TEAM MEMBER

Join Date: Dec 2013
Posts: 670
Sportster/Buell Model: XL
Sportster/Buell Year: 1971
Reputation: 443233
JonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond repute
Default

Thanks for the kind words; and the dimensions.
After everything is fitted and aligned, the pieces will be tacked in place then silver soldered together just like the factory did.

To be honest, the "forgings" are machined out of 1050 steel billet then shaped and textured for a rough cast look. A lot of work but it gives me the "look" I want.
I'm using a pair of flat-sided late teens/early twenties style tanks so a double backbone set-up is going to take some engineering.
This is for a sportster powered board track replica I'm building so I'm trying to give everything a retro look to carry the theme. Got some other ideas in mind for the engine to change it's appearance and it looks like I'll be building my own springer front end too.
But hey... a boy's gotta have a hobby, right?
