  #21
Old 12th August 2014
JonesL JonesL is offline
XL FORUM TEAM MEMBER

Join Date: Dec 2013
Posts: 670
Sportster/Buell Model: XL
Sportster/Buell Year: 1971
Reputation: 443233
JonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond repute
Default

My castings or "fauxgings" (fake forgings) as I call them, are actually machined out of 1050 steel billet. The donor stock is a diesel locomotive axle I bought as scrap.
After I machine them out and shape them, I go over the surfaces with a needle scaler (usually used to remove heavy rust or mill scale prior to welding) which gives them the rough texture similar to a casting.

hcrashster, Yep, domestic .120"wall DOM tubing. Like the original board trackers, only one down tube from neck to my one to two adapter.

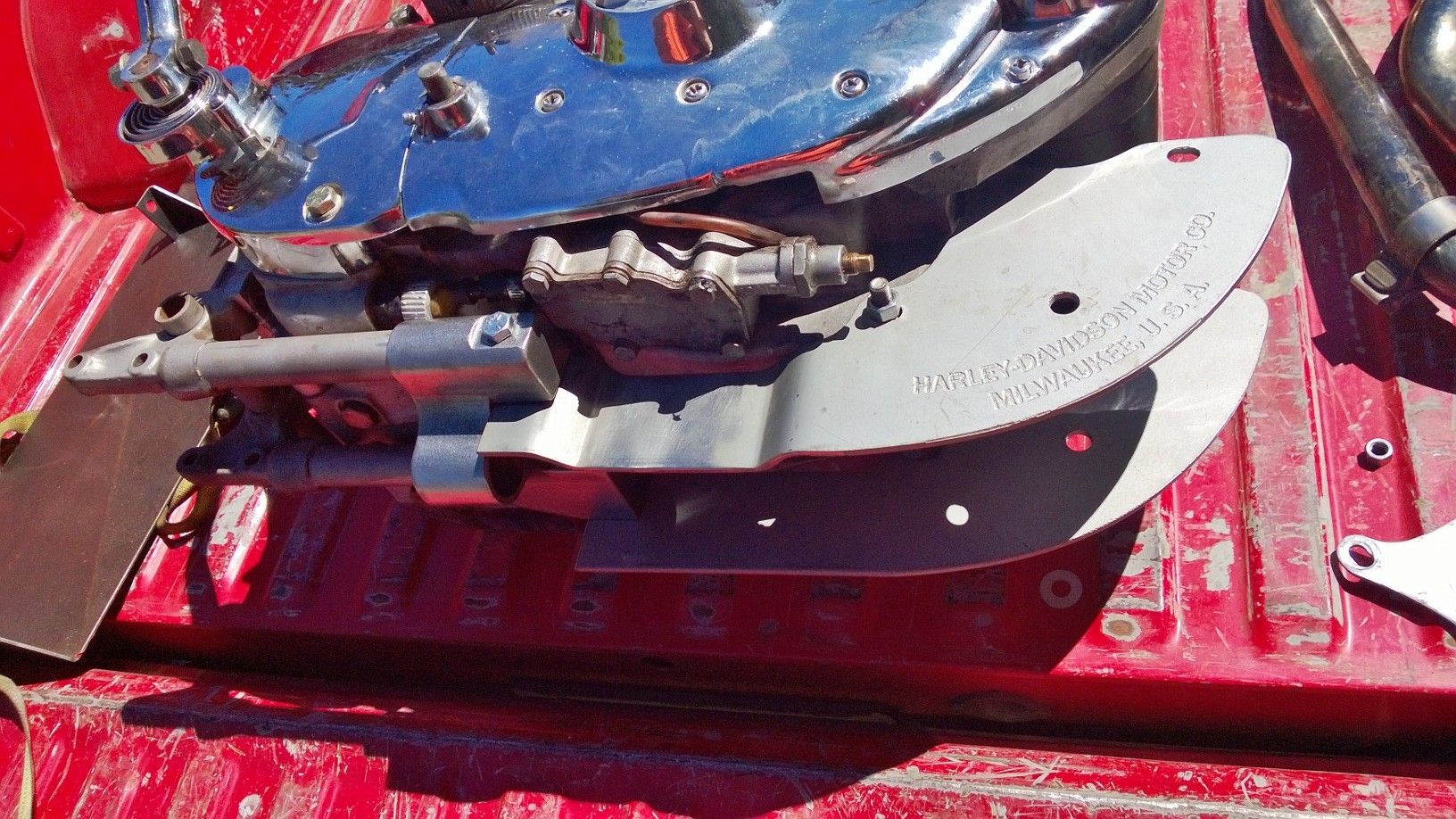

Extra support is provided by engine plates I copied from period photographs.

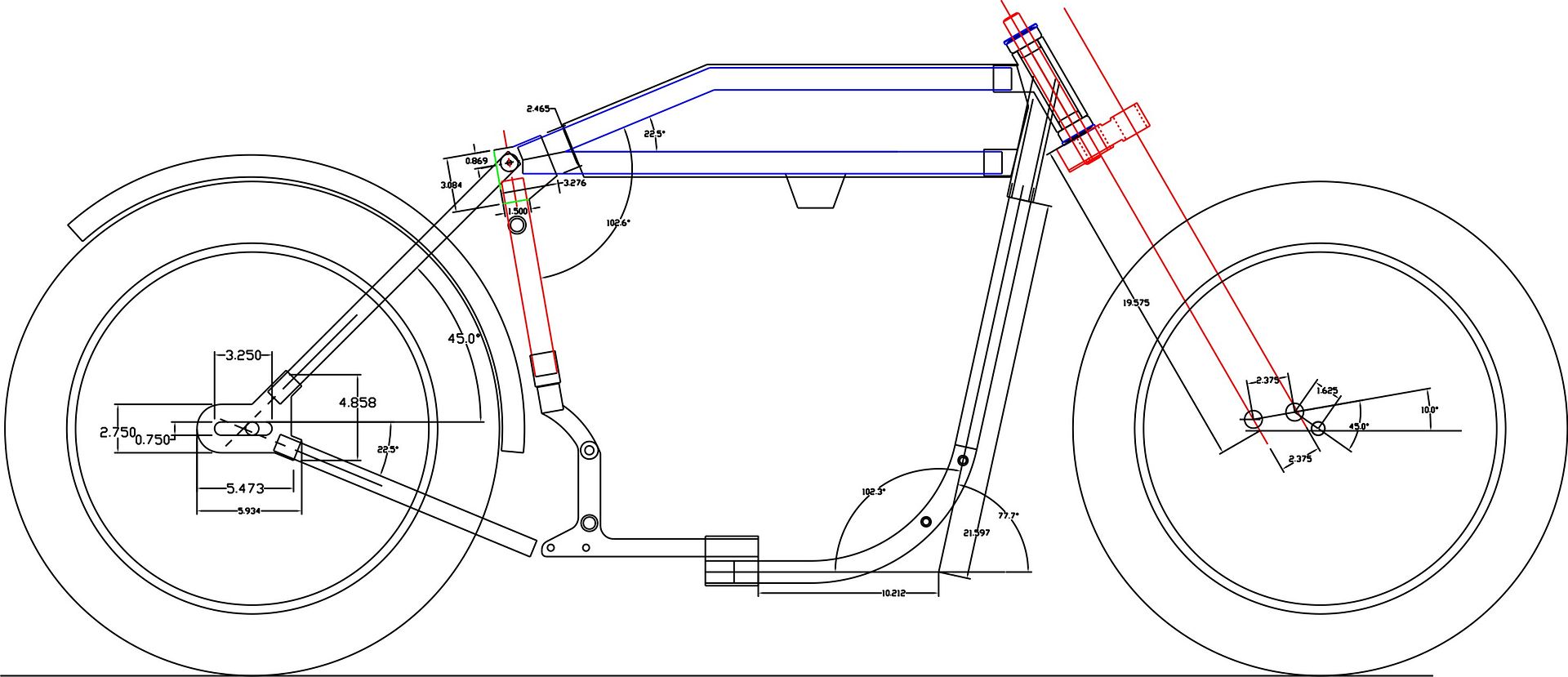

merc, Here's a drwg. of my frame.


Last edited by JonesL; 1 Week Ago at 19:09..
Reply With Quote
  #22
Old 12th August 2014
loridr's Avatar
loridr loridr is offline
Harley Engineer

Join Date: Dec 2013
Location: Around the corner
Posts: 336
Sportster/Buell Model: xl1200r
Sportster/Buell Year: 2006
Other Motorcycle Model: HD FLHTK
Other Motorcycle Year: 2013
Reputation: 141168
loridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant future
Default

I love these things, can't wait to see this come together. What do you plan on running for a front end and are you planning on fabing it?
Reply With Quote
  #23
Old 12th August 2014
JonesL JonesL is offline
XL FORUM TEAM MEMBER

Join Date: Dec 2013
Posts: 670
Sportster/Buell Model: XL
Sportster/Buell Year: 1971
Reputation: 443233
JonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond repute
Default

loridr,

Because I can't find one commercially that I like the looks of, I'm going to copy the early springer design complete with the tall, exposed top springs.
I've already got my upper and lower triple trees about 75% done (starting to do the final shaping and texturing) as well as the stiffener for the free ends of the forward down legs. Got all the tube ends and rockers machined and once the frame is done and on the frame stand, I can start to cut the tube legs to length.

Somedays I feel like the only things I'm not going to end up doing is growing the rubber for the tires and smelting the steel. But hey, a boy's gotta have a hobby, right?
Reply With Quote
  #24
Old 12th August 2014
hcrashster's Avatar
hcrashster hcrashster is offline
Senior Master Custom Bike Builder

Join Date: Jul 2009
Location: SW Pennsylvania
Posts: 4,276
Sportster/Buell Model: XLH Spinegrinder
Sportster/Buell Year: 1978
Sportster/Buell Model #2: XLCH Frankenstien
Sportster/Buell Year #2: 1976
Other Motorcycle Model: Triumph Groanyville
Other Motorcycle Year: 1972
Reputation: 109194
hcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud of
Default

Outstanding. I see the game plan now.

I have few regrets in life, but one of them was not becoming a machinist.
Probably for the best as I'm certain that 2+2= 3.9968

This is going to be a wild looking bike.
__________________
Ordinarily he is insane, but he has his lucid moments when he is only stupid
Reply With Quote
  #25
Old 12th August 2014
JonesL JonesL is offline
XL FORUM TEAM MEMBER

Join Date: Dec 2013
Posts: 670
Sportster/Buell Model: XL
Sportster/Buell Year: 1971
Reputation: 443233
JonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond repute
Default

Quote:
Originally Posted by hcrashster View Post
Outstanding. I see the game plan now.

I have few regrets in life, but one of them was not becoming a machinist.
Probably for the best as I'm certain that 2+2= 3.9968

This is going to be a wild looking bike.
Ah-ha... the plot thins. Glad to share and clarify.

I think I have as much fun figuring out how to make the various pieces so that they fit and do their job as I do riding the finished bike.

Re; 2+2=3.9968 ... it doesn't?
I've seen some old machinist's rulers graduated down to 1/128" increments.
I figure if I'm close to the marks on my yardstick, I'm all but there.
Reply With Quote
  #26
Old 12th August 2014
loridr's Avatar
loridr loridr is offline
Harley Engineer

Join Date: Dec 2013
Location: Around the corner
Posts: 336
Sportster/Buell Model: xl1200r
Sportster/Buell Year: 2006
Other Motorcycle Model: HD FLHTK
Other Motorcycle Year: 2013
Reputation: 141168
loridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant future
Default

Quote:
Originally Posted by JonesL View Post
loridr,

Because I can't find one commercially that I like the looks of, I'm going to copy the early springer design complete with the tall, exposed top springs.
Extreme Cool.
Reply With Quote
  #27
Old 12th August 2014
hcrashster's Avatar
hcrashster hcrashster is offline
Senior Master Custom Bike Builder

Join Date: Jul 2009
Location: SW Pennsylvania
Posts: 4,276
Sportster/Buell Model: XLH Spinegrinder
Sportster/Buell Year: 1978
Sportster/Buell Model #2: XLCH Frankenstien
Sportster/Buell Year #2: 1976
Other Motorcycle Model: Triumph Groanyville
Other Motorcycle Year: 1972
Reputation: 109194
hcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud ofhcrashster has much to be proud of
Default

1/128"??

Damn 0.0078125 raises it's ugly head again, but who are we to argue with 7 decimal points to the right accuracy?

Please keep us posted on your build.
Reply With Quote
  #28
Old 12th August 2014
brucstoudt's Avatar
brucstoudt brucstoudt is online now
Senior Master Custom Bike Builder

Join Date: May 2010
Location: Pottstown PA.
Posts: 14,285
Sportster/Buell Model: xlch
Sportster/Buell Year: 1960
Reputation: 824099
brucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond reputebrucstoudt has a reputation beyond repute
Default

Quote:
Originally Posted by JonesL View Post
My castings or "fauxgings" (fake forgings) as I call them, are actually machined out of 1050 steel billet. The donor stock is a diesel locomotive axle I bought as scrap.
After I machine them out and shape them, I go over the surfaces with a needle scaler (usually used to remove heavy rust or mill scale prior to welding) which gives them the rough texture similar to a casting.

hcrashster, Yep, domestic .120"wall DOM tubing. Like the original board trackers, only one down tube from neck to my one to two adapter.
Extra support is provided by engine plates I copied from period photographs.


with the single down tube you'll be able to remove the oil pump,without removing the motor. i'm still thinking about how the extra plate's will compensate,for the missing down tube.
__________________
72 1000cc barrels and heads, s&s 41/2'' flywheels, sifton cams, s&s super B w/ zippers thunderjet w/yost powertube, andrews gears,and shafts, competition engineering kevlar wet or dry clutch, 72 oil pump, morris magneto w/auto advance and single fire module, cycle electric generator w/electronic regulator,73 cu.in.
Reply With Quote
  #29
Old 13th August 2014
JonesL JonesL is offline
XL FORUM TEAM MEMBER

Join Date: Dec 2013
Posts: 670
Sportster/Buell Model: XL
Sportster/Buell Year: 1971
Reputation: 443233
JonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond repute
Default

From the neck to the top frame bolt, the down tube is straight and fairly short so I'm not too worried about flex there. As the down tube starts to curve back, the plates will add rigidity.
Also, unlike the 1" factory frames which have a larger thru-hole with bushing, the bolt holes in my 1 1/4" down tubes are drilled for the bolt diameter only. Further adding to strength, the flat-faced bushings that bridge between down tube and motor mount plates are "fish-mouthed" then tack welded to the outside walls of the down tube. The final touch is silver soldering the bushings so that the joints have complete contact/adhesion.
I studied the stock frame I salvaged the rear trans mount from and this is the way the factory did the tubing-to-forging joints.

Last edited by JonesL; 1 Week Ago at 21:28..
Reply With Quote
  #30
Old 13th August 2014
loridr's Avatar
loridr loridr is offline
Harley Engineer

Join Date: Dec 2013
Location: Around the corner
Posts: 336
Sportster/Buell Model: xl1200r
Sportster/Buell Year: 2006
Other Motorcycle Model: HD FLHTK
Other Motorcycle Year: 2013
Reputation: 141168
loridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant futureloridr has a brilliant future
Default

Should work fine Jones. That's the quandary of building a board tracker from a Sportster, a board tracker just isn't a board tracker without a single loop frame.

I think you've come as close to replicating the style as best as can be accomplished with the way the Sportster engine mounts in the frame.
Reply With Quote
