Default Drum brake rod interferes with hardtail frame

I'm trying to build a 1971 XLCH chopper and I mocked up the rear wheel this weekend.

When the wheel is lined up in the center of the frame, the rear brake rod wouldn't be able to mount to the drum - it interferes with the frame. See the picture below:

https://ibb.co/pvrqrhD

What are some ways around this? I was thinking I could flip the lever arm upside down (180degrees) so that the brake rod would be below the axle instead of above, but I read some forum posts advising against that.

What are my options?
Reply With Quote
  #2
Old 2nd November 2020
Iron Mike Iron Mike is online now
Custom Bike Builder

Join Date: Dec 2014
Location: Phoenix
Posts: 2,311
Sportster/Buell Model: xlch
Sportster/Buell Year: 1964
Sportster/Buell Model #2: XLCH IR EFI
Sportster/Buell Year #2: 1971
Other Motorcycle Model: BMW K1200RS
Other Motorcycle Year: 2001
Reputation: 1726771
Iron Mike has a reputation beyond reputeIron Mike has a reputation beyond reputeIron Mike has a reputation beyond reputeIron Mike has a reputation beyond reputeIron Mike has a reputation beyond reputeIron Mike has a reputation beyond reputeIron Mike has a reputation beyond reputeIron Mike has a reputation beyond reputeIron Mike has a reputation beyond reputeIron Mike has a reputation beyond reputeIron Mike has a reputation beyond repute
Default

That’s a cable set up rear backing plate.
Reply With Quote
  #3
Old 3rd November 2020
Tim The Grim's Avatar
Tim The Grim Tim The Grim is offline
MetalWorkingXLFan

Join Date: Jun 2011
Location: Far West Texas
Posts: 560
Sportster/Buell Model: XL1200V
Sportster/Buell Year: 2013
Sportster/Buell Model #2: KHK
Sportster/Buell Year #2: 1954
Other Motorcycle Model: Valkyrie
Other Motorcycle Year: 97
Reputation: 1962594
Tim The Grim has a reputation beyond reputeTim The Grim has a reputation beyond reputeTim The Grim has a reputation beyond reputeTim The Grim has a reputation beyond reputeTim The Grim has a reputation beyond reputeTim The Grim has a reputation beyond reputeTim The Grim has a reputation beyond reputeTim The Grim has a reputation beyond reputeTim The Grim has a reputation beyond reputeTim The Grim has a reputation beyond reputeTim The Grim has a reputation beyond repute
Default

Yup, that’s a cable type backing plate.

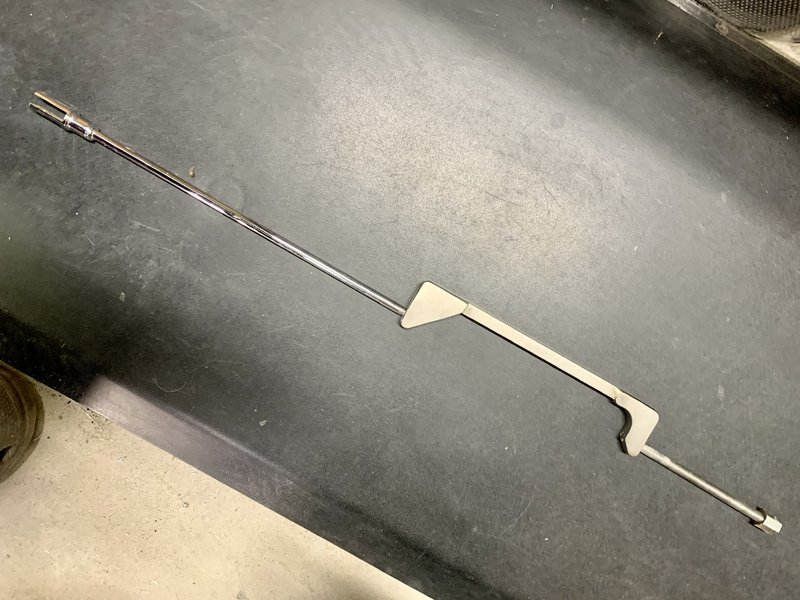

If you insist on a rod...This is what I did before I switched to a disc.
It’s kinda overkill but it worked.
__________________
'54 KHK (Current Build), '13 XL”72” Hard Candy, '97 Honda Valkyrie. I’m Retired 🥃
Reply With Quote
  #4
Old 3rd November 2020
kitabel kitabel is offline
Chief Master Mechanic

Join Date: Oct 2019
Posts: 455
Sportster/Buell Model: 883 Evo
Sportster/Buell Year: 1989
Reputation: 169469
kitabel has a brilliant futurekitabel has a brilliant futurekitabel has a brilliant futurekitabel has a brilliant futurekitabel has a brilliant futurekitabel has a brilliant futurekitabel has a brilliant futurekitabel has a brilliant futurekitabel has a brilliant futurekitabel has a brilliant futurekitabel has a brilliant future
Default

If you flip the lever it will work in compression, and must be much stronger.
Reply With Quote
  #5
Old 3rd November 2020
doodah man's Avatar
doodah man doodah man is offline
Senior Master Custom Bike Builder

Join Date: May 2009
Location: 37° 25' 28" N by -80° 03' 42" W
Posts: 11,032
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1975
Reputation: 883976
doodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond reputedoodah man has a reputation beyond repute
Default

Also if you flip it and reverse the action, you need to file the brake cam down correctly or risk locking the rear brake up.
__________________
"when you don't know where you're going, any road'll take you there"
Reply With Quote
  #6
Old 3rd November 2020
sportsterdoc's Avatar
sportsterdoc sportsterdoc is offline
Senior Master Custom Bike Builder

Join Date: Apr 2012
Location: Mojave Desert
Posts: 14,004
Sportster/Buell Model: 1200S
Sportster/Buell Year: 2002
Sportster/Buell Model #2: XLH883
Sportster/Buell Year #2: 2003
Reputation: 6855581
sportsterdoc has a reputation beyond reputesportsterdoc has a reputation beyond reputesportsterdoc has a reputation beyond reputesportsterdoc has a reputation beyond reputesportsterdoc has a reputation beyond reputesportsterdoc has a reputation beyond reputesportsterdoc has a reputation beyond reputesportsterdoc has a reputation beyond reputesportsterdoc has a reputation beyond reputesportsterdoc has a reputation beyond reputesportsterdoc has a reputation beyond repute
Default

Quote:
Originally Posted by Tim The Grim View Post
Yup, that’s a cable type backing plate.

If you insist on a rod...This is what I did before I switched to a disc.
It’s kinda overkill but it worked.
Nice work!
Reply With Quote
  #7
Old 3rd November 2020
JonesL JonesL is offline
XL FORUM TEAM MEMBER

Join Date: Dec 2013
Posts: 670
Sportster/Buell Model: XL
Sportster/Buell Year: 1971
Reputation: 443233
JonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond reputeJonesL has a reputation beyond repute
Default

I flipped the lever down and ran the rod low. Doodah is right about rounding over the "corners" on the rear brake cam.
__________________
When life gives you lemons, make orange juice--
and let everyone wonder how you did it.
Reply With Quote
  #8
Old 3rd November 2020
Bigshankhank Bigshankhank is offline
Know It All

Join Date: Jun 2019
Location: West Coast Florida
Posts: 191
Sportster/Buell Model: Ironhead Hardtail
Sportster/Buell Year: 1980
Other Motorcycle Model: KTM Duke 390
Other Motorcycle Year: 2015
Reputation: 154452
Bigshankhank has a brilliant futureBigshankhank has a brilliant futureBigshankhank has a brilliant futureBigshankhank has a brilliant futureBigshankhank has a brilliant futureBigshankhank has a brilliant futureBigshankhank has a brilliant futureBigshankhank has a brilliant futureBigshankhank has a brilliant futureBigshankhank has a brilliant futureBigshankhank has a brilliant future
Default

As others have said, you will want to pull the brake cam and file a bevel on the squared edges, otherwise you risk the flat sides "locking" between the brake shoes and subsequently locking the rear wheel.
Reply With Quote
  #9
Old 3rd November 2020
bustert's Avatar
bustert bustert is offline
XL FORUM TEAM MEMBER

Join Date: Jul 2008
Posts: 10,212
Sportster/Buell Model: 1200s
Sportster/Buell Year: 2001
Sportster/Buell Model #2: xlch
Sportster/Buell Year #2: 1974
Reputation: 3254109
bustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond reputebustert has a reputation beyond repute
Default

the brakes on these machine were in the shinola department. sure they would slow down but lock up at speed was near impossible on a good surface, lower speeds yes. i could stand on mine and lock up was probably around 25mph. only fix was aggressive materials and more drum wear.
however, i can see the point with the cam. only other way is to run close tolerance and limit travel. shoe and drum need to be right on or you will get grab/release syndrome.
Reply With Quote
  #10
Old 4th November 2020
staniel's Avatar
staniel staniel is offline
Biker

Join Date: Aug 2019
Posts: 93
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1972
Sportster/Buell Model #2: XL1200CX
Sportster/Buell Year #2: 2019
Reputation: 17826
staniel is a name known to allstaniel is a name known to allstaniel is a name known to allstaniel is a name known to allstaniel is a name known to allstaniel is a name known to allstaniel is a name known to allstaniel is a name known to allstaniel is a name known to allstaniel is a name known to allstaniel is a name known to all
Default

Quote:
Originally Posted by Iron Mike View Post
That’s a cable set up rear backing plate.
If I were to get a different backing plate, do you think the rod would clear the frame? Or Do you think that I'm pretty much stuck to using a cable because of the shape of the frame?
Reply With Quote
