Default Powerraythor conversion

I am in the process of converting the generator & regulator on my 1983 XLH to one of Ray Duguay's Powerraythor 65 A alternators. I ride mostly in the city and rarely get above 2500rpm to keep the [new] battery charged.

I am ashamed to admit that I am electrically challenged and that the wiring diagrams in the paper H-D repair manual and on the CD version are impossible to read wiring colors or routings.

Ray's instructions are general and he advises owners like myself to consult with someone with automotive electrical systems knowledge. My nephew is one such but he will be incapacitated for some time.

Has anyone with an 83 XLH successfully converted their system to the Powerraythor and can tell me specifically which wires to connect or add???

I thank the members in advance!

--Rich B.
Reply With Quote
  #2
Old 13th November 2019
ryder rick's Avatar
ryder rick ryder rick is offline
Senior Master Custom Bike Builder

Join Date: Jun 2008
Location: Cornelius, OR
Posts: 9,130
Reputation: 1112818
ryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond reputeryder rick has a reputation beyond repute
Default

I think that is a one wire alt (self exciting)
So it needs just a #12 (minimum) wire to the battery positive.
If it uses a second wire it usually goes to the Gen light. (tan? OEM wire)
__________________
Ryder Rick "I know right from wrong, but sometimes, wrong feels right"
Reply With Quote
  #3
Old 14th November 2019
ferretface's Avatar
ferretface ferretface is offline
XL FORUM TEAM MEMBER

Join Date: Jun 2019
Posts: 332
Sportster/Buell Model: XLH
Sportster/Buell Year: 1983
Reputation: 73106
ferretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud of
Default

Quote:
Originally Posted by ryder rick View Post
I think that is a one wire alt (self exciting)
So it needs just a #12 (minimum) wire to the battery positive.
If it uses a second wire it usually goes to the Gen light. (tan? OEM wire)
Yes, Ray mentions the Powerraythor external bolt/post goes to the battery positive; I assume the alternator case itself is the ground. Ray's instructions say that one Powerraythor wire goes to the gen light, the other to the ignition switch.

I would prefer to retain the original wiring, and use it if possible. I *think* the yellow Powerraythor wire goes to the gen light and the green wire to the ignition switch. But I'm having trouble reading the cursed wiring schematic to figure out which OEM wires those two would connect to, or if I need to run add-on wiring. The color-coding is impossible to read.

The ignition switch is a bitch to even get to to look at, much less work on.
Reply With Quote
  #4
Old 14th November 2019
ferretface's Avatar
ferretface ferretface is offline
XL FORUM TEAM MEMBER

Join Date: Jun 2019
Posts: 332
Sportster/Buell Model: XLH
Sportster/Buell Year: 1983
Reputation: 73106
ferretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud of
Default

I noticed, in another thread, a member commented on the price of the Powerraythor compared to the 'other' alternator conversion. There seem to be several posts of the 'other' conversion failing, while there are none for the Powerraythor. The Denso unit is a compact, rugged, and integrally regulated unit designed and built for hard use.

The members might be interested, as I was, as how the Denso alternator was modified to fit and mount in the Harley-Davidson frame. Here is a pic showing the same Denso alternator before and after Ray converts it to the Powerraythor 65 A.



There is a LOT of work there! Disassembly, milling or grinding the tractor mounting bosses off, smoothing the case, blasting and painting it. Machining the armature shaft to accept the H-D gear. Fabricating a mounting flange from aluminum plate to act as the mount. Sourcing the pigtail/electrical plug for the two wires for the gen light and ignition switch.

It is a time consuming process (I am a retired millwright/machinist/welder) for all concerned with not a lot of reward. I count myself fortunate that I was able to purchase one of Ray's conversions.

My reason, as stated in my post, is that I do the bulk (90%+) of my riding around town. Rarely do I see 2500rpm (gen light goes out) on my tach, which is when my H-D generator begins charging the battery. The Powerraythor starts charging and the gen light goes out at 1000rpm.

I am confident that this conversion will keep my battery charged and not let me down when I least expect it.
Reply With Quote
  #5
Old 15th November 2019
ferretface's Avatar
ferretface ferretface is offline
XL FORUM TEAM MEMBER

Join Date: Jun 2019
Posts: 332
Sportster/Buell Model: XLH
Sportster/Buell Year: 1983
Reputation: 73106
ferretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud offerretface has much to be proud of
Default

I wasn't expecting all the views to this thread; my bad for not being clearer in the thread title...

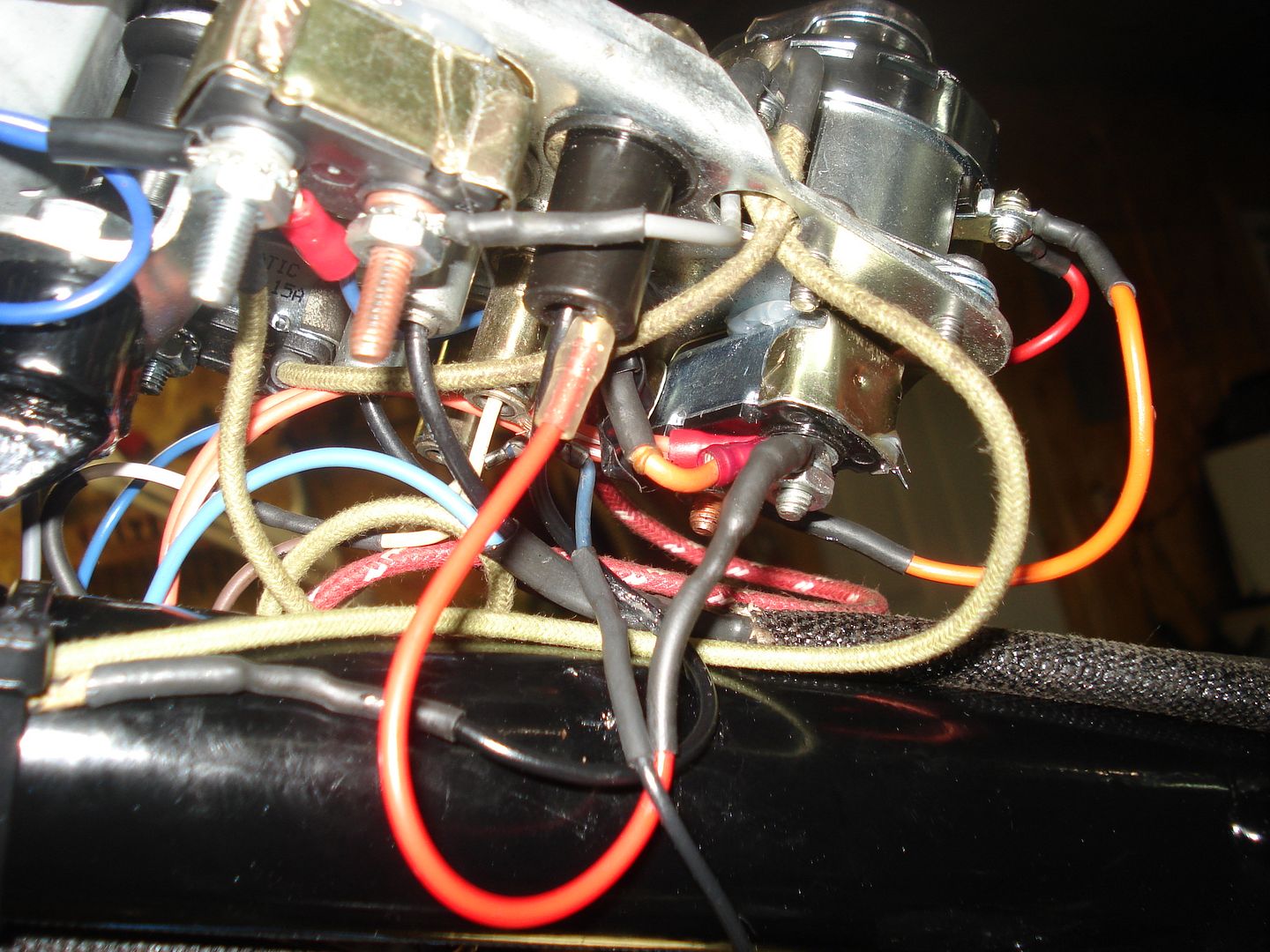

But, as long as I'm plowing on in this conversion, here's a pic of my ignition switch...



Now, Ray's instructions say to run a 10ga wire from bolt on alternator body (that big post) to the pos terminal of the battery. OK, I got that. Next Ray's instructions say to run the green wire from the Denso alternator plug to the ignition switch.

There is nothing stating to remove any ignition switch wires. Both the white wire on the ignition switch and the green wire receive voltage when the switch is switched on. The green wire goes to the 'lts' relay (in the wiring diagram), and the white wire (which has a second green wire 'jumper' between the 'L' terminal/green wire, and the 'IG' terminal/white wire) goes to the ignition relay. (The red ign switch wire/'B' terminal goes to the 'main' relay).

So, do I want to connect the green wire from the alternator plug to the white wire/'IG' terminal on the ignition switch??? Leaving all other wires intact???

I'm still trying to locate the color of the gen idiot light so I can connect the yellow wire to it.

I'll cap off the OEM regulator connector plug and the two OEM generator wires down where the generator/regulator were.

Does all that sound right to you guys who have converted their late-83/early 84 generator XL's to the Powerraythor???

This would keep all the original wiring connectors intact in case I wanted to revert to the OEM generator/regulator.

Comments encouraged. And my Thanks! go out to Class Of 82 and blk80bike for their help.
