  #11
Old 28th June 2013
cowboy-daddy cowboy-daddy is offline
Biker

Join Date: Jul 2012
Posts: 76
Sportster/Buell Model: XLH 1000
Sportster/Buell Year: 1984
Reputation: 476
cowboy-daddy is on a distinguished roadcowboy-daddy is on a distinguished roadcowboy-daddy is on a distinguished roadcowboy-daddy is on a distinguished roadcowboy-daddy is on a distinguished road
Default

Thank you all for all of your help and advice. Here is a little more visual idea of what is going on:

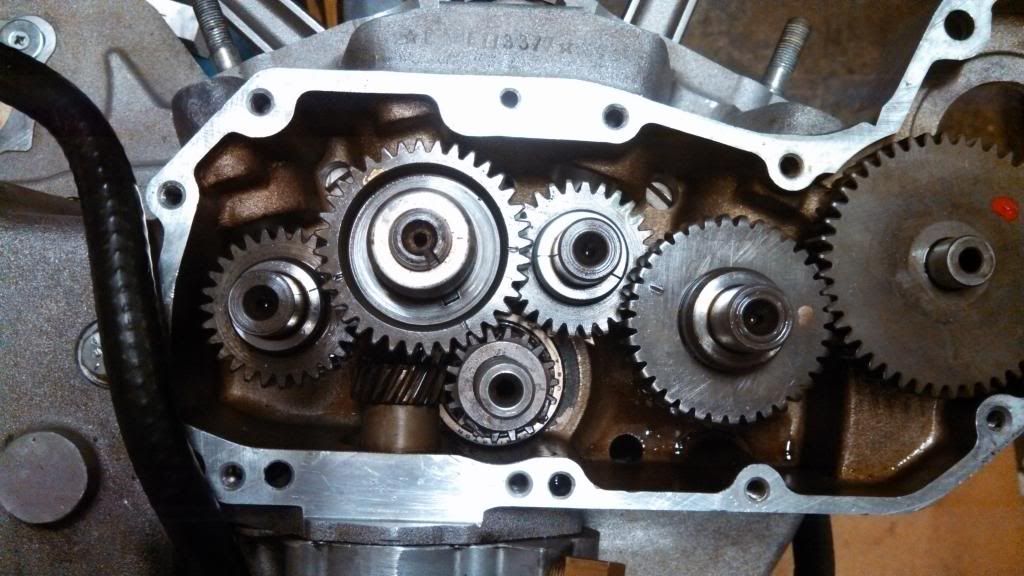

Cams after original re-assembly (as they are right now, no idea where the Pinion gear is indicated to)


Turning over but not firing.


Just a little fun video of my flywheel truing.

Regardless of what timing mark I see through the sight hole, I know I am TDC on the front cylinder. I can watch it and have done the pencil/straw trick and used a dial indicator and each time I get back to the top I get the line in the window. BUT.... am I on the right stroke? I am getting confused with the compression / exhaust / front / rear TDC. There is only one time during the cycle when the front piston comes to the top of the cylinder, right?


On a side note, do my plugs have to go to the correct side of the coil or does it not matter on this year bike? Right now I have them as factory but when mounted on the side of the engine, I have to cross the wires to get the the proper plug. Is this correct, or does it not matter?
Reply With Quote
  #12
Old 28th June 2013
Mosey Mosey is offline
Senior Master Custom Bike Builder

Join Date: Nov 2008
Location: SoCal, SFV
Posts: 6,349
Sportster/Buell Model: xlh
Sportster/Buell Year: 1982
Other Motorcycle Model: FX
Other Motorcycle Year: 1976
Reputation: 855041
Mosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond reputeMosey has a reputation beyond repute
Default

The piston comes to the top TWO times during one cycle - once on compression and once on exhaust. The easy way to determine compression stroke on the front cylinder is to raise the pushrod tubes and watch for the intake valve to close.
Reply With Quote
  #13
Old 28th June 2013
cowboy-daddy cowboy-daddy is offline
Biker

Join Date: Jul 2012
Posts: 76
Sportster/Buell Model: XLH 1000
Sportster/Buell Year: 1984
Reputation: 476
cowboy-daddy is on a distinguished roadcowboy-daddy is on a distinguished roadcowboy-daddy is on a distinguished roadcowboy-daddy is on a distinguished roadcowboy-daddy is on a distinguished road
Default

Understanding that it is irrelevant until I get my Cam gears indexed properly to the pinion gear, I would watch the front most push rod (#4) until it goes all the way up? That would be fully closed on the compression stroke on the front cylinder?
Reply With Quote
  #14
Old 28th June 2013
simeli simeli is offline
Senior Master Custom Bike Builder

Join Date: Dec 2011
Location: Virginia
Posts: 5,503
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1970
Sportster/Buell Model #2: Sportster
Sportster/Buell Year #2: 69
Other Motorcycle Model: Sportster
Other Motorcycle Year: 70
Reputation: 128625
simeli has much to be proud ofsimeli has much to be proud ofsimeli has much to be proud ofsimeli has much to be proud ofsimeli has much to be proud ofsimeli has much to be proud ofsimeli has much to be proud ofsimeli has much to be proud ofsimeli has much to be proud ofsimeli has much to be proud ofsimeli has much to be proud of
Default

I can't tell for sure but the best I can make out from the picture with the grease in the way the tooth I have the arrow on should be lined up with the cam as shown. Clean away all the garbage and find the slash mark on the pinion gear.

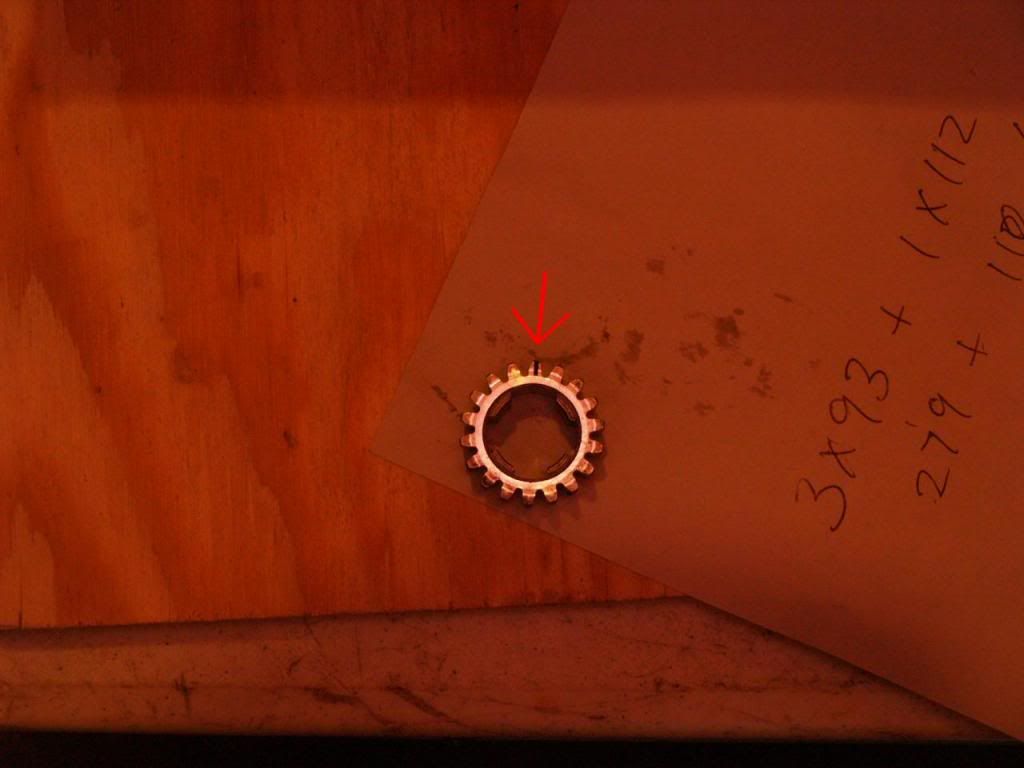

This is from an older bike I am not sure how yours would be marked.

Reply With Quote
  #15
Old 29th June 2013
cowboy-daddy cowboy-daddy is offline
Biker

Join Date: Jul 2012
Posts: 76
Sportster/Buell Model: XLH 1000
Sportster/Buell Year: 1984
Reputation: 476
cowboy-daddy is on a distinguished roadcowboy-daddy is on a distinguished roadcowboy-daddy is on a distinguished roadcowboy-daddy is on a distinguished roadcowboy-daddy is on a distinguished road
Default

Yup, it's there. Here is a close up and a little better pic. Like Mick and everyone is saying, I know I gotta find the key on the pinion shaft and start again from there.

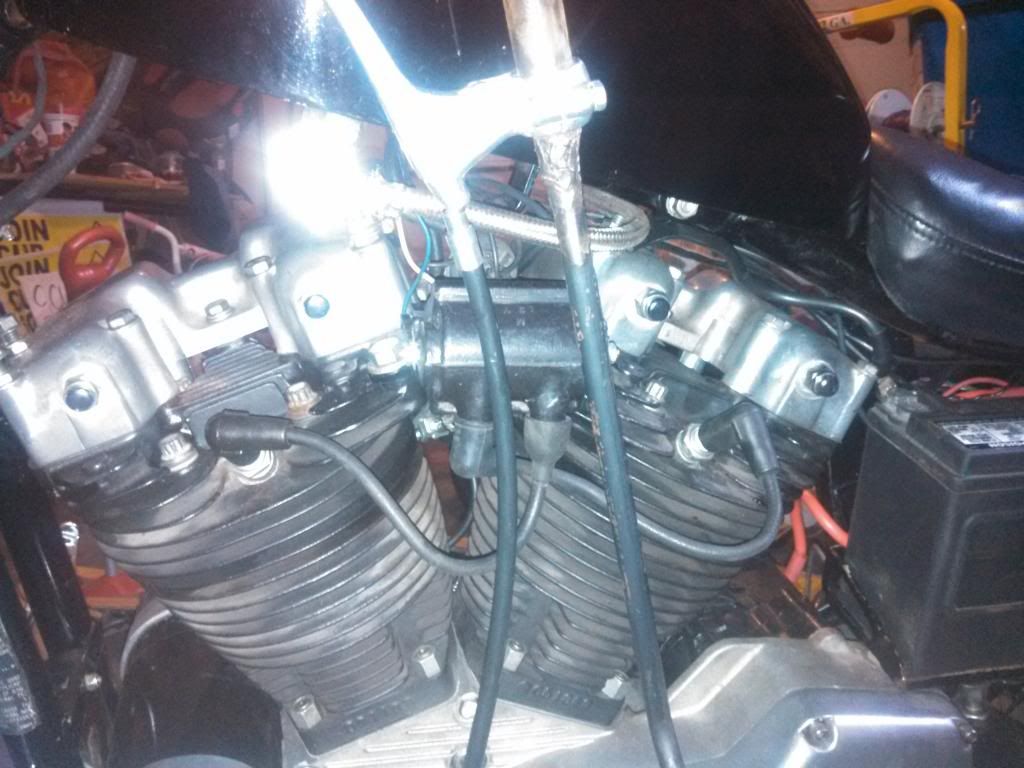

Any thoughts on the coil wires?
Reply With Quote
  #16
Old 29th June 2013
72 Ironhead XLH's Avatar
72 Ironhead XLH 72 Ironhead XLH is offline
Senior Master Custom Bike Builder

Join Date: May 2005
Location: NJ
Posts: 5,743
Sportster/Buell Model: XLH
Sportster/Buell Year: 72
72 Ironhead XLH has disabled reputation
Default

Those look good, but you need to turn the engine and watch when the intake lifter #3 raises up and the DROPS to its lowest position,. that is intake valve closed. continue turning untill vert line is visable in access hole. This is the advanced timing mark. Install points plate and set flyweights accordingly.
Reply With Quote
  #17
Old 29th June 2013
cowboy-daddy cowboy-daddy is offline
Biker

Join Date: Jul 2012
Posts: 76
Sportster/Buell Model: XLH 1000
Sportster/Buell Year: 1984
Reputation: 476
cowboy-daddy is on a distinguished roadcowboy-daddy is on a distinguished roadcowboy-daddy is on a distinguished roadcowboy-daddy is on a distinguished roadcowboy-daddy is on a distinguished road
Default

Sorry, I hope the flyweights are something to do with the points plate cause mine has electric timing and I have NO idea what flyweights are.
Reply With Quote
  #18
Old 29th June 2013
72 Ironhead XLH's Avatar
72 Ironhead XLH 72 Ironhead XLH is offline
Senior Master Custom Bike Builder

Join Date: May 2005
Location: NJ
Posts: 5,743
Sportster/Buell Model: XLH
Sportster/Buell Year: 72
72 Ironhead XLH has disabled reputation
Default

Then post some pics of your ign system and whatever was under the cover plate.
Reply With Quote
Sponsored Links
  #19
Old 29th June 2013
Fridge's Avatar
Fridge Fridge is offline
Senior Custom Bike Builder

Join Date: May 2012
Location: Way down yonder in....
Posts: 2,724
Sportster/Buell Model: XLCH/H
Sportster/Buell Year: 1973
Other Motorcycle Model: Road King Classic FLHRCI
Other Motorcycle Year: 2007
Fridge has disabled reputation
Default

Quote:
Originally Posted by cowboy-daddy View Post
Understanding that it is irrelevant until I get my Cam gears indexed properly to the pinion gear, I would watch the front most push rod (#4) until it goes all the way up? That would be fully closed on the compression stroke on the front cylinder?


Push rod at it's lowest point is valve closed.
Those cams look like they are lined up and good to go.

If the motor is sucking in at the exhaust spigots(ports) and blowing the fuel/air mix out of the carb, perhaps it's a good thing you don't have any spark firing.

Sounds like there are two problems here, no F/A intake/compression AND no fire.

The no fire could be related to the kill switch on the bars or other simple thing, but until you get the proper sequencing of the 4 stroke motor,,,, suck, squeeze, bang, blow I wouldn't worry about the firing off of it for now....

Did you do any head work? Could the valves be sticking open?
Can you physically see them moving thru the plug hole?(with a good light and at the perfect angle, I can see mine)
Rather strange problem here with this one.
Reply With Quote
  #20
Old 29th June 2013
ericfreeman's Avatar
ericfreeman ericfreeman is offline
XL FORUM TEAM MEMBER

Join Date: May 2007
Posts: 4,888
Sportster/Buell Model: Ironhead XLH Sportster
Sportster/Buell Year: 1978
Sportster/Buell Model #2: Ironhead XLT Sportster
Sportster/Buell Year #2: 1977
Other Motorcycle Model: Honda CBX 1000
Other Motorcycle Year: 1979
Reputation: 49802
ericfreeman is a splendid one to beholdericfreeman is a splendid one to beholdericfreeman is a splendid one to beholdericfreeman is a splendid one to beholdericfreeman is a splendid one to beholdericfreeman is a splendid one to beholdericfreeman is a splendid one to beholdericfreeman is a splendid one to beholdericfreeman is a splendid one to beholdericfreeman is a splendid one to beholdericfreeman is a splendid one to behold
Default

If you didn't index the pinion gear to the pinion shaft correctly, everything is off from there. Only way to know is to remove the pinion gear and check the indexing. Everything else is just a waste of time until then.

Eric
__________________
1978 Anniversary Edition XLH. Wiseco 10:1 forged pistons, Andrews R5 cams, dual plugged heads with Super Port Flow, single fire ignition, Mikuni Solex 36 PHH carb, Jagg oil cooler, '73 gauges, kickstart, Barnett kevlar clutch, Progressive front springs, Hagon Nitro shocks, all-Andrews tranny. 1977 XLT, Mikuni Solex 36 PHH carb, tapered dual exhausts, Andrews Y cams, Progressive front springs, Hagon Nitro shocks.
Reply With Quote
