  #1
Old 17th April 2011
DR DICK's Avatar
DR DICK DR DICK is offline
Senior Master Custom Bike Builder

Join Date: Jan 2010
Posts: 6,393
Reputation: 312824
DR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond repute
Default givin kicker slip the boot part 2

your kicker slips when the rachet gear disengages from the ractet plate on back of cluch drum.

this is a quick look at the problems and fixes. all the parts shown are dry cluch. but applies to wet cluch too.

this boils down to gettin and maintaining engagement between these teeth.

gettin engagement:
point here is to eliminate anything that may hinder the sliding action of rachet gear so it may fully seat againt the rachet plate. every time.

1) if the mesh between rachet gear & large gear that drives it is binding or notchy, it will not allow free sliding, gears must mesh free.

2) the sleeve that the rachet gear bushing slides on must be uniform in diameter. no wear bands that may inhibit free slide.

so far this stuff is just your straight ahead common sense wrenchin. next thin isnt. its often overlooked. but super important.

3) the outside of the rachet gear bushing must pass thru the hole in rachet plate WHEN ASSEMBLED. CHECKIN BY STICKIN GEAR INSIDE OF PLATE ON THE BENCH IS NOT WHAT GONNA HAPPEN IN SERVICE.
compare the od of these two bushings:

the one on the left has a step cut into it. to provide clearance in plate bore. if your bushing shows drag marks in this area its haning up on plate bore. no good.

on the right is a stock rachet plate laid over a stock bushing it has minimal clearance. that one wont tolerate much misalignment before some rubbing starts.

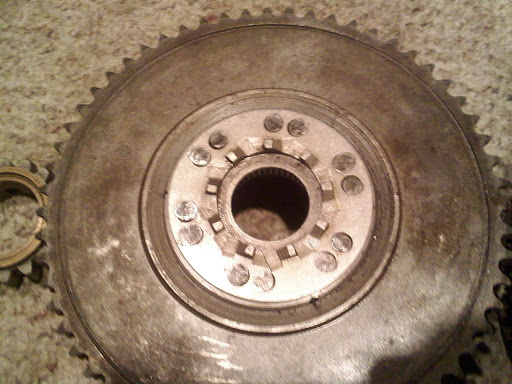

now look at the rivet job on these two drums
crappy

there is a good chance that this one isnt centered on drum. if the bore isnt centered over outside of the bush, the bush will drag on the way in. inviting incomplete engagement

good



|||||||||||||||||||||||||||||||||||||||||||||||||| ||||||||||||||||
part two maintaing engagement:

this is where the you NEED TO BE EVERY TIME-FULLY ENGAGED. you wont get here if the stuff above isnt given its due.


stayin engaged thru the entire kick stroke depends on what happens between these 2 parts while you kick. they need to stay together just like this.---until the cam plate on the big driving gear yanks the rachet gear out of engagement.

when that happens the contact faces must slide on each other until they disengage. just before they disengage all the kick force is passing thru a very small contact area between the 2. createing a little wear on both. this wear is cancerous if allowed to 'mature'.

study the next pic:
these are 2 basic unworn oem parts
the contact faces are machined to 90 degrees (straight up and down).
that makes the contact angle from 12 OCLOCK TO 6 OCLOCK .
resulting in direction of force shown by the yellow arrow.
so far so good.


remember this from above-this wear is cancerous if allowed to 'mature'.
as this wear progreses the contact angle starts to rotate counterclockwise
so now its more like 11:00/5:00. resulting in a direction of force that will DISENGAGE the two parts. the rachet gear now moves in the direction of the red arrow as you kick. the harder you kick the more disengagement you get. does that sound fimilair? i bet.

what you want is shown by the green arrow. a resulting force that 'screws' the two gears to titer 'bite' the harder you kick.

in order to get this green action YOU need to modify the contact angle to 1:00/7:00. by carefully grinding the contact surfaces on both gear and plate to acheve this 'anti disengagement action'.

part 3 next: the various different parts supplied over the years. how to identify what in your bike. and what combos work like.
Reply With Quote
  #2
Old 17th April 2011
Gone Gone is offline
Chief Harley Engineer

Join Date: Nov 2004
Posts: 596
Reputation: 37552
Gone is an unknown quantity at this pointGone is an unknown quantity at this pointGone is an unknown quantity at this pointGone is an unknown quantity at this pointGone is an unknown quantity at this pointGone is an unknown quantity at this pointGone is an unknown quantity at this pointGone is an unknown quantity at this pointGone is an unknown quantity at this pointGone is an unknown quantity at this pointGone is an unknown quantity at this point
Default

Oh this is good stuff, thanks again Doc
Reply With Quote
  #3
Old 17th April 2011
cc rider's Avatar
cc rider cc rider is offline
Senior Chief Master Mechanic

Join Date: Aug 2008
Posts: 927
Sportster/Buell Model: 883 Hugger (NHRS 1250)
Sportster/Buell Year: 1997
Sportster/Buell Model #2: 76 Ironhead
Other Motorcycle Model: 73 Ironhead
Reputation: 1212
cc rider has a spectacular aura aboutcc rider has a spectacular aura aboutcc rider has a spectacular aura aboutcc rider has a spectacular aura aboutcc rider has a spectacular aura aboutcc rider has a spectacular aura aboutcc rider has a spectacular aura aboutcc rider has a spectacular aura aboutcc rider has a spectacular aura about
Question

nice post... how would i go about getting the rivet job done correctly so everything is centered?
__________________
CC
- 1997 883 Hugger with NHRS 1250 Conversion, Andrews N4 cams, stock heads, SE II slip ons, SE coil, Daytona Twin Tec 1005, Arlen Ness Big Sucker II ---1976 Ironhead stock for
now.
Reply With Quote
  #4
Old 17th April 2011
scottfisher's Avatar
scottfisher scottfisher is offline
Senior Custom Bike Builder

Join Date: Feb 2011
Location: Rural Ontario
Posts: 2,718
Sportster/Buell Model: FLCH
Sportster/Buell Year: 61
Sportster/Buell Model #2: XLCH Kit Bike
Sportster/Buell Year #2: 60
Reputation: 37722
scottfisher is a splendid one to beholdscottfisher is a splendid one to beholdscottfisher is a splendid one to beholdscottfisher is a splendid one to beholdscottfisher is a splendid one to beholdscottfisher is a splendid one to beholdscottfisher is a splendid one to beholdscottfisher is a splendid one to beholdscottfisher is a splendid one to beholdscottfisher is a splendid one to beholdscottfisher is a splendid one to behold
Default

If the wear on the inter-locking parts is moving towards the 11-5 o'clock position...is grinding still an option? At what point would you call it a day on the original equipt and opt for new parts. Have you a pic of something that would be beyond salvage?

The reason I'm asking is I dug out my replacement 'kit' that I ordered through J&P(from V-Twin Manufacturing (made in taiwan)) and it turns out this kit is a universal fit type of deal with extra parts to adapt to any year of bike...I just realized this looking at it now.
I bought this, not because I have a problem, instead just to have on hand so I can still start my bike in 20yrs if no-one makes this kit then. The parts in this kit will need some machining to properly work on my bike...and to work with each other. It appears it would be easier to try and grind the original equipt back to a 1-7 o'clock position if there is enough metal left to still be strong enough for the forces applied. Hopefully saving someone the additional headaches of trying to modify this kit to fit.
__________________
Scott
'61 'CH
'60 'CH
See No Evo, Hear No Evo, Speak No Evo, Ride No Evo
Reply With Quote
  #5
Old 17th April 2011
Shadowdog500's Avatar
Shadowdog500 Shadowdog500 is offline
Senior Chief Master Mechanic 1st Class

Join Date: Jan 2008
Location: Down the Shore
Posts: 1,274
Sportster/Buell Model: XLH-1000
Sportster/Buell Year: 1975
Other Motorcycle Model: Honda Spree
Other Motorcycle Year: 1987
Reputation: 1222
Shadowdog500 has a spectacular aura aboutShadowdog500 has a spectacular aura aboutShadowdog500 has a spectacular aura aboutShadowdog500 has a spectacular aura aboutShadowdog500 has a spectacular aura aboutShadowdog500 has a spectacular aura aboutShadowdog500 has a spectacular aura aboutShadowdog500 has a spectacular aura aboutShadowdog500 has a spectacular aura about
Default

Wonder why they didn't undercut those teeth so it wont kick out of engagement?

Great job showing this!!!

Chris
__________________
It’s not really your bike unless you work on it yourself!

"Believe nothing, no matter where you read it, or who said it,
no matter if I have said it, unless it agrees with your own
reason and your own common sense."
-Buddha (536 B.C.-483 B.C.)
Reply With Quote
  #6
Old 17th April 2011
Ferrous Head's Avatar
Ferrous Head Ferrous Head is offline
Blind Owl

Join Date: Jun 2009
Location: Sunshine Coast
Posts: 5,099
Sportster/Buell Model: XLB, XLCH, Sporton
Sportster/Buell Year: 1962
Sportster/Buell Model #2: XLCH
Sportster/Buell Year #2: 1966
Other Motorcycle Model: XLCH (Another one)
Other Motorcycle Year: 1966
Reputation: 911153
Ferrous Head has a reputation beyond reputeFerrous Head has a reputation beyond reputeFerrous Head has a reputation beyond reputeFerrous Head has a reputation beyond reputeFerrous Head has a reputation beyond reputeFerrous Head has a reputation beyond reputeFerrous Head has a reputation beyond reputeFerrous Head has a reputation beyond reputeFerrous Head has a reputation beyond reputeFerrous Head has a reputation beyond reputeFerrous Head has a reputation beyond repute
Default

Quote:
Originally Posted by Shadowdog500 View Post
Wonder why they didn't undercut those teeth so it wont kick out of engagement?

Great job showing this!!!

Chris
Straight cutting gears is quick and cheap. (Harley ?) while undercutting is more time consuming and expensive.

I am glad someone took the time to do this post properly. Thanks on behalf of the guys who've never put in the time and effort.

__________________
"I know only too well the evil that I propose. But my inclinations get the better of me."
Reply With Quote
  #7
Old 18th April 2011
chevelle's Avatar
chevelle chevelle is offline
Senior Custom Bike Builder

Join Date: Sep 2007
Posts: 2,877
Sportster/Buell Model: Custom Sputhe XR
Sportster/Buell Year: 19**
Sportster/Buell Model #2: XLCH
Sportster/Buell Year #2: 1965
Reputation: 50902
chevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to behold
Default

Yes thanks Dick, you may save us some pain and suffering....... and medical bills im sure.
Reply With Quote
  #8
Old 18th April 2011
DR DICK's Avatar
DR DICK DR DICK is offline
Senior Master Custom Bike Builder

Join Date: Jan 2010
Posts: 6,393
Reputation: 312824
DR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond repute
Default

Quote:
Originally Posted by cc rider View Post
nice post... how would i go about getting the rivet job done correctly so everything is centered?
on 71 up its pretty simple. but you need a lathe. make this:
use by puting thru plate and bearing THEN put rivets in. there are big variations in plate bores. what works for one bike may not on a different one.

57-70 is the same idea. but if you are running a sealed dry cluch your messing with sealing integrity. i will go into this deeper as i add to the main post

for some more info:
http://xlforum.net/forums/s...9&postcount=15

Last edited by DR DICK; 18th April 2011 at 03:25.. Reason: added link
Reply With Quote
  #9
Old 18th April 2011
DR DICK's Avatar
DR DICK DR DICK is offline
Senior Master Custom Bike Builder

Join Date: Jan 2010
Posts: 6,393
Reputation: 312824
DR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond reputeDR DICK has a reputation beyond repute
Default

Quote:
Originally Posted by scottfisher View Post
If the wear on the inter-locking parts is moving towards the 11-5 o'clock position...is grinding still an option? At what point would you call it a day on the original equipt and opt for new parts. Have you a pic of something that would be beyond salvage?

i dont think that parts can wear enuff to be beyound salvage. because the amount of wear that can be achieved before the kicker is totaly unable to stay engaged is not that great

The reason I'm asking is I dug out my replacement 'kit' that I ordered through J&P(from V-Twin Manufacturing (made in taiwan)) and it turns out this kit is a universal fit type of deal with extra parts to adapt to any year of bike...I just realized this looking at it now.
I bought this, not because I have a problem, instead just to have on hand so I can still start my bike in 20yrs if no-one makes this kit then. The parts in this kit will need some machining to properly work on my bike...and to work with each other. It appears it would be easier to try and grind the original equipt back to a 1-7 o'clock position if there is enough metal left to still be strong enough for the forces applied. Hopefully saving someone the additional headaches of trying to modify this kit to fit.
im gonna go in to the aftermarket issues in the next installment. be forewarned its not pretty.
Reply With Quote
  #10
Old 18th April 2011
2007Low's Avatar
2007Low 2007Low is offline
Senior Chief Harley Engineer 2nd Class

Join Date: Oct 2007
Location: Southwestern Minnesota
Posts: 1,692
Sportster/Buell Model: XL1200 Low/TTS/Gronked
Sportster/Buell Year: 2007
Sportster/Buell Model #2: XLCH1000
Sportster/Buell Year #2: 1975
Reputation: 23358
2007Low is a name known to all2007Low is a name known to all2007Low is a name known to all2007Low is a name known to all2007Low is a name known to all2007Low is a name known to all2007Low is a name known to all2007Low is a name known to all2007Low is a name known to all2007Low is a name known to all2007Low is a name known to all
Default

Too cool man, thanks for all the effort and time. I will definitely be working on mine next winter.
__________________
If your feet smell and your nose runs, you're upside down.
U.S.A.F. Veteran
Reply With Quote
Reply

Bookmarks


Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump



All times are GMT +1. The time now is 18:33.


Powered by vBulletin® Version 3.8.11
Copyright ©2000 - 2020, vBulletin Solutions Inc.
XL Forum® - Linson Media LLC
