  #1
Old 3rd November 2008
raptor30se's Avatar
raptor30se raptor30se is offline
Greasemonkey

Join Date: Aug 2005
Posts: 113
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2004
Reputation: 493
raptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished road
Default Powder coat carb

Does anyone have a parts diagram for the Keihin carb on a 04 sportster. I have started disassemly to powder coat. Would like to know where any rubber o-rings are, so they can be removed.

Thanks

David
Reply With Quote
  #2
Old 3rd November 2008
scottgearman's Avatar
scottgearman scottgearman is offline
Senior Chief Know It All 1st Class

Join Date: Dec 2006
Location: Pickering Ontario Canada
Posts: 1,121
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 05
Reputation: 3972
scottgearman is a jewel in the roughscottgearman is a jewel in the roughscottgearman is a jewel in the roughscottgearman is a jewel in the roughscottgearman is a jewel in the roughscottgearman is a jewel in the roughscottgearman is a jewel in the roughscottgearman is a jewel in the roughscottgearman is a jewel in the roughscottgearman is a jewel in the roughscottgearman is a jewel in the rough
Default

WOW.... powder coating a CARB?
I honestly wish you the best of luck and I hope everything goes back to gether ok and that it starts on the first crank!
__________________
A man must consider what a rich realm he abdicates when he decides to become a conformist
Reply With Quote
  #3
Old 3rd November 2008
raptor30se's Avatar
raptor30se raptor30se is offline
Greasemonkey

Join Date: Aug 2005
Posts: 113
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2004
Reputation: 493
raptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished road
Default

As long as everything is masked up, should be no problem. I have seen alot of carbs for cars powder coated....I do the work myself, so I know how to properly mask areas.
Reply With Quote
  #4
Old 7th November 2008
raptor30se's Avatar
raptor30se raptor30se is offline
Greasemonkey

Join Date: Aug 2005
Posts: 113
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2004
Reputation: 493
raptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished road
Default

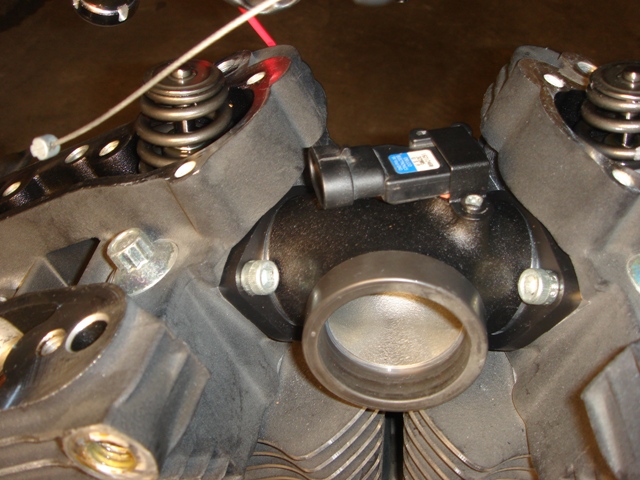

Here are some before and after shots of the carb, just finished it this evening









Reply With Quote
  #5
Old 8th November 2008
Lenster's Avatar
Lenster Lenster is offline
Senior Master Custom Bike Builder

Join Date: Mar 2007
Location: Calgary, AB, Canada
Posts: 5,073
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2006
Reputation: 417035
Lenster has a reputation beyond reputeLenster has a reputation beyond reputeLenster has a reputation beyond reputeLenster has a reputation beyond reputeLenster has a reputation beyond reputeLenster has a reputation beyond reputeLenster has a reputation beyond reputeLenster has a reputation beyond reputeLenster has a reputation beyond reputeLenster has a reputation beyond reputeLenster has a reputation beyond repute
Default

That looks Great!

What kind of green tape is that (specifically)?
__________________
Lenster's 1250 2006 XL1250C, Hammer Crush Heads, 15 Degree Pistons, 10.5:1 CR, S&S Roller Rockers, Fixed Length Pushrods, Jim's Powerglide II Hydraulic Lifters, RedShift 585 Cams, Energy 1 Clutch w/ 15% Stronger Spring, Hammer Performance Billet Intake Manifold, Mikuni HSR 45 (25 Pilot, 157.5 Main, 96 Needle 2nd Clip from top, Y6 Needle Jet), Offset Crush AC, Cobra Power Pro HP 2:1 Exhaust and a Daytona Twin Tec TC88A with a Kickass Map by Rico 05R.
Reply With Quote
  #6
Old 8th November 2008
raptor30se's Avatar
raptor30se raptor30se is offline
Greasemonkey

Join Date: Aug 2005
Posts: 113
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2004
Reputation: 493
raptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished road
Default

The green tape is a special high heat tape designed for powder coating....It can withstand curing temps above the needed 400 degrees.
Reply With Quote
  #7
Old 8th November 2008
raptor30se's Avatar
raptor30se raptor30se is offline
Greasemonkey

Join Date: Aug 2005
Posts: 113
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2004
Reputation: 493
raptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished road
Default

Here's another thread to show you were the bike is heading...

http://xlforum.net/forums/s...21#post1562921
Reply With Quote
  #8
Old 10th November 2008
jakazz's Avatar
jakazz jakazz is offline
Flat Track Racer

Join Date: Nov 2007
Posts: 206
Sportster/Buell Model: 1200
Sportster/Buell Year: 2000
Other Motorcycle Model: hd nightrain
Other Motorcycle Year: 2007
Reputation: 1511
jakazz has a spectacular aura aboutjakazz has a spectacular aura aboutjakazz has a spectacular aura aboutjakazz has a spectacular aura aboutjakazz has a spectacular aura aboutjakazz has a spectacular aura aboutjakazz has a spectacular aura aboutjakazz has a spectacular aura aboutjakazz has a spectacular aura aboutjakazz has a spectacular aura aboutjakazz has a spectacular aura about
Default

Hey raptor what did you use to clean the carb before masking...did you blast it, or just use carb cleaner? I ussualy prep with a good degreaser..." ZEP purple degreaser" than a complete wipe down with deantured alcahol, and then burn it with mapp gas torch to get rid of lint.

Whats your process because that carb looks SWEET

Oh and is that the black wrinkle from columbia, and if so how does it match up with the harley wrinkle?
__________________
07 FXSTB-VH stepped drags-PC3-SMW Testament Wheels,18x5.5,18x3.0, 200x18, 120x21, Metzler 880, Zyndall z-pads on PM discs
Oh and 2 sporty projects ongoing, 2000-1200, and a 94-883

Last edited by jakazz; 10th November 2008 at 01:07.. Reason: added question
Reply With Quote
  #9
Old 10th November 2008
raptor30se's Avatar
raptor30se raptor30se is offline
Greasemonkey

Join Date: Aug 2005
Posts: 113
Sportster/Buell Model: XL1200C
Sportster/Buell Year: 2004
Reputation: 493
raptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished roadraptor30se is on a distinguished road
Default

Yea thanks, I used a good carb cleaner on it, and heat it up to outgas it....

The powder is extra fine texture black from absolute powder coating. The black wrinkle from columbia is a much more leathery type surface. This texture matches pretty good with the texture harley uses on the block, except it has a satin finish and won't catch a nail like the really rough sand paper like stuff harley uses. It is much easier to wipe down and clean. So it has a more gloss than the block. The biggest thing as you know is masking things off cleanly. I over tape everything then come back with a number 11 xacto blade a trim out all the gasket surfaces. This makes for a clean job. Also I use the high temp plugs for any holes.

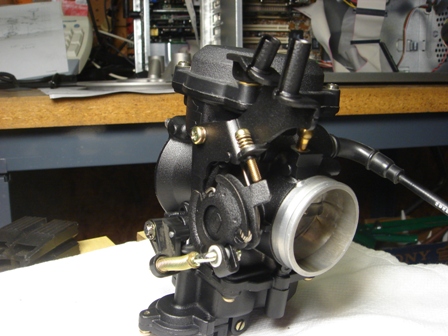

Here is another shot of it.

Reply With Quote
  #10
Old 6th December 2008
mwchut mwchut is offline
Biker

Join Date: Aug 2008
Location: Northern California
Posts: 78
Sportster/Buell Model: Nightster
Sportster/Buell Year: 2009
Sportster/Buell Model #2: XL883-1200 Convert
Sportster/Buell Year #2: 2007
Other Motorcycle Model: Honda Rebel 250 Moped
Other Motorcycle Year: 1985
Reputation: 132
mwchut is on a distinguished roadmwchut is on a distinguished road
Default

Nice job.. I have coated a lot of carbs.. Mostly Webers, some cycle carbs, a few holleys. It's a bit of work but the outcome is really nice.
Reply With Quote
