Default Rear axle spacers

Hope I got this post in the right spot! Mocking up a 73 roller with little experience and much desire! Rear axle binds when I torq down. Looks like I have proper hardware (retrieved from box of parts) but left with a 1/4" gap, before torq. Wheel is centered. Is it ok to add wheel spacer or am I missing something, or missing washers??? It is a round swingarm.
Reply With Quote
  #2
Old 5th December 2009
crapgame's Avatar
crapgame crapgame is offline
Chief Master Mechanic

Join Date: Mar 2009
Location: st.catharines
Posts: 464
Sportster/Buell Model: xlh
Sportster/Buell Year: 86
Reputation: 4374
crapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nice
Default

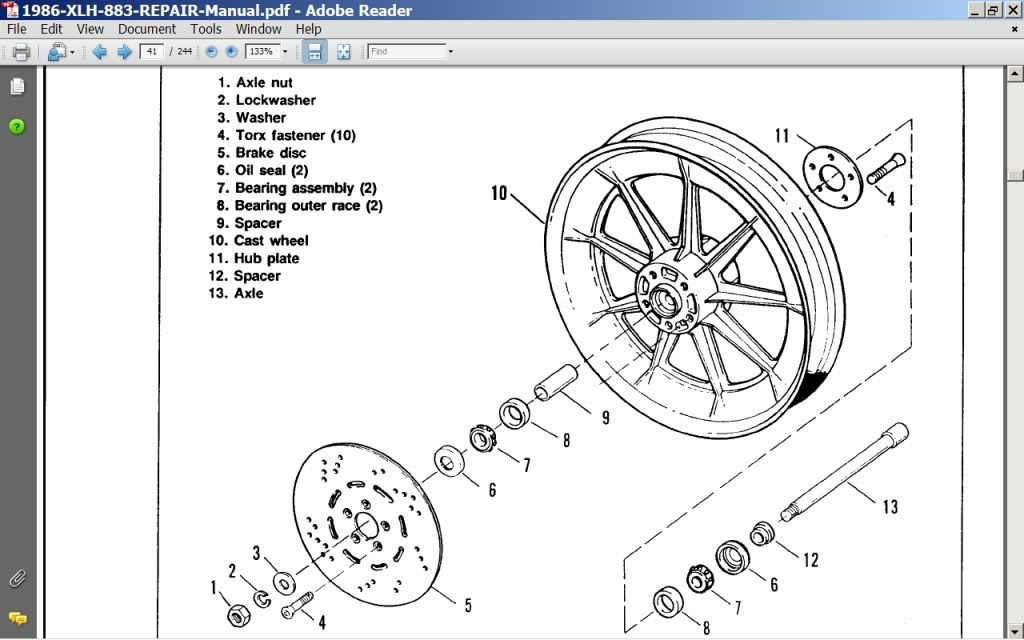

theres a spacer between the bearings . are you sure its there.? if not you will just squash the bearings. a little drawing i just did hope it helps.

heres a better pic for you. LOL

if #9 is not the right length you either crush or its to loose.
my rear was binding same as yours after intalling new bearings got a piece of 3/4inch gas pipe cut it to right length (took a few trys to get it right} torqued it down works peerrrfffeecctt.
Reply With Quote
  #3
Old 5th December 2009
Blaze Gibson Blaze Gibson is offline
Biker

Join Date: Dec 2009
Posts: 11
Sportster/Buell Model: iron head
Sportster/Buell Year: 73
Reputation: 10
Blaze Gibson is an unknown quantity at this point
Default

Im thinking I just need to add another spacer or shims to the left side, I tend to over analyze then accomplish nothing!! I will try to explain what I have, bear with me here! Starting on rt side, axle,axle adjuster, brake drum (axle through hub) left side, hub locknut,spacer (looks like hourglass) axle adjuster, through swingarm, washer,lock washer,axle nut. And you thought your diagram was confusing! LOL. Thanks for the input.
Reply With Quote
  #4
Old 5th December 2009
XLFREAK XLFREAK is offline
Senior Master Custom Bike Builder

Join Date: Nov 2004
Posts: 5,036
XLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really nice
Default

On mine the axle adjusters also act as spacers and have to be there.
Reply With Quote
  #5
Old 5th December 2009
crapgame's Avatar
crapgame crapgame is offline
Chief Master Mechanic

Join Date: Mar 2009
Location: st.catharines
Posts: 464
Sportster/Buell Model: xlh
Sportster/Buell Year: 86
Reputation: 4374
crapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nice
Default

sorry i dont have a manual for your year
Reply With Quote
  #6
Old 5th December 2009
XLFREAK XLFREAK is offline
Senior Master Custom Bike Builder

Join Date: Nov 2004
Posts: 5,036
XLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really nice
Default

Ok, from the left side axle, frame, adjuster large chrome spacer, Wheel, brake drum, AXLE ADJUSTER, frame, then a alignment washer ( has flats on 2 sides to fit snug in axle slot ) lock washer and finally nut. There is no spacer on the right ( chain side ) just the adjuster.
The diagrams crapgame has posted ONLY show the spacers that are on the hub/wheel itself. Spacing the bearings only.
Reply With Quote
  #7
Old 5th December 2009
crapgame's Avatar
crapgame crapgame is offline
Chief Master Mechanic

Join Date: Mar 2009
Location: st.catharines
Posts: 464
Sportster/Buell Model: xlh
Sportster/Buell Year: 86
Reputation: 4374
crapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nice
Default

somebodys got to have the manual for you.? is this any help
Reply With Quote
  #8
Old 6th December 2009
Blaze Gibson Blaze Gibson is offline
Biker

Join Date: Dec 2009
Posts: 11
Sportster/Buell Model: iron head
Sportster/Buell Year: 73
Reputation: 10
Blaze Gibson is an unknown quantity at this point
Default

Upon further review and a consult with the service manual, it appears Im missing an axle collar or alignment washer as musicman suggested. I will need to check manual a little better, I swear I could'nt see it in the specs! Got the collar ordered and will check the bearings while Im waiting. I better go double check my boxes of junk! Thanks to all and Im sure I will be in touch! Its my first build!
Reply With Quote
  #9
Old 6th December 2009
crapgame's Avatar
crapgame crapgame is offline
Chief Master Mechanic

Join Date: Mar 2009
Location: st.catharines
Posts: 464
Sportster/Buell Model: xlh
Sportster/Buell Year: 86
Reputation: 4374
crapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nicecrapgame is just really nice
Default

been there done that .i just read the manual like its a good novel (kind of is isnt it) let us know how you make out.? oh and welcome . we love to look at pics so post them up. where are you from.? go say hi to everybody in the Introduce Yourself forum.
Reply With Quote
Sponsored Links
  #10
Old 6th December 2009
XLFREAK XLFREAK is offline
Senior Master Custom Bike Builder

Join Date: Nov 2004
Posts: 5,036
XLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really niceXLFREAK is just really nice
Default

The axle collar/washer doesn't do anything for spacing though as it goes on the outside of the frame. If you have your large left side spacer and both of your adjusters in place and still have space I'd start checking your bearing spacers. Those are in the diagrams posted above. I just ran into that problem when converting to rear disk setup. One outer bearing spacer missing.
Reply With Quote
