  #1
Old 27th June 2012
sevenyears of famine's Avatar
sevenyears of famine sevenyears of famine is offline
Master Mechanic

Join Date: Jan 2009
Location: Peoria, IL
Posts: 254
Sportster/Buell Model: XLH
Sportster/Buell Year: 1960
Reputation: 31715
sevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to all
Default Tranny expedition - 1960 stroker

Due to 3rd gear slipping and discovering a few pieces of metal in the trans oil, I will be pulling out the transmission. I'll do my best to post good pictures so you guys can give educated input. Hopefully you can help me through this and it might help someone else down the road.

I wanted to state the fact that this motor has been bored and stroked, that way when we get into it, we might be able to determine other parts that have been beefed up or might need to be upon reassembly.

Dug into it a bit last night:

First I drained the transmission oil... again.


Removed "left footrest" & "rear brake foot lever"


3 screws then popped off the primary cover


Clutch cover. I just put this on a couple weeks ago and I used RTV gasket silicone when I put it back on because I couldn't find a reason not to. Well, now I know why not to, it was a bear to get off.


pressure plate & nuts, springs & cups


releasing disc


then removed all the friction & driven plates


chain adjuster deal



moving to the other side next
Reply With Quote
  #2
Old 27th June 2012
Vermonter's Avatar
Vermonter Vermonter is offline
Chief Harley Engineer

Join Date: Jan 2010
Posts: 573
Sportster/Buell Model: XLH
Sportster/Buell Year: 1973
Other Motorcycle Model: 80XS650/71CL175/7?gs550
Reputation: 10391
Vermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of light
Default

if your not having any problems with your cams no need to open the other side up. Remove your clutch basket to get to the transmission.
__________________
"If a law is unjust, a man is not only right to disobey it, he is obligated to do so." Thomas Jefferson
Reply With Quote
  #3
Old 27th June 2012
sevenyears of famine's Avatar
sevenyears of famine sevenyears of famine is offline
Master Mechanic

Join Date: Jan 2009
Location: Peoria, IL
Posts: 254
Sportster/Buell Model: XLH
Sportster/Buell Year: 1960
Reputation: 31715
sevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to all
Default

Quote:
Originally Posted by Vermonter View Post
if your not having any problems with your cams no need to open the other side up. Remove your clutch basket to get to the transmission.
I was wondering this, but don't I need to take off the drive sprocket?
Reply With Quote
  #4
Old 27th June 2012
Vermonter's Avatar
Vermonter Vermonter is offline
Chief Harley Engineer

Join Date: Jan 2010
Posts: 573
Sportster/Buell Model: XLH
Sportster/Buell Year: 1973
Other Motorcycle Model: 80XS650/71CL175/7?gs550
Reputation: 10391
Vermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of lightVermonter is a glorious beacon of light
Default

Quote:
Originally Posted by sevenyears of famine View Post
I was wondering this, but don't I need to take off the drive sprocket?
oh ya but that is just the sprocket cover, not the cam cover. I just didn't want to see ya open up and drop a cam or something when you don't need to.

but you will have to remove the clutch basket, and primary drive as well.
Reply With Quote
  #5
Old 27th June 2012
sevenyears of famine's Avatar
sevenyears of famine sevenyears of famine is offline
Master Mechanic

Join Date: Jan 2009
Location: Peoria, IL
Posts: 254
Sportster/Buell Model: XLH
Sportster/Buell Year: 1960
Reputation: 31715
sevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to all
Default

Quote:
Originally Posted by Vermonter View Post
oh ya but that is just the sprocket cover, not the cam cover. I just didn't want to see ya open up and drop a cam or something when you don't need to.

but you will have to remove the clutch basket, and primary drive as well.
good, cuz I already took it off.

Removed pipes, right foot peg, kicker & chain.




Manual says you might have to use an all purpose puller to get the sprocket off. So happens I have something like that and so happens I needed it.



had to pry this little guy off


order of clutch rods (as they were anyway)


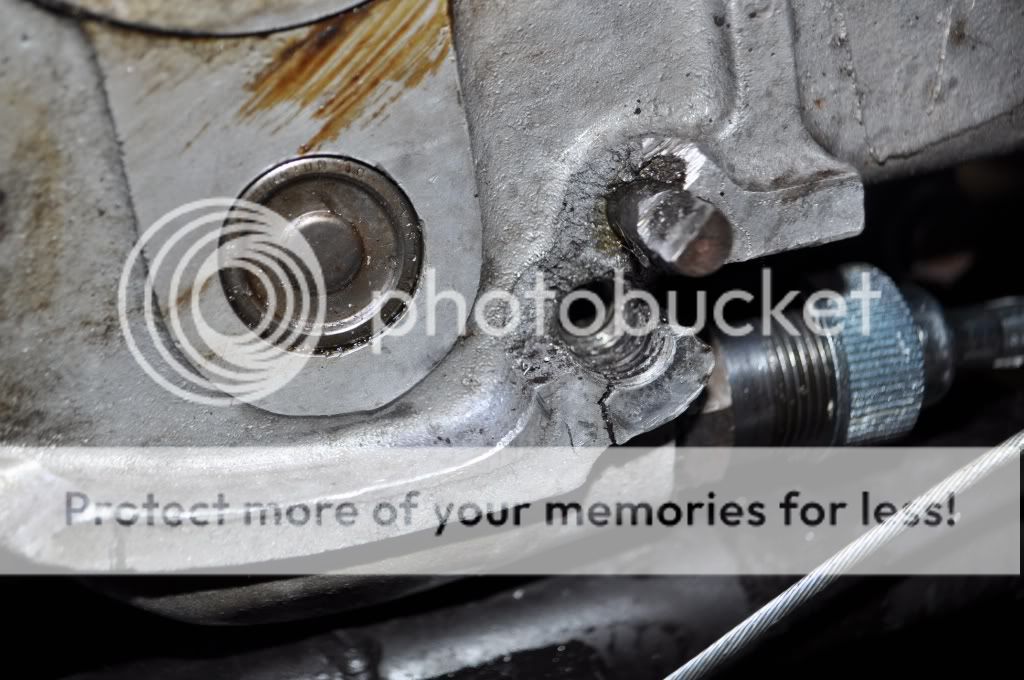

now this can't be good, but it may not be all that bad? Seems these threads are just holding the sprocket cover on? What about that little dowel thingy, what's that do? It's barely in there, I'm guessing it just lines up the cover?

Reply With Quote
  #6
Old 27th June 2012
Monte03's Avatar
Monte03 Monte03 is offline
Senior Master Custom Bike Builder

Join Date: Mar 2008
Posts: 4,740
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1969
Sportster/Buell Model #2: 1966 XLCH
Other Motorcycle Model: BMW Twin
Other Motorcycle Year: 82
Reputation: 73348
Monte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud ofMonte03 has much to be proud of
Default

"now this can't be good, but it may not be all that bad? Seems these threads are just holding the sprocket cover on? What about that little dowel thingy, what's that do? It's barely in there, I'm guessing it just lines up the cover?"

AND it supports the cover as your body weight comes down on the kicker! I hate seeing this, damn early cases are like clay, I'd gunk the hell out of it and look alot deeper in the speedo drive area before your proceed throwing money at the bike... Good Luck
__________________
Cycle World Oct 1962:
'The Sportster XLCH is not every Man's cup of tea - and we don't think it was intended as such'
Reply With Quote
  #7
Old 27th June 2012
chevelle's Avatar
chevelle chevelle is offline
Senior Custom Bike Builder

Join Date: Sep 2007
Posts: 2,772
Sportster/Buell Model: Custom Sputhe XR
Sportster/Buell Year: 19**
Sportster/Buell Model #2: XLCH
Sportster/Buell Year #2: 1965
Reputation: 40082
chevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to beholdchevelle is a splendid one to behold
Default

Quench plug at end of shift fork rod missing.
Gouging on kicker shaft and cover bolt hole and dowel damage. Sprocket too large... What's tooth count?
Think that's your issue, there.
I'm sure you noticed the case weld under upper portion of sprocket cover...
Reply With Quote
  #8
Old 27th June 2012
brucstoudt's Avatar
brucstoudt brucstoudt is offline
Senior Master Custom Bike Builder

Join Date: May 2010
Location: Pottstown PA.
Posts: 12,328
Sportster/Buell Model: xlch
Sportster/Buell Year: 1960
Reputation: 133302
brucstoudt has a brilliant futurebrucstoudt has a brilliant futurebrucstoudt has a brilliant futurebrucstoudt has a brilliant futurebrucstoudt has a brilliant futurebrucstoudt has a brilliant futurebrucstoudt has a brilliant futurebrucstoudt has a brilliant futurebrucstoudt has a brilliant futurebrucstoudt has a brilliant futurebrucstoudt has a brilliant future
Default

transmissions,dont slip,but clutch's do,especially,dry one's,when they get oil on them.it's possible that this is a,clutch issue. plate's do not appear to be oil saturated,but adjustment change,might be,necessary. hate to see you pull the trans.,for a,clutch issue.
__________________
72 1000cc barrels and heads, s&s 41/2'' flywheels, sifton cams, s&s super B w/ zippers thunderjet w/yost powertube, andrews gears,and shafts, competition engineering kevlar wet or dry clutch, 72 oil pump, morris magneto w/auto advance and single fire module, cycle electric generator w/electronic regulator,73 cu.in.
Reply With Quote
  #9
Old 27th June 2012
sevenyears of famine's Avatar
sevenyears of famine sevenyears of famine is offline
Master Mechanic

Join Date: Jan 2009
Location: Peoria, IL
Posts: 254
Sportster/Buell Model: XLH
Sportster/Buell Year: 1960
Reputation: 31715
sevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to allsevenyears of famine is a name known to all
Default

Quote:
Originally Posted by brucstoudt View Post
transmissions,dont slip,but clutch's do,especially,dry one's,when they get oil on them.it's possible that this is a,clutch issue. plate's do not appear to be oil saturated,but adjustment change,might be,necessary. hate to see you pull the trans.,for a,clutch issue.
you messin with me man?
http://xlforum.net/forums/s....php?t=1494612

Quote:
Originally Posted by brucstoudt View Post
yes you have transmission,damage. also it would be wise not to remove that plug again.it'a,steel,plug in an,aluminum case and it will strip out soon.drain the transmission by,removing the,primary cover.
Quote:
Originally Posted by brucstoudt View Post
i,think the damaged pieces,look like,gear dog material,rather than,gear teeth.
Reply With Quote
