Default my rigid frame has my ironhead off-center & off-balance

i guess i should just reiterate that i'm new here and certainly new to these old ironheads. something about this machine has got me fixed with a vision for my project.

i have a custom built paughco rigid frame. wide tire, 38 degree, 2.5" Backbone stretch, 0" dowtube stretch, and a 4" stretch out back to practically drop this thing to the ground.

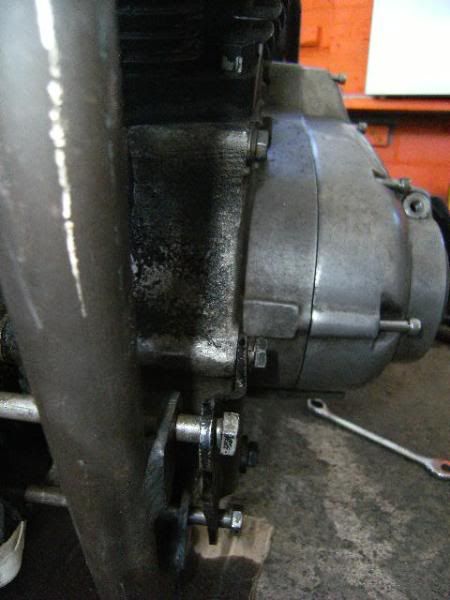

the rear motor mount lined up fine, but when i got to the lower front mounts, i found a problem. the original long ironhead mounts can't be used with this frame. it has tabs to use the later style mounts, also found on the evo. not problem with the length of these, the holes match up fine. the problem can be seen in the pics below. the engine seems to be offset about 1/2" to the left and looks very off-center in the frame.






if you look closely at the L/H motor mount in these shots, it sticks out about 1/2" to the left from the mounting tabs, and the same goes for the R/H mount too.


does anyone have good shots of their ironhead mounts in an aftermarket frame to look at?

is there another rear motor mount that i can use to recenter this thing or has anyone seen this before?? once i have this figured out i will be ready to finish my overhaul of the engine.


thanks in advance everyone!!


- and IronMick, if you think this is in the wrong section please let me know, or move it. thanks!

-Andrew
__________________
'80 XLH - Rigid Wide Tire Ironhead...

Barbie Called, She Wants Her Jeep Back...
Reply With Quote
  #2
Old 10th October 2008
maverick maverick is offline
Master Mechanic

Join Date: May 2008
Posts: 292
Sportster/Buell Model: ironhead
Sportster/Buell Year: 1977
Reputation: 35
maverick is an unknown quantity at this point
Default

Dude you got me, but welcome to the forum, and just keep tuning in I am sure there is someone on here that can help you as this is a very good place for information!
Reply With Quote
  #3
Old 10th October 2008
NewAmerica NewAmerica is offline
Biker

Join Date: Sep 2008
Location: CT
Posts: 55
Sportster/Buell Model: XLH
Sportster/Buell Year: 1980
Other Motorcycle Model: Yamaha XV750
Other Motorcycle Year: 1982
Reputation: 10
NewAmerica is an unknown quantity at this point
Default

i don't know what's wrong with it?? blows my mind. the other thing is that those motor mounts are supposed to be on the inside of the mounting tabs according to paughco...
Reply With Quote
  #4
Old 10th October 2008
Hot Rod Sporty's Avatar
Hot Rod Sporty Hot Rod Sporty is offline
Senior Master Custom Bike Builder

Join Date: Jan 2007
Location: Huntsville, AL
Posts: 4,392
Sportster/Buell Model: XL1200 Custom
Sportster/Buell Year: 2005
Reputation: 66805
Hot Rod Sporty has much to be proud ofHot Rod Sporty has much to be proud ofHot Rod Sporty has much to be proud ofHot Rod Sporty has much to be proud ofHot Rod Sporty has much to be proud ofHot Rod Sporty has much to be proud ofHot Rod Sporty has much to be proud ofHot Rod Sporty has much to be proud ofHot Rod Sporty has much to be proud ofHot Rod Sporty has much to be proud ofHot Rod Sporty has much to be proud of
Default

If it's a custom built frame, I'd say someone f'd up the downtubes during the build... Have you called Paughco?
__________________
________________________________________
PROUD MEMBER OF THE 'IGNORED BY '79' CLUB :banana __________________________________
[SIZE="1"][B]RIP James "Mr. Jimi" Melton - 1947-2008
Godspeed brother.[/B]
________________________________
[B]"Dream as if you'll live forever. Live as if you'll die today."[/B] --James Dean
________________________________
[B]"A narcissist is someone better looking than you are."[/B] --Gore Vidal
________________________________

[B]"I just love the 'mechanicalness' of it"[/B]
--Indian Larry Desmedt[/SIZE]
Reply With Quote
  #5
Old 10th October 2008
Monte03's Avatar
Monte03 Monte03 is offline
Senior Master Custom Bike Builder

Join Date: Mar 2008
Posts: 4,063
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1969
Sportster/Buell Model #2: 1966 XLCH
Other Motorcycle Model: BMW Twin
Other Motorcycle Year: 82
Reputation: 7181
Monte03 is just really niceMonte03 is just really niceMonte03 is just really niceMonte03 is just really niceMonte03 is just really niceMonte03 is just really niceMonte03 is just really niceMonte03 is just really niceMonte03 is just really niceMonte03 is just really niceMonte03 is just really nice
Default

Favor the Rear Motor Mount First pulled up tight with the bolts in place, if that meets up clean with the Rear wheel then you need to make up the spacer 'Gap' on the front , if you notice an early Sportster frame it is offset,
a fairly easy job for a Machinist/Welder once the measurements are take,
Hey Dude Welcome to Customizing!
Reply With Quote
Know Thy Hog

  #6
Old 11th October 2008
NewAmerica NewAmerica is offline
Biker

Join Date: Sep 2008
Location: CT
Posts: 55
Sportster/Buell Model: XLH
Sportster/Buell Year: 1980
Other Motorcycle Model: Yamaha XV750
Other Motorcycle Year: 1982
Reputation: 10
NewAmerica is an unknown quantity at this point
Default

hot rod sporty - i haven't called paughco yet. but probably should.


monte - i had the rear mount tight before i did the front. i'm going to line up the rear wheel and put the chain on it in the morning. according to paughco it is supposed to fit my 180 tire without using an offset sprocket. if it works i'll leave it, if it doesn't then it will have to be modified. thanks for the advice!
Reply With Quote
  #7
Old 11th October 2008
Campsurf Campsurf is offline
Senior Chief Know It All

Join Date: Aug 2007
Posts: 871
Sportster/Buell Model: XLCH
Sportster/Buell Year: 1970
Other Motorcycle Model: Triumphs
Other Motorcycle Year: 1964
Reputation: 2626
Campsurf is a jewel in the roughCampsurf is a jewel in the roughCampsurf is a jewel in the roughCampsurf is a jewel in the roughCampsurf is a jewel in the roughCampsurf is a jewel in the roughCampsurf is a jewel in the roughCampsurf is a jewel in the roughCampsurf is a jewel in the roughCampsurf is a jewel in the roughCampsurf is a jewel in the rough
Default

Welcome to the forum;

Monte03 is right, you have to have the rear snugged up first. Take some pics of the rear.. it also appears your mounts are not stock. I suspect that it is a tight fit and you haven't finessed it enough. Once you have the rear snugged up, study it. The first time I did a stock mount I didn't get it right and I remained miffed until I stepped back and went at it a little differently.

Is the engine offset to allow for the wheel? Very interesting.

Jim
Reply With Quote
  #8
Old 11th October 2008
snowman's Avatar
snowman snowman is offline
Senior Master Custom Bike Builder

Join Date: Dec 2005
Location: Saline, MI
Posts: 10,012
Sportster/Buell Model: Gone...
Sportster/Buell Year: 2008
Other Motorcycle Model: The Beast (M109R)
Other Motorcycle Year: 2006
Reputation: 86254
snowman has much to be proud ofsnowman has much to be proud ofsnowman has much to be proud ofsnowman has much to be proud ofsnowman has much to be proud ofsnowman has much to be proud ofsnowman has much to be proud ofsnowman has much to be proud ofsnowman has much to be proud ofsnowman has much to be proud ofsnowman has much to be proud of
Default

Set up the rear first, like the others said. Then if it's not right, call Jason at Paughco and tell him what you have...

Welcome to the forum from Michigan!!!
__________________
--Russ--
U.S. Army Veteran

***RIP***
--Mr. JIMI
--JOHNNY G
--BryanEOD
Reply With Quote
  #9
Old 11th October 2008
miller's Avatar
miller miller is offline
Chief Know It All

Join Date: Nov 2004
Location: Sioux Falls, SD
Posts: 432
Sportster/Buell Model: XL 1200
Sportster/Buell Year: 2000
Other Motorcycle Model: Honda Trail 70
Other Motorcycle Year: 1970
miller has disabled reputation
Default

Sportster motors don't sit square in the middle of the frame, and from the pics yours doesn't look too bad. I have read about several people having to make motor mounts for Paughco frames, and you might end up having to go that route.
Reply With Quote
  #10
Old 11th October 2008
54-FLE 54-FLE is offline
Chief Know It All

Join Date: Mar 2007
Posts: 414
Sportster/Buell Model: Sportster XL
Sportster/Buell Year: 1982
Sportster/Buell Model #2: 1981 XLH
Sportster/Buell Year #2: 1982
Reputation: 347
54-FLE is on a distinguished road54-FLE is on a distinguished road54-FLE is on a distinguished road54-FLE is on a distinguished road
Default

When I mounted my engine in my frame I had the same problem only worst. I had to cut out the back mounting plate all together and got a new one from the frame manufacture then bolted the new plate to the rear mount and then set it all in the frame until all was a perfect fit and then tack welded the plate, removed the engine and took it to a welder for tigging. I then had to cut spacers for the front to line up. Like already mentioned welcome to the world of bike building/fabrication, I don't remember too many things that actually just bolted up like its suppose to.
Reply With Quote
