  #81
Old 26th June 2012
gungatim's Avatar
gungatim gungatim is offline
Harley Engineer

Join Date: Dec 2010
Posts: 335
Sportster/Buell Model: XLH
Sportster/Buell Year: 79
Other Motorcycle Model: Yamaha TX500
Other Motorcycle Year: 74
Reputation: 1043
gungatim has a spectacular aura aboutgungatim has a spectacular aura aboutgungatim has a spectacular aura aboutgungatim has a spectacular aura aboutgungatim has a spectacular aura aboutgungatim has a spectacular aura aboutgungatim has a spectacular aura aboutgungatim has a spectacular aura about
Default

the parts manual has the exploded view, from inside the case, on the kicker shaft the order is: Nut, Lockwasher, Gear, Engine case, Seal (square O-ring), washer, Thrust plate, then the sprlcket cover, spring, arm, etc.

PN for seal is 11101 for my '79 I can only assume they are same for most years but not sure. You can usually re-use the seal on the plug you removed from the kicker hole if it is not damaged.
__________________
Nolite Te Bastardes Carborundorum!
Reply With Quote
  #82
Old 26th June 2012
ppetersan ppetersan is offline
Biker

Join Date: Nov 2011
Posts: 17
Sportster/Buell Model: XL
Sportster/Buell Year: 1974
Reputation: 2454
ppetersan is a jewel in the roughppetersan is a jewel in the roughppetersan is a jewel in the roughppetersan is a jewel in the roughppetersan is a jewel in the roughppetersan is a jewel in the roughppetersan is a jewel in the roughppetersan is a jewel in the roughppetersan is a jewel in the roughppetersan is a jewel in the roughppetersan is a jewel in the rough
Default

What a great turorial. I am one of the people who have been if there is any information on this exact procedure. I have the same bike as well. I may be pm'ing you to ask questions when I get this going - but probably a winter project for me.
Reply With Quote
  #83
Old 29th June 2012
74_XLH_WINCHESTER_VA's Avatar
74_XLH_WINCHESTER_VA 74_XLH_WINCHESTER_VA is offline
Drag Race Champion

Join Date: Aug 2008
Location: Eastern Panhandle, WV
Posts: 392
Sportster/Buell Model: XLH
Sportster/Buell Year: 1974
Other Motorcycle Model: Sears/Gilera 106SS
Other Motorcycle Year: 196?
Reputation: 4438
74_XLH_WINCHESTER_VA is just really nice74_XLH_WINCHESTER_VA is just really nice74_XLH_WINCHESTER_VA is just really nice74_XLH_WINCHESTER_VA is just really nice74_XLH_WINCHESTER_VA is just really nice74_XLH_WINCHESTER_VA is just really nice74_XLH_WINCHESTER_VA is just really nice74_XLH_WINCHESTER_VA is just really nice74_XLH_WINCHESTER_VA is just really nice74_XLH_WINCHESTER_VA is just really nice74_XLH_WINCHESTER_VA is just really nice
Default

Quote:
Originally Posted by ironman74 View Post
12. Install the new Oil Seal on the back side of the case. This is a little tricky to get in, but I managed to get it installed using two long straight screw drivers and a little bit of patients. Just get one side in and work your way around.

Do you know the part number of this oil seal? When you say "back side of the case" do you mean that ths
seal is installed from the inside of the case? In picture 12 it is hard to see a seal


in picture 13 you show the shaft, the shim and another seal. Are there two seals? One at the inside of
the case and the one from picture 13 which is on the outside of the case.

Is there a source here on xlforum that shows the assembly and part numbers?

Thank you very much,
Mark
Quote:
"Do you know the part number of this oil seal?"
- I don't have my parts book in front of me at this time, so I am not sure of the part number for that oil seal.

Quote:
"When you say "back side of the case" do you mean that this seal is installed from the inside of the case? In picture 12 it is hard to see a seal."
- No, the seal is installed into the outside of the case through the pass through hole in the motor mount. The top picture in step 12 is the inside of the case looking through to the outside, you can see the lip of the seal just beyond the bronze bushing. The bottom picture in step 12 is the outside of the case looking through the pass through hole in the motor mount the black inside of the silver-looking ring is the oil seal.

Quote:
"In picture 13 you show the shaft, the shim and another seal. Are there two seals? One at the inside of the case and the one from picture 13 which is on the outside of the case."
- No, the photo in step 13 is to show order of installation. The oil seal is the same seal as installed in step 12 into the outside of the case, then comes the .007 shim, then the thrust plate, then the kicker shaft.

Quote:
"Is there a source here on xlforum that shows the assembly and part numbers?"
- I am not sure. This thread is my source for the assembly, and as for part numbers I can see if I can get that info for you or you can pick up a parts book online or at your local shop. The kit that I installed was a complete kit from J&P Cycles as said at the top of the very first post.


K.C.
Reply With Quote
  #84
Old 6th April 2013
shooterj2003 shooterj2003 is offline
Chief Harley Engineer

Join Date: Jul 2012
Posts: 567
Sportster/Buell Model: xlh 1000
Sportster/Buell Year: 1977
Reputation: 29656
shooterj2003 is a name known to allshooterj2003 is a name known to allshooterj2003 is a name known to allshooterj2003 is a name known to allshooterj2003 is a name known to allshooterj2003 is a name known to allshooterj2003 is a name known to allshooterj2003 is a name known to allshooterj2003 is a name known to allshooterj2003 is a name known to allshooterj2003 is a name known to all
Default

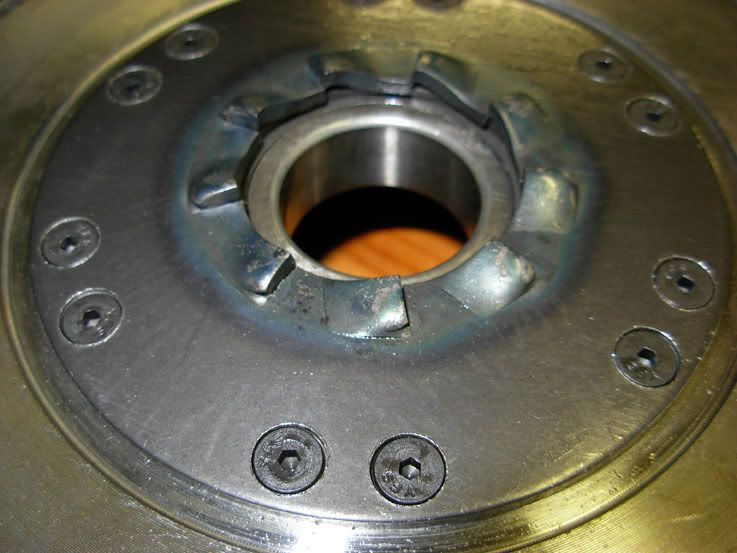

I guess you feel secure with threaded fasteners over rivets? We're they screws of special type,eg,stainless,grade 8 etc. and I would guess locktite is used.I've alway's heard rivets were called for-I would not want even one screw backing out!
Reply With Quote
  #85
Old 6th April 2013
brianbbs67's Avatar
brianbbs67 brianbbs67 is offline
Endeavoring to Persevere

Join Date: Jul 2011
Posts: 3,375
Sportster/Buell Model: xlch
Sportster/Buell Year: 1961
Sportster/Buell Model #2: Xl 883n
Sportster/Buell Year #2: 2010
Reputation: 116378
brianbbs67 has much to be proud ofbrianbbs67 has much to be proud ofbrianbbs67 has much to be proud ofbrianbbs67 has much to be proud ofbrianbbs67 has much to be proud ofbrianbbs67 has much to be proud ofbrianbbs67 has much to be proud ofbrianbbs67 has much to be proud ofbrianbbs67 has much to be proud ofbrianbbs67 has much to be proud ofbrianbbs67 has much to be proud of
Default

Red lock tite and grade eight, I believe. I plan to do mine the same way. Gets rid of out of center slipping kicker for good. Well until everything else around it wears out.
Reply With Quote
Know Thy Hog

  #86
Old 9th March 2014
kelticdodge kelticdodge is offline
Biker

Join Date: Mar 2013
Posts: 6
Sportster/Buell Model: sportster
Sportster/Buell Year: 1976
Reputation: 10
kelticdodge is an unknown quantity at this point
Default Rachet plate to clutch shell

I read your post ,outstanding pictures,How much would you charge to replace a riveted rachet plate with screws ? I am new to this site and my computor skills suck like a vacum cleaner . You can email me at kelticdodge@aol.com Thanks,Tom.
Reply With Quote
  #87
Old 17th March 2014
Twisted Nightster's Avatar
Twisted Nightster Twisted Nightster is offline
Know It All

Join Date: Jul 2007
Location: Lafayette, La
Posts: 179
Sportster/Buell Model: IRONHEAD
Sportster/Buell Year: 1974
Other Motorcycle Model: ROAD GLIDE
Other Motorcycle Year: 2006
Reputation: 10
Twisted Nightster is an unknown quantity at this point
Default

would welding up the kicker gear (rivet holes) to the back of the clutch plate work? Any thoughts on welding this then grinding if necessary to smooth flat instead of drilling holes? i just got a complete kit to install on my 74 xlch
__________________
...........Don't take LIFE to Seriously, YOU will NEVER make it out ALIVE...........
Reply With Quote
  #88
Old 4 Weeks Ago
ryder rick's Avatar
ryder rick ryder rick is offline
Senior Master Custom Bike Builder

Join Date: Jun 2008
Location: Cornelius, OR
Posts: 4,791
Reputation: 8184
ryder rick is a glorious beacon of lightryder rick is a glorious beacon of lightryder rick is a glorious beacon of lightryder rick is a glorious beacon of lightryder rick is a glorious beacon of lightryder rick is a glorious beacon of lightryder rick is a glorious beacon of lightryder rick is a glorious beacon of lightryder rick is a glorious beacon of lightryder rick is a glorious beacon of lightryder rick is a glorious beacon of light
Default



Your masterlink clip is pointed the wrong direction....
__________________
Ryder Rick "This is my brain on Ironhead"
Reply With Quote
  #89
Old 4 Weeks Ago
dondoucette's Avatar
dondoucette dondoucette is offline
XL FORUM TEAM MEMBER

Join Date: Sep 2011
Posts: 67
Sportster/Buell Model: XLH
Sportster/Buell Year: 1976
Other Motorcycle Model: Fatboy Lo
Other Motorcycle Year: 2011
Reputation: 3712
dondoucette is a jewel in the roughdondoucette is a jewel in the roughdondoucette is a jewel in the roughdondoucette is a jewel in the roughdondoucette is a jewel in the roughdondoucette is a jewel in the roughdondoucette is a jewel in the roughdondoucette is a jewel in the roughdondoucette is a jewel in the roughdondoucette is a jewel in the roughdondoucette is a jewel in the rough
Default

Quote:
Originally Posted by Twisted Nightster View Post
would welding up the kicker gear (rivet holes) to the back of the clutch plate work? Any thoughts on welding this then grinding if necessary to smooth flat instead of drilling holes? i just got a complete kit to install on my 74 xlch
I had mine drilled and tapped.
Reply With Quote
  #90
Old 4 Weeks Ago
Twisted Nightster's Avatar
Twisted Nightster Twisted Nightster is offline
Know It All

Join Date: Jul 2007
Location: Lafayette, La
Posts: 179
Sportster/Buell Model: IRONHEAD
Sportster/Buell Year: 1974
Other Motorcycle Model: ROAD GLIDE
Other Motorcycle Year: 2006
Reputation: 10
Twisted Nightster is an unknown quantity at this point
Default

ok so i drilled the holes for the gear and taped for bolts. Got the primary back together minus the cover and i attempted to turn the kicker on the pedal side and there is no give on the kicker arm with a wrench. I am just trying to get it to turn just a little so that i can feel more comfortable before putting covers on. The Trans was in Neutral when i tried. Does this sound normal just after a new equipment installed kicker? they where new parts never installed on 74 xlch. thanks
Reply With Quote
