Default Shunt vs. Series Voltage Regulators.

Hey gang, after seeing this post

http://xlforum.net/vbportal/forums/s...09#post4463909

about stators getting whacked I investigated and used Aaron's from Hammer Performance recomendation about using a series regulator rather than the OEM shunt regulator our Sportys come with. I purchased a Cycle Electric series regulator from Hammer Performance and I will get it tomorrow and install it this weekend.

The difference between, a shunt regulator like our OEM and a series regulator is that the shunt regulator bypasses or "shunts" unused AC current from the stator to ground, even if our bike's system doesn't need the supplied AC current after rectification and regulation for charging the battery or running the lights, ignition, etc. That means the stator is always working "balls to the wall" and putting out max current...some to the DC system after the regulator rectifies and regulates it and the rest to ground.

I wanted to see this in action so I borrowed this from work...

a Fluke AC/DC clamp meter.



It has clamp jaws that are attached, or can be removed for remote measuring. Pretty cool!




I started the bike, (it was already warmed up from my ride home), and clamped the meter's jaws on to one of the AC leads coming from the stator to the OEM shunt rectifier.



I let the bike run for a minute to get the battery voltage up to 13.9 VDC so the only load on the regulator was the lights and ignition...about 9 amps. At idle, (around 950 rpm), the stator was already putting out more than the bike needed and shunting the rest to ground.



When I ran the RPMs up to over 2000, the stator was at full output, about 26 amps.



So, the OEM shunt regulator works as adverised and keeps the stator busy all the time.

The new series regulator I'm getting will only use what is needed by the DC system and let the stator breathe easy when it doesn't need to work so hard.

After the install I will post my findings and pics of the series regulator in action.
__________________
Jester Mafia Member * TC88A Ignition With Rico's Jester III Map *
Reply With Quote
  #2
Old 21st June 2013
aswracing's Avatar
aswracing aswracing is offline
A Million Facts & Figures

Join Date: Jan 2005
Location: The Center of the Sportster Performance Universe
Posts: 7,902
Sportster/Buell Model: XL883
Sportster/Buell Year: 2007
Sportster/Buell Model #2: Buell Cyclone
Sportster/Buell Year #2: 1999
Reputation: 248770
aswracing has a brilliant futureaswracing has a brilliant futureaswracing has a brilliant futureaswracing has a brilliant futureaswracing has a brilliant futureaswracing has a brilliant futureaswracing has a brilliant futureaswracing has a brilliant futureaswracing has a brilliant futureaswracing has a brilliant futureaswracing has a brilliant future
Default

Good info Lux, thanks for sharing. I'm looking forward to the same measurements with the series regulator.
__________________
Click Here to Contact Me

Reply With Quote
  #3
Old 21st June 2013
Bob s hog's Avatar
Bob s hog Bob s hog is offline
Custom Bike Builder

Join Date: May 2011
Location: spencerville
Posts: 2,231
Sportster/Buell Model: sportster
Sportster/Buell Year: 2003
Sportster/Buell Model #2: 1200 xl sportster custom
Sportster/Buell Year #2: 03
Other Motorcycle Model: 1200 low sportster
Other Motorcycle Year: 06
Reputation: 21839
Bob s hog is a name known to allBob s hog is a name known to allBob s hog is a name known to allBob s hog is a name known to allBob s hog is a name known to allBob s hog is a name known to allBob s hog is a name known to allBob s hog is a name known to allBob s hog is a name known to allBob s hog is a name known to allBob s hog is a name known to all
Default

a crap I knew I for got to do something. but I did test it at idle will get more info for you but at my batt volts were 14.4 at idle 1000 rpm didn't do a amp test just yet but I will can fell a hp improvement thought weathere it be the new stater or both the new reg and stater but the bike runs smother and faster or im crazy.
Reply With Quote
  #4
Old 21st June 2013
Rico 05R's Avatar
Rico 05R Rico 05R is offline
JESTER SYNDICATE

Join Date: Feb 2006
Location: Indian Territory
Posts: 11,502
Sportster/Buell Model: NRHS Stage II 1250-R
Sportster/Buell Year: 2005
Reputation: 1105393
Rico 05R has a reputation beyond reputeRico 05R has a reputation beyond reputeRico 05R has a reputation beyond reputeRico 05R has a reputation beyond reputeRico 05R has a reputation beyond reputeRico 05R has a reputation beyond reputeRico 05R has a reputation beyond reputeRico 05R has a reputation beyond reputeRico 05R has a reputation beyond reputeRico 05R has a reputation beyond reputeRico 05R has a reputation beyond repute
Default

Scott...what's the Cycle Electric Part#?
__________________
Reply With Quote
  #5
Old 21st June 2013
LuxBlue's Avatar
LuxBlue LuxBlue is offline
Senior Master Custom Bike Builder

Join Date: Nov 2004
Location: South of Lancaster, PA
Posts: 4,052
Sportster/Buell Model: XL 1200 Custom
Sportster/Buell Year: 2004
Reputation: 287876
LuxBlue has a reputation beyond reputeLuxBlue has a reputation beyond reputeLuxBlue has a reputation beyond reputeLuxBlue has a reputation beyond reputeLuxBlue has a reputation beyond reputeLuxBlue has a reputation beyond reputeLuxBlue has a reputation beyond reputeLuxBlue has a reputation beyond reputeLuxBlue has a reputation beyond reputeLuxBlue has a reputation beyond reputeLuxBlue has a reputation beyond repute
Default

Quote:
Originally Posted by Rico 05R View Post
Scott...what's the Cycle Electric Part#?
Hey Rico!

Sorry, I seemed to have misplaced the actual Cycle Electric Part #. I'll post it here tonight when I get the regulator, provided it's stamped on somewhere or on the packaging.

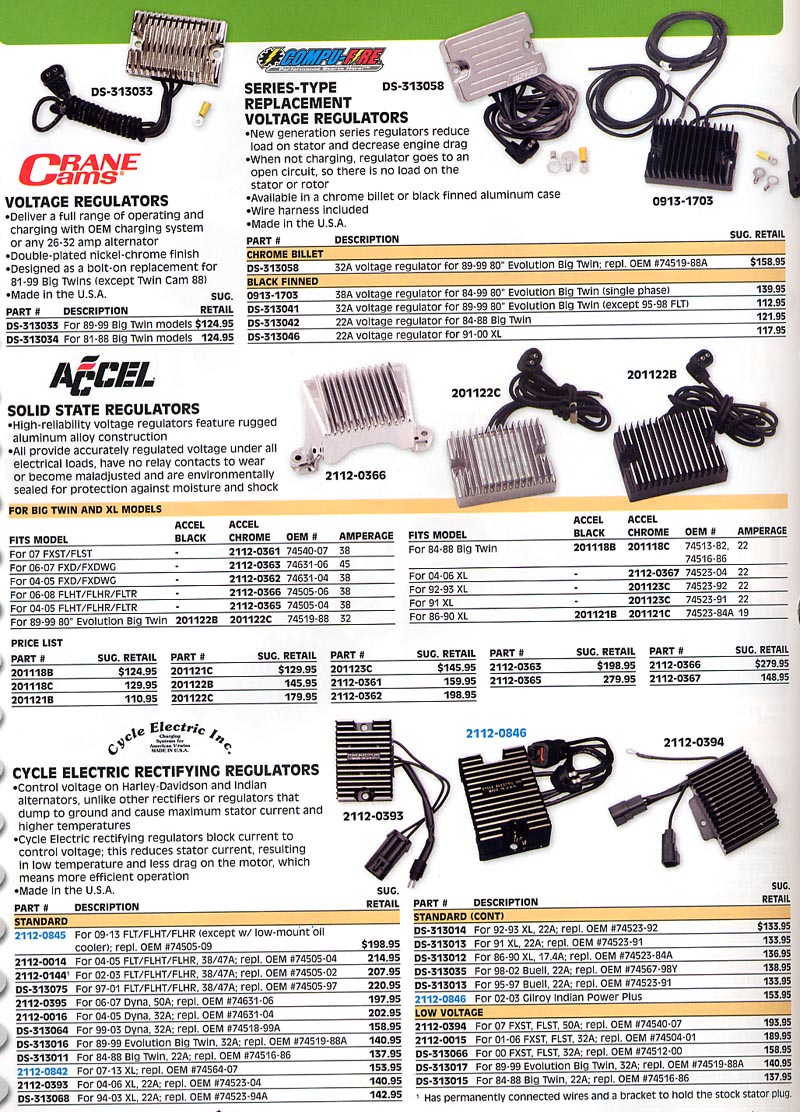

If you order from Hammer Performance, the part # is 2112-0393. That's what I used when I ordered. See below:
